DS70

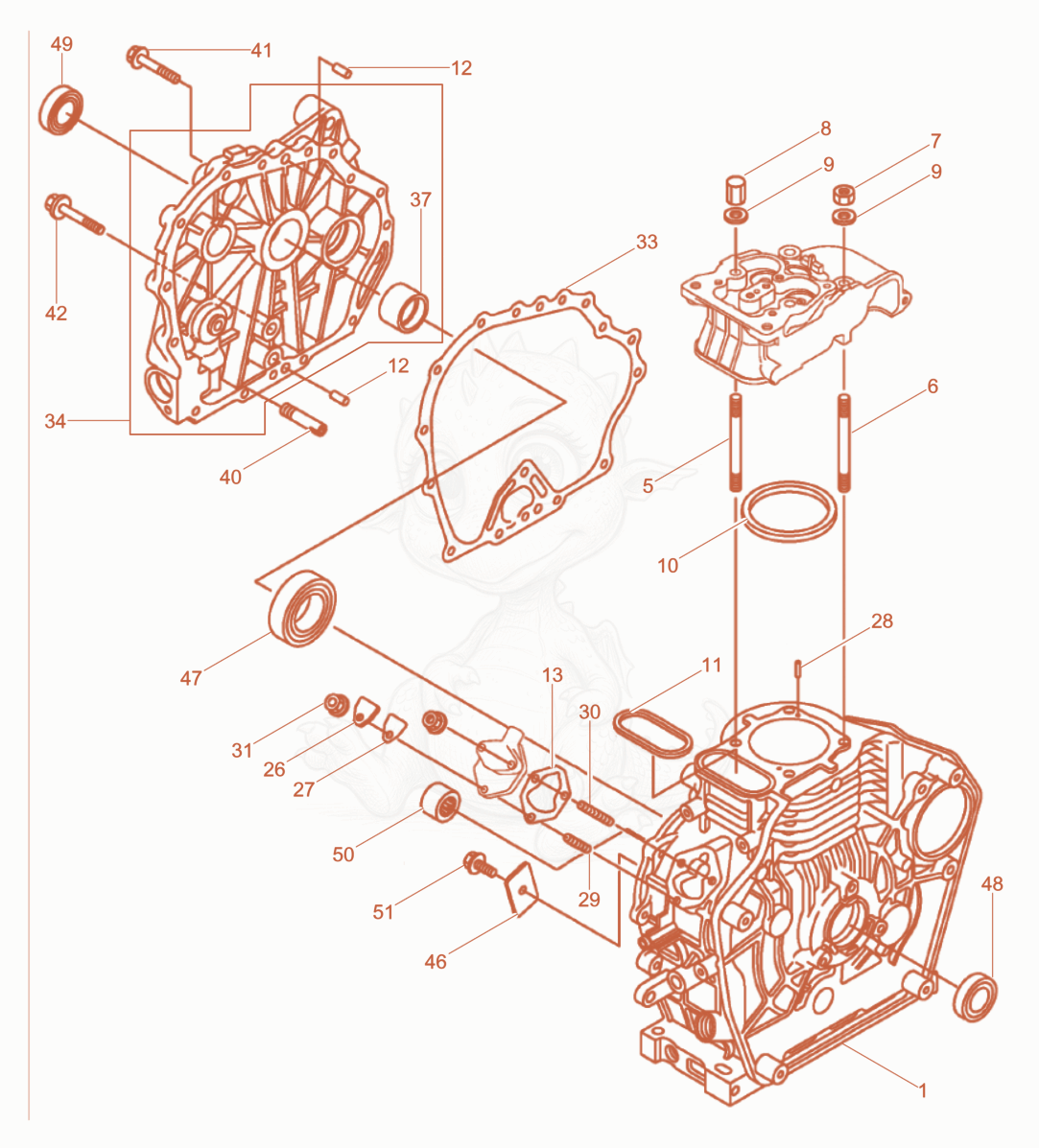

DS70Y13INLRC Cylinder housing Diagram

Exploded parts diagram of the Cylinder housing of a Wacker Neuson DS70Y13INLRC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100077338Not stocked
    Crankcase×1
  • 55000213220
    $2.99
    Bolt - 5000213220×2
  • 65000213221
    $2.97
    Bolt - 5000213221×2
  • 75100061679
    $3.01
    Hexagon nut - 5100061679×2
  • 85000213222
    $3.44
    Cap - 5000213222×2
  • 95000073601
    $11.28
    Washer - 5000073601×4
  • 105100077339Not stocked
    Cylinder head gasket×1
  • 115000213223Not stocked
    O-Ring×1
  • 125000213226
    $1.75
    Pin - 5000213226×2
  • 135000210485
    $43.49
    SHIM SET - 5000210485×1
  • 265000210486
    $2.65
    COVER,FO PUMP - 5000210486×1
  • 275000210614Not stocked
    Gasket×1
  • 285000119715
    $2.75
    PIN-STRAIGHT 4 X 8 - 5000119715×2
  • 295000119720
    $2.28
    STUD-M6 X 18 - 5000119720×1
  • 305000119721
    $2.33
    STUD-M6 X 22 - 5000119721×2
  • 315000119722
    $2.61
    NUT-M6 - 5000119722×3
  • 335000213224
    $17.18
    GASKET-CRANKCASE - 5000213224×1
  • 345100061691Not stocked
    Crankcase Cover×1
  • 375100060809
    $7.95
    BEARING-SLEEVE,30MM ID - 5100060809×1
  • 375100061695
    $258.63
    Slide bearing 0,25 - 5100061695×2
  • 375100061696
    $519.27
    Slide bearing 0,5 - 5100061696×1
  • 405000210490
    $8.05
    PIPE,L.O.INLET - 5000210490×1
  • 415000073614
    $1.39
    SCREW M6 X 25,HX.FLANGE - 5000073614×14
  • 425000085522
    $2.33
    SCREW M8 X 35,HEX.FLANGE - 5000085522×1
  • 465000119726
    $3.39
    holder - 5000119726×1
  • 475000085599
    $44.53
    BEARING - 5000085599×1
  • 485000119727
    $8.71
    SEAL-OIL - 5000119727×1
  • 495000073620
    $8.53
    SEAL-SHAFT 25 X 41.2 X 8,4B - 5000073620×1
  • 505000073621
    $24.28
    BEARING-NEEDLE ROLLER,152112 - 5000073621×1
  • 515000073622
    $2.07
    SCREW M8 X 12,HX.FLANGE - 5000073622×1
