DS70

DS70Y13INLRC Guiding frame cpl. Diagram

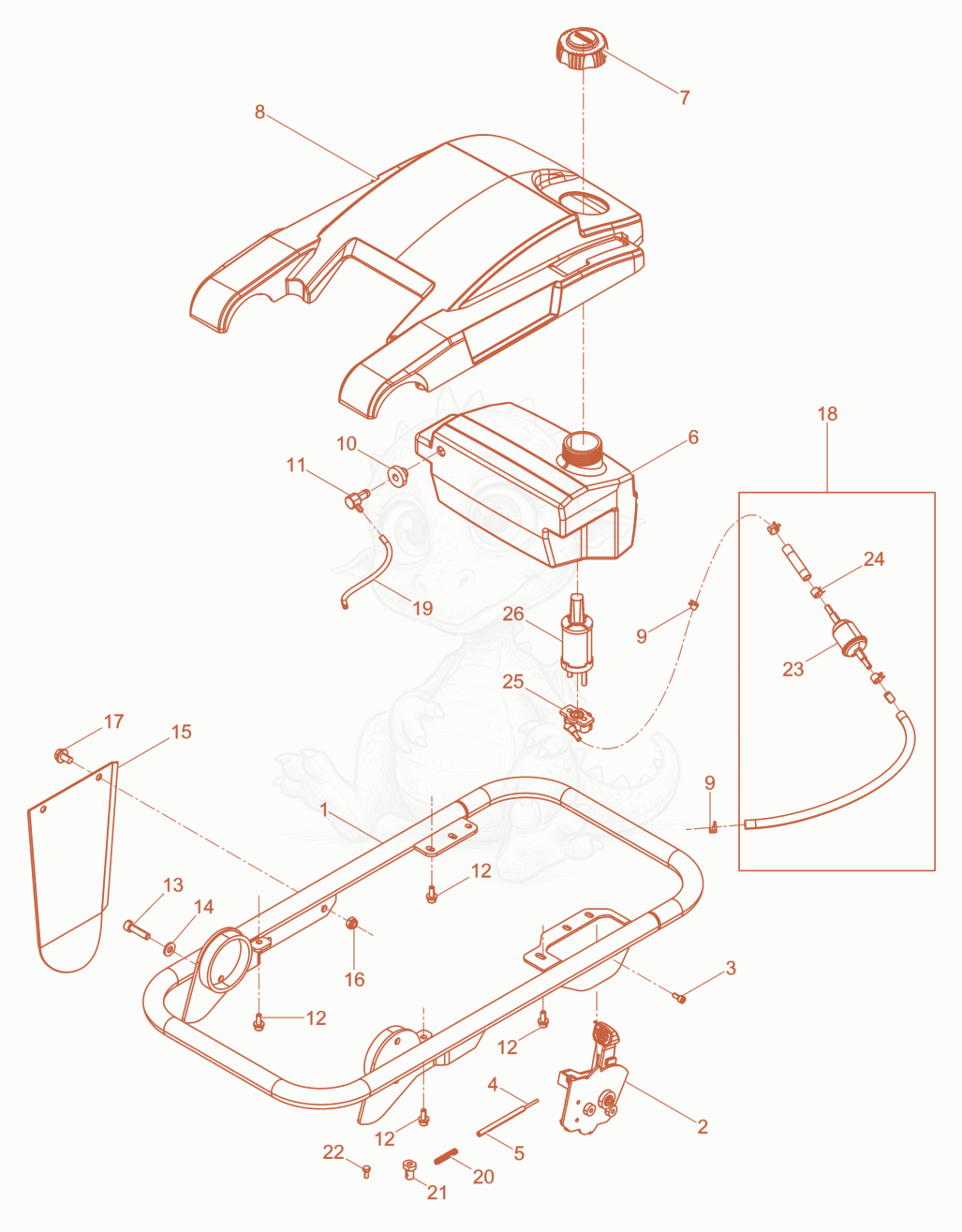

Exploded parts diagram of the Guiding frame cpl. of a Wacker Neuson DS70Y13INLRC, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100060041
    $566.91
    Guide Handle - 5100060041×1
  • 25100037588
    $127.59
    Throttle Control cpl. - 5100037588×1
  • 35000043307
    $0.13
    SCREW M5 X 12 SOC.HD. - 5000043307×2
  • 45100037613
    $6.37
    Bowden cable - 5100037613×1
  • 55100037614
    $40.38
    outer bowden cable - 5100037614×1
  • 65100077981Not stocked
    Fuel tank×1
  • 75000104093
    $19.47
    CAP-FUEL TANK - 5000104093×1
  • 85100032257
    $226.57
    Cover EU - 5100032257×1
  • 95000114073
    $0.23
    CLAMP-HOSE - 5000114073×2
  • 105100032258
    $3.28
    Bush - 5100032258×1
  • 115100066546
    $1.33
    Connecting nipple - 5100066546×1
  • 125000160861
    $0.40
    SCREW M6X16 SC HD,W/WASHER,SEM - 5000160861×8
  • 135200023260Not stocked
    Screw×4
  • 145000033198
    $0.32
    WASHER-LOCK B8 - 5000033198×4
  • 155100031908
    $90.38
    Guard plate - 5100031908×1
  • 165000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 175100011432
    $0.31
    Hexagonal head cap screw M8x14 - 5100011432×2
  • 185100037529
    $28.08
    Fuel pipe cpl. - 5100037529×1
  • 195100037610
    $14.08
    Fuel hose - 5100037610×1
  • 205100040147
    $14.65
    Compression spring 1,00x4,80x30,00 - 5100040147×1
  • 215000212532
    $3.89
    NIPPLE,SCREW-IN - 5000212532×1
  • 225000124429
    $0.13
    hexagonal head cap screw - 5000124429×1
  • 235100022620
    $4.61
    Fuel Filter - 5100022620×1
  • 245000114201
    $0.26
    CLAMP-HOSE 3/16 - 5000114201×3
  • 255100059739
    $38.86
    Fuel cock cpl. - 5100059739×1
  • 265000217895
    $38.43
    fuel filter - 5000217895×1
