DT12

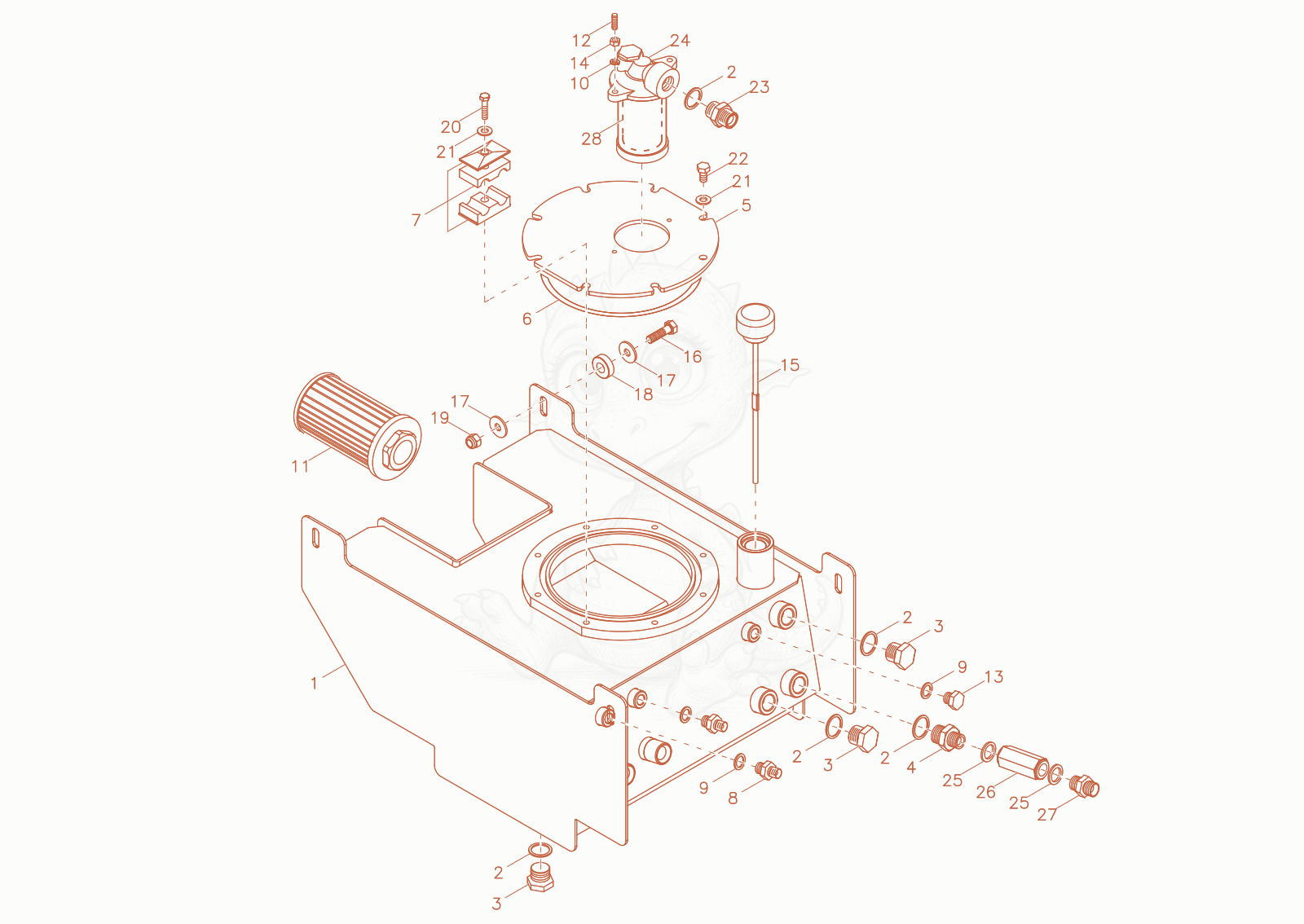

DT12P hydraulic tank Diagram
- 11000352389Not stockedhydraulic tank×1
- seal plate - 1000271906×4
- LOCK PLUG - 1000270659×3
- Adapter 3/4"BSP-1/2"BSP - 1000281845×1
- Cover 1000278815×1
- o-ring - 1000272224×1
- HOSE CLAMP - 1000272089×2
- ADAPTER - 1000270696×2
- WASHER - 1000273277×3
- 101000015444Not stockedspring washer×2
- 111000322450Not stockedoil filter×1
- screw - 1000350855×2
- LOCK PLUG - 1000270638×1
- 141000015405Not stockedhexagon nut×2
- oil filler screw - 1000272077×1
- 161000015343Not stockedhex screw×2
- WASHER - 1000271815×4
- Washer - 1000270734×2
- hexagon nut - 1000269279×2
- 201000015380Not stockedhex screw×2
- WASHER - 1000350861×8
- HEX SCREW - 1000085382×6
- DOUBLE NIPPLE - 1000270646×1
- Oil Filter - 1000272187×1
- SEAL RING - 1000273278×2
- non return valve - 1000277050×1
- DOUBLE NIPPLE - 1000270645×1
- filter insert - 1000280013×1
