DT12

DT12P petrol engine Diagram

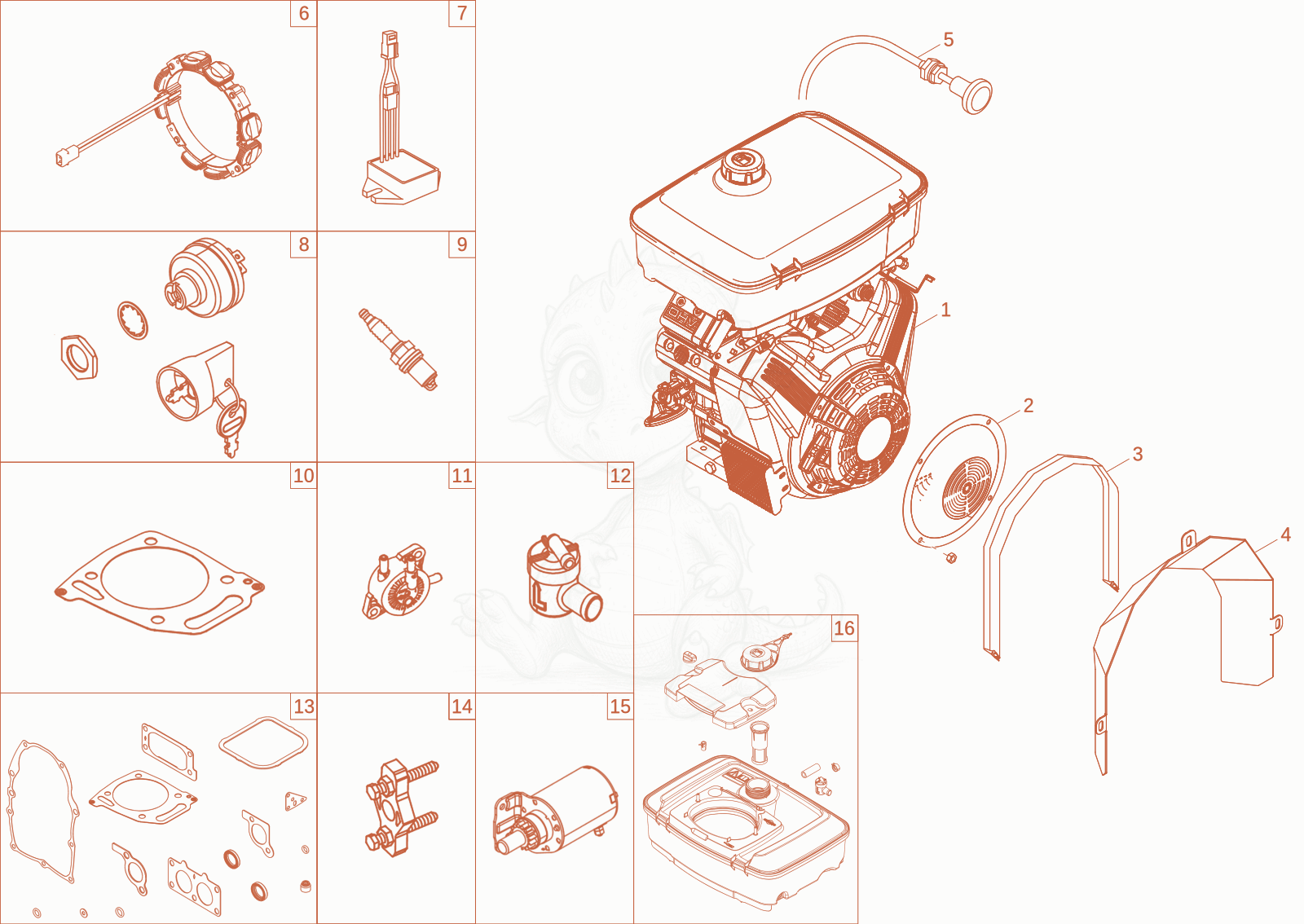

Exploded parts diagram of the petrol engine of a Wacker Neuson DT12P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000525764Not stocked
    petrol engine×1
  • 21000525590
    $114.86
    bracket - 1000525590×1
  • 31000525654
    $38.44
    SEAL - 1000525654×1
  • 41000525700
    $477.01
    air guide plate - 1000525700×1
  • 51000525707
    $177.18
    RECOIL STARTER - 1000525707×1
  • 61000525338Not stocked
    generator×1
  • 71000525347
    $124.66
    TENSION REGULATOR - 1000525347×1
  • 81000525465
    $5.39
    starter switch - 1000525465×1
  • 91000525351
    $6.74
    spark plug - 1000525351×1
  • 101000525350
    $45.39
    Cylinder head seal - 1000525350×1
  • 111000525476Not stocked
    fuel pump×1
  • 121000525475Not stocked
    fuel filter×1
  • 131000525466Not stocked
    seal kit×1
  • 141000525474
    $36.00
    pulling-off device FLYWHEEL - 1000525474×1
  • 151000525471Not stocked
    starter×1
  • 161000545516
    $623.41
    fuel tank - 1000545516×1
