DV100-2

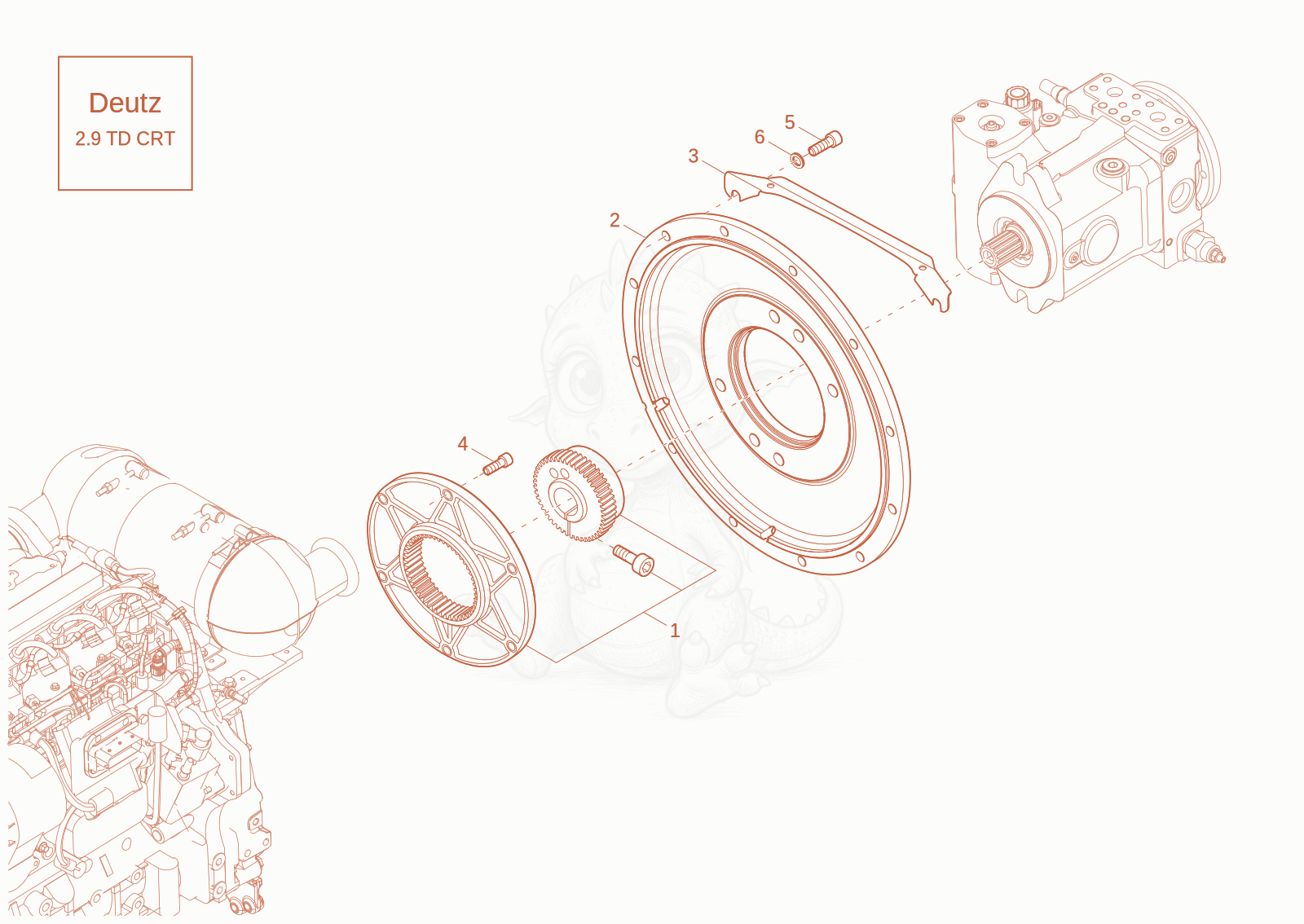

DV100-2 HYDRAULIC PUMP DRIVE Diagram

Exploded parts diagram of the HYDRAULIC PUMP DRIVE of a Wacker Neuson DV100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000236254
    $213.17
    Coupling 1000236254×1
  • 21000475399Not stocked
    pump carrier×1
  • 31000397150
    $18.60
    BRACKET - 1000397150×1
  • 41000022386Not stocked
    cheese head screw×6
  • 51000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×12
  • 61000015449Not stocked
    northlock disc×12
