DV100-2

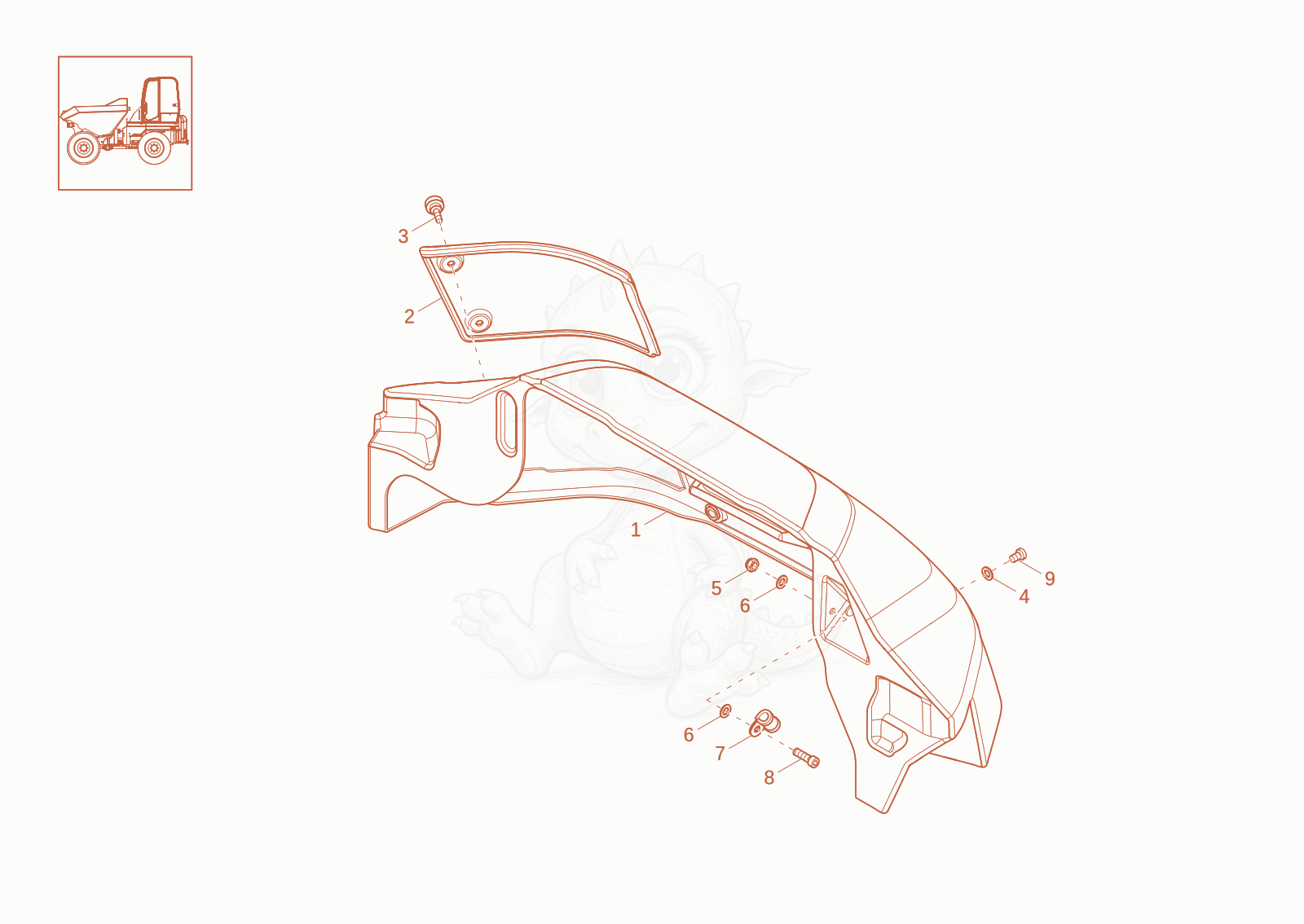

DV100-2 COVERING Diagram

Exploded parts diagram of the COVERING of a Wacker Neuson DV100-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000391272
    $1,124.87
    Cover - 1000391272×1
  • 21000391246
    $275.35
    Cover - 1000391246×1
  • 31000278207
    $8.13
    grooved screw - 1000278207×2
  • 41000095341
    $1.16
    WASHER - 1000095341×5
  • 51000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×1
  • 61000015430Not stocked
    u-washer×2
  • 71000032218Not stocked
    pipe clamp×1
  • 81000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×1
  • 91000487616Not stocked
    screw×5
