DW40-2

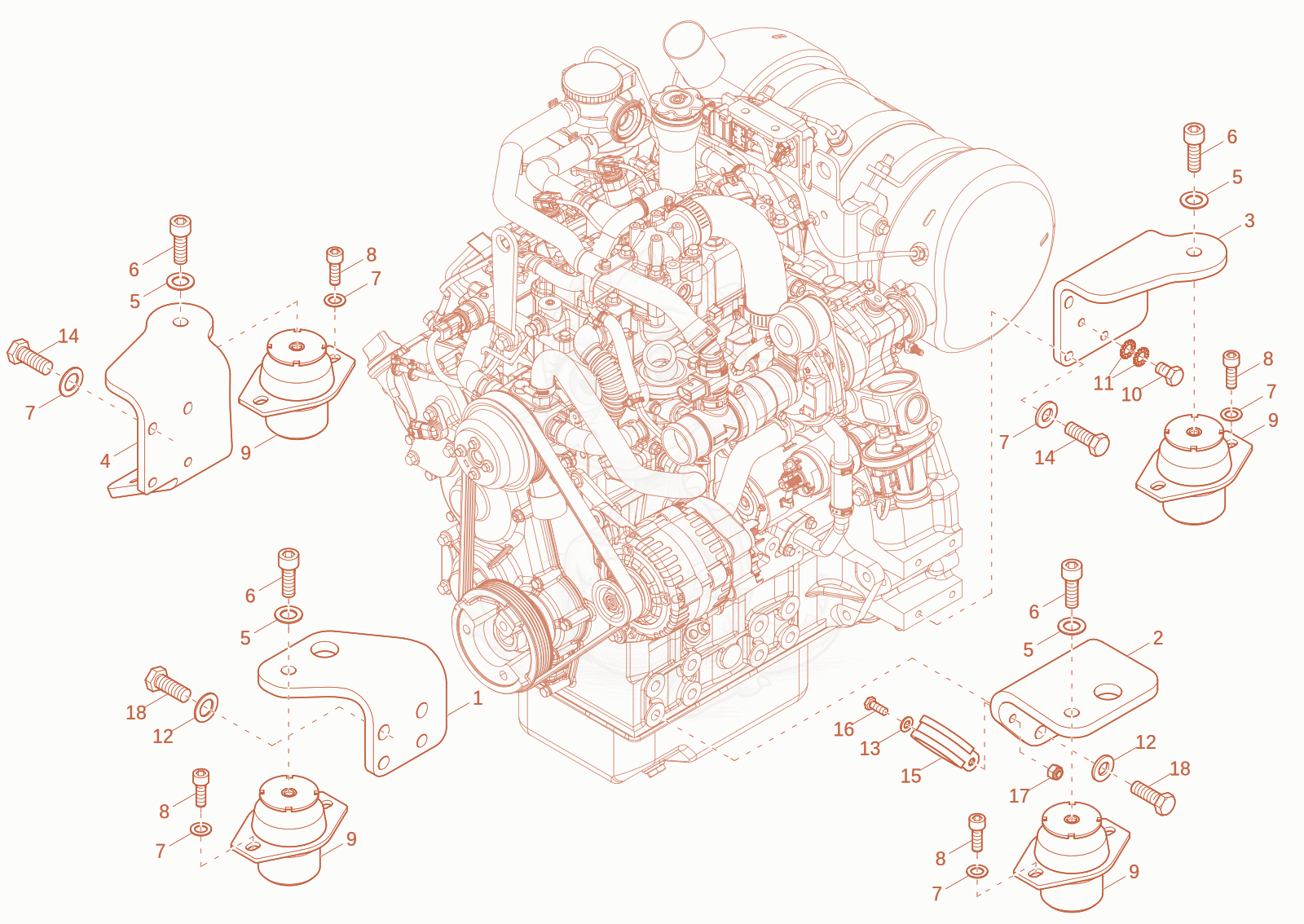

DW40-2 ENGINE BEDDING Diagram

Exploded parts diagram of the ENGINE BEDDING of a Wacker Neuson DW40-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000432163Not stocked
    mounting bracket×1
  • 21000431895Not stocked
    mounting bracket×1
  • 31000431291Not stocked
    mounting bracket×1
  • 41000431896Not stocked
    mounting bracket×1
  • 51000426231Not stocked
    lock washer×4
  • 61000085474
    $1.06
    cheese head screw - 1000085474×4
  • 71000426230Not stocked
    lock washer×16
  • 81000085468
    $0.42
    cheese head screw M10x25-8.8 A2C-DIN912 - 1000085468×8
  • 91000338860Not stocked
    hydro.bearing×4
  • 101000013009Not stocked
    hex screw×1
  • 111000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×2
  • 121000426232Not stocked
    lock washer×8
  • 131000015431Not stocked
    washer×1
  • 141000032979Not stocked
    hex screw×8
  • 151000274288
    $4.42
    pipe clamp RSGU 1.45/20-W1 - 1000274288×1
  • 161000085390
    $0.83
    6-Point screw M8x30-8.8 A2C-DIN933 - 1000085390×1
  • 171000357534Not stocked
    hexagon nut×1
  • 181000015360Not stocked
    hex screw×8
