DW60-2

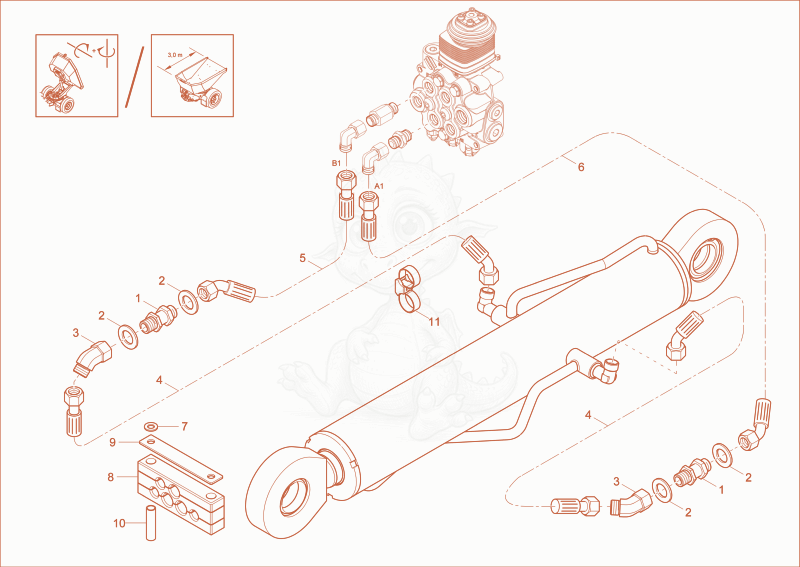

DW60-2 TILT CYLINDER OPERATION Rops (Option) Diagram

Exploded parts diagram of the TILT CYLINDER OPERATION Rops (Option) of a Wacker Neuson DW60-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000015550Not stocked
    lock screw connection×2
  • 21000082620
    $0.08
    washer 23 - 1000082620×4
  • 31000180503
    $49.14
    EV15LOMDA3C - 1000180503×2
  • 41000457482
    $45.58
    SLHYDR 2SCP12 PN15 45 PN15 0 L2270 K - 1000457482×2
  • 51000438276
    $38.97
    SLHYDR 2SC 12 PN15 0 PN15 45 L1980 - 1000438276×1
  • 61000438277
    $40.10
    SLHYDR 2SC 12 PN15 0 PN15 45 L1950 - 1000438277×1
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 81000397960Not stocked
    bracket hose×1
  • 91000397968
    $7.15
    PLATE - 1000397968×1
  • 101000398046Not stocked
    clamping sleeve×2
  • 111000371366Not stocked
    cable strap×1
