DW60-2

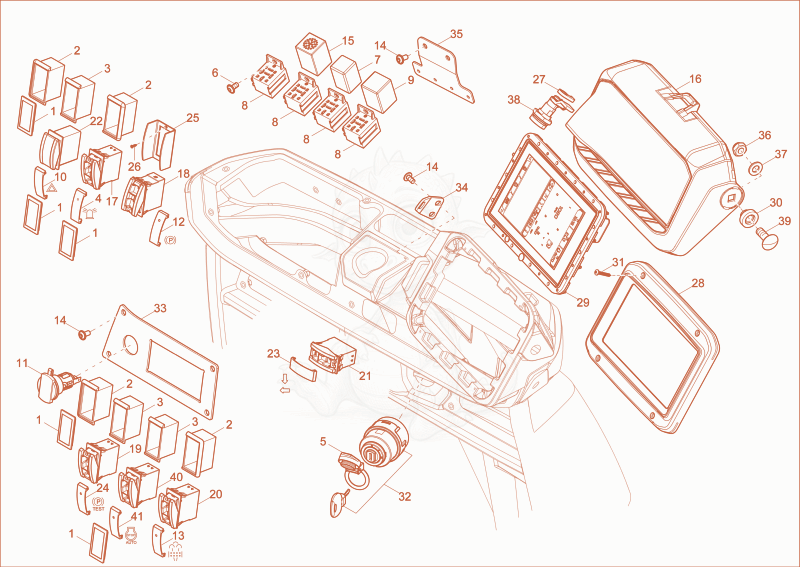

DW60-2 instrument panel Diagram

Exploded parts diagram of the instrument panel of a Wacker Neuson DW60-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000027006Not stocked
    blind cover×5
  • 21000027168Not stocked
    switch frame×4
  • 31000027178Not stocked
    switch frame×3
  • 41000052356Not stocked
    symbol×1
  • 51000081684
    $9.74
    cover ignition lock - 1000081684×1
  • 61000085547
    $0.94
    flat head screw - 1000085547×4
  • 71000099374
    $218.46
    TIME RELAY - 1000099374×1
  • 81000101071
    $7.72
    Plug housing - 1000101071×4
  • 91000139287
    $64.10
    signal - 1000139287×1
  • 101000142880
    $3.67
    symbol - 1000142880×1
  • 111000485001
    $8.68
    Power socket 12V Cabin - 1000485001×1
  • 121000187682
    $4.90
    Symbol - 1000187682×1
  • 131000289073
    $11.25
    SYMBOL - 1000289073×1
  • 141000326519Not stocked
    flat head screw×8
  • 151000351008
    $48.75
    BUZZER - 1000351008×1
  • 161000402959
    $68.31
    cover - 1000402959×1
  • 171000353495Not stocked
    tilt switch×1
  • 181000353496Not stocked
    tilt switch×1
  • 191000353593Not stocked
    Rocker switch×1
  • 201000353594
    $44.80
    FEELER - 1000353594×1
  • 211000353597Not stocked
    tilt switch×1
  • 221000353603Not stocked
    tilt switch×1
  • 231000395682
    $5.56
    SYMBOL - 1000395682×1
  • 241000395685
    $3.67
    SYMBOL - 1000395685×1
  • 251000397439Not stocked
    protection×1
  • 261000398140
    $1.03
    screw - 1000398140×2
  • 271000333644Not stocked
    closing handle×1
  • 281000402854
    $41.55
    protection - 1000402854×1
  • 291000403551Not stocked
    display×1
  • 301000403974
    $63.49
    sleeve - 1000403974×2
  • 311000428018Not stocked
    screw×4
  • 321000429182Not stocked
    glow start switch×1
  • 331000458204
    $31.02
    pilot stand plate - 1000458204×1
  • 341000440109
    $32.93
    plate - 1000440109×1
  • 351000449187Not stocked
    fasten plate×1
  • 361000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 371000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 381000069463Not stocked
    cylinder lock×1
  • 391000299982
    $0.58
    door strap screw - 1000299982×2
  • 401000353496Not stocked
    tilt switch×1
  • 411000395684Not stocked
    symbol×1
