DW90-2

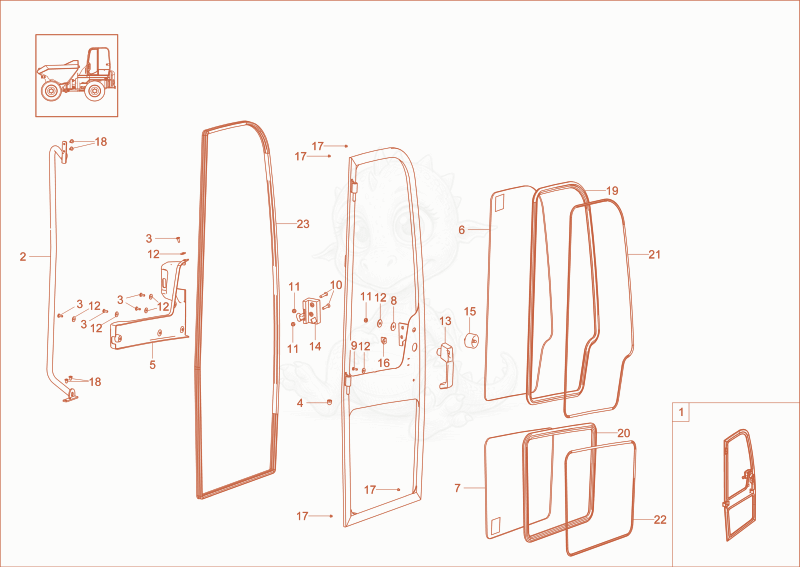

DW90-2 CABIN DOOR right (Option) Diagram

Exploded parts diagram of the CABIN DOOR right (Option) of a Wacker Neuson DW90-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000445519Not stocked
    door×1
  • 21000465605
    $201.53
    holder handle - 1000465605×1
  • 31000313423
    $5.29
    SCREW - 1000313423×5
  • 41000298351
    $3.64
    headnut - 1000298351×1
  • 51000456245
    $62.67
    trim lock - 1000456245×1
  • 61000444980Not stocked
    glass window×1
  • 71000445001
    $64.84
    door glas below - 1000445001×1
  • 81000004289Not stocked
    rubber disc×1
  • 91000085382
    $0.70
    HEX SCREW - 1000085382×1
  • 101000082349
    $0.83
    countersunk screw - 1000082349×2
  • 111000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×3
  • 121000094570
    $3.49
    QUAD RING - 1000094570×7
  • 131000012882
    $49.53
    handle - 1000012882×1
  • 141000003344Not stocked
    lock (w/o keys)×1
  • 151000124883
    $64.26
    Door catch - 1000124883×1
  • 161000465593
    $36.20
    pressure plate - 1000465593×1
  • 171000309655Not stocked
    blind plug×4
  • 181000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×4
  • 191000465596
    $84.89
    profile - 1000465596×1
  • 201000465597
    $33.55
    profile - 1000465597×1
  • 211000465606
    $39.52
    Seal - 1000465606×1
  • 221000465607
    $17.00
    Seal - 1000465607×1
  • 231000465558
    $53.23
    GASKET - 1000465558×1
