DW90-2

DW90-2 BRAKE INSTALLTION Diagram

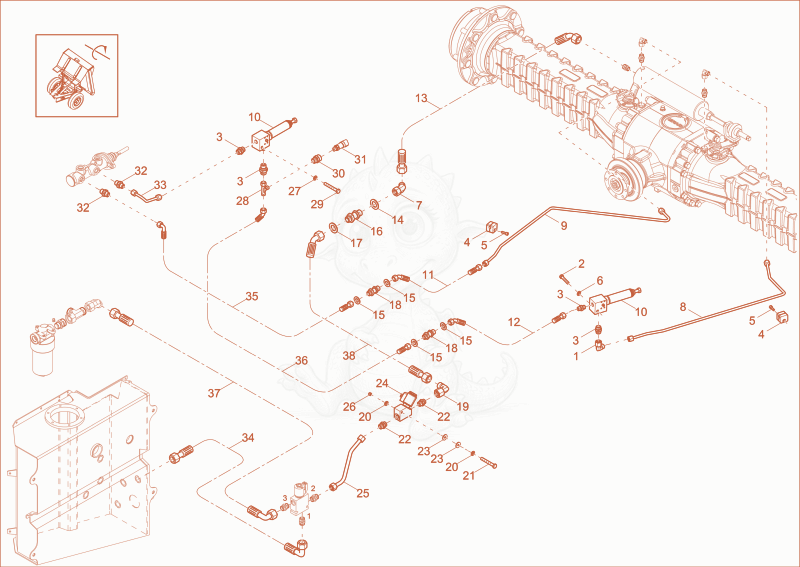

Exploded parts diagram of the BRAKE INSTALLTION of a Wacker Neuson DW90-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 21000015380Not stocked
    hex screw×1
  • 31000015488Not stocked
    screw joint×4
  • 41000083324
    $1.58
    clamp body - 1000083324×2
  • 51000085456
    $0.05
    allen screw M6x20-8.8 A2C-DIN912 - 1000085456×2
  • 61000015431Not stocked
    washer×1
  • 71000188085
    $20.85
    EV12LOMDA3C - 1000188085×1
  • 81000445561
    $27.00
    brake line - 1000445561×1
  • 91000445562
    $54.47
    Brake pipe 8L front frame D26-02F - 1000445562×1
  • 101000447012
    $273.59
    pressure reduction valve - 1000447012×2
  • 111000438449
    $17.33
    SLHYDR 1SC 6,0PN8 45 PD8 0 L890,0A - 1000438449×1
  • 121000438452
    $16.50
    SLHYDR 1SC 6,0PN8 45 PN8 0 L750,0A - 1000438452×1
  • 131000457515
    $32.14
    SLHYDR 2SC 10 PN12 45 PN12 0 L1800 A - 1000457515×1
  • 141000015440Not stocked
    u-washer×2
  • 151000019126Not stocked
    u-washer×4
  • 161000021041Not stocked
    screw joint×1
  • 171000457412
    $21.47
    SLHYDR 2SC 10 PN12 0 PN12 45 L680,0 - 1000457412×1
  • 181000085075
    $4.46
    SV08-L - 1000085075×2
  • 191000000573Not stocked
    screw joint×1
  • 201000015430Not stocked
    u-washer×2
  • 211000082238
    $0.73
    HEX SCREW - 1000082238×1
  • 221000085128
    $3.13
    GE12LR1/4EDOMDA3C - 1000085128×2
  • 231000094964
    $0.70
    WASHER - 1000094964×2
  • 241000405295
    $280.68
    Valve - 1000405295×1
  • 251000428994
    $12.68
    pipe line - 1000428994×1
  • 261000357533Not stocked
    hexagon nut×1
  • 271000015431Not stocked
    washer×1
  • 281000015515Not stocked
    screw joint×1
  • 291000085318
    $1.11
    6-Point screw M8x60-8.8 A2C-DIN931 - 1000085318×1
  • 301000235328
    $56.65
    Screw Joint - 1000235328×1
  • 311000375451
    $229.83
    sensor - 1000375451×1
  • 321000085134
    $19.20
    GE08LM12X1EDOMDA3C - 1000085134×2
  • 331000449488Not stocked
    pipe line×1
  • 341000438125
    $21.22
    SLHYDR 1SC 10 PN12 90 PN12 0 L730,0 - 1000438125×1
  • 351000438272
    $20.11
    SLHYDR 2SC 6,0PN8 90 PN8 0 L1000 - 1000438272×1
  • 361000438273
    $18.96
    SLHYDR 2SC 6,0PN8 45 PN8 0 L735,0 - 1000438273×1
  • 371000438274
    $27.80
    SLHYDR 2SC 10 PN12 0 PN12 90 L1300 - 1000438274×1
