E 1250B Hydronic Heater, Basic, LP/NG

E1250B Fuel Hose Routing Diagram

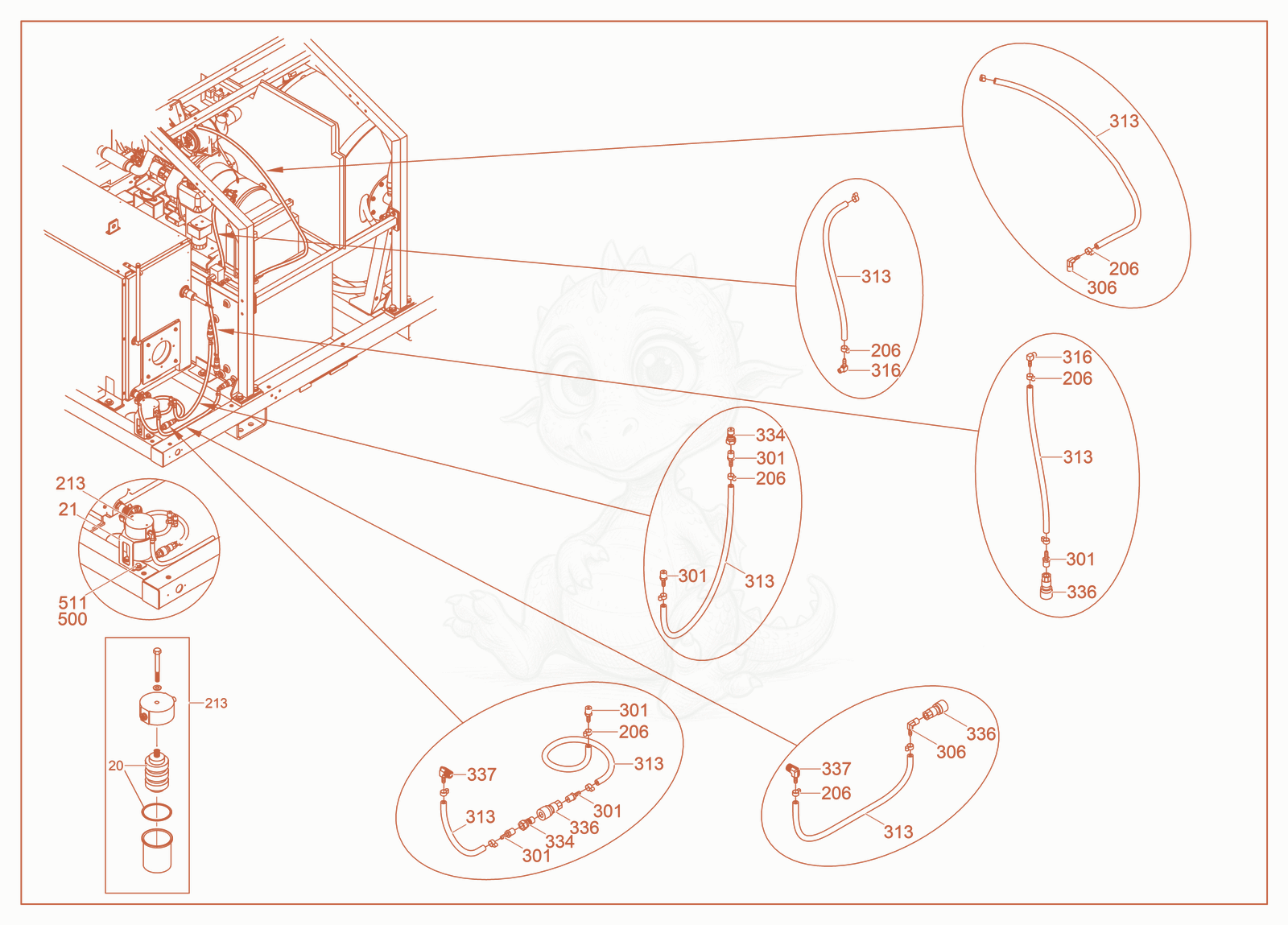

Exploded parts diagram of the Fuel Hose Routing of a Wacker Neuson E1250B, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205000168966Not stocked
    Filter Element Set×1
  • 215200012802Not stocked
    Fuel filter holder×1
  • 2065000168334Not stocked
    Clamp×14
  • 2135000168078Not stocked
    Filter housing×1
  • 3015000168284Not stocked
    Hose barb×5
  • 3065000168367Not stocked
    Hose barb×2
  • 3135000169397Not stocked
    Hose×1
  • 3165000168300Not stocked
    Hose barb×2
  • 3345000168295Not stocked
    Coupling×2
  • 3365000168294Not stocked
    Quick coupler×3
  • 3375000168320Not stocked
    Elbow×2
  • 5005000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×2
  • 5115000160298
    $0.15
    WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×2
