E 1250B Hydronic Heater, Basic, LP/NG

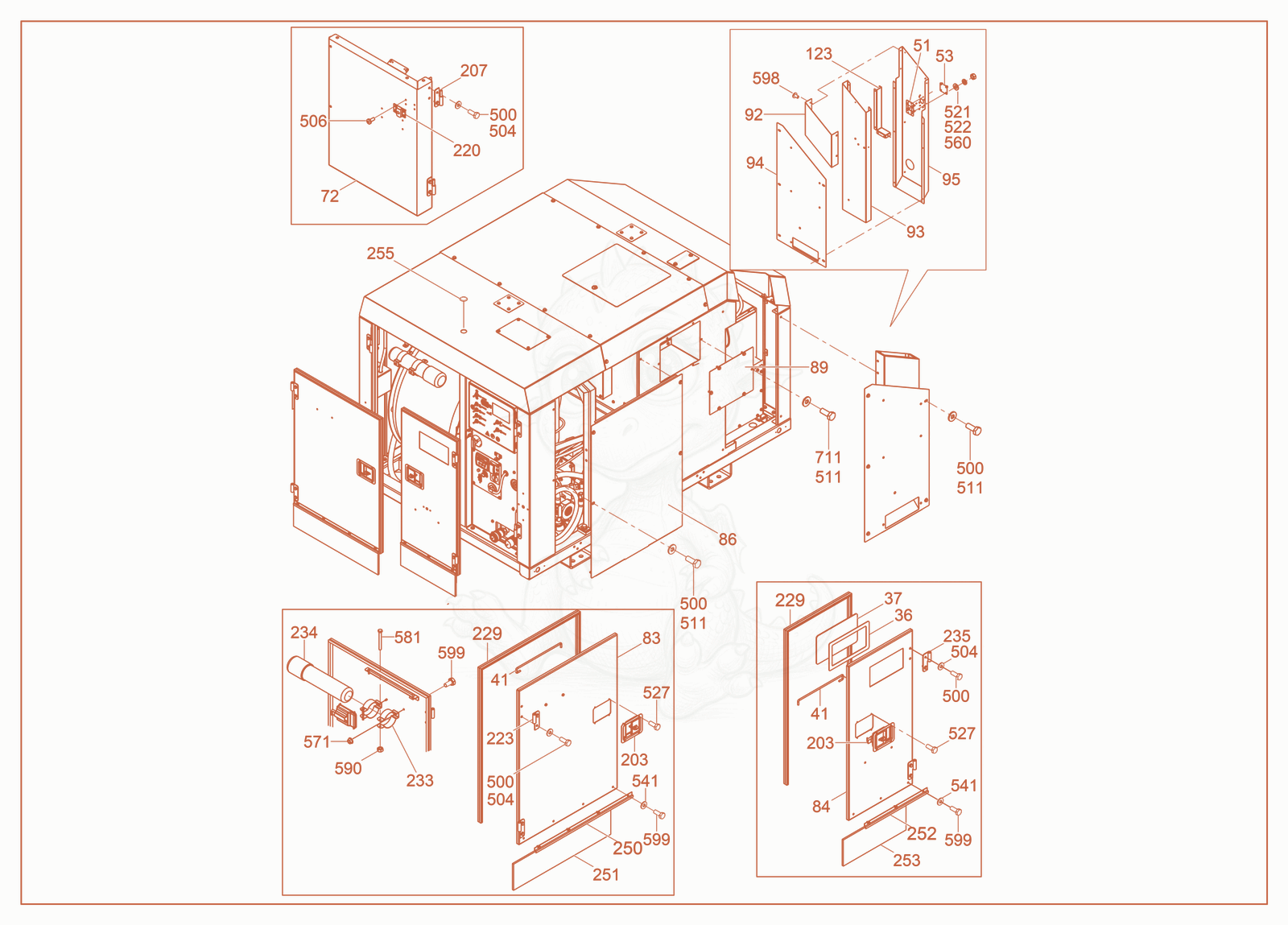

E1250B Doors cpl./Panel cpl. Diagram

Exploded parts diagram of the Doors cpl./Panel cpl. of a Wacker Neuson E1250B, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 365200010911Not stocked
    Gasket×1
  • 375200010912Not stocked
    Window×1
  • 415200016246Not stocked
    Rod×2
  • 515200023511Not stocked
    Mounting plate×1
  • 535200023527Not stocked
    Cover plate×1
  • 725200010838Not stocked
    Front right side panel×1
  • 835200010890Not stocked
    Left rear door×1
  • 845200010893Not stocked
    Right rear door×1
  • 865200010901Not stocked
    Left side panel×1
  • 895200016386Not stocked
    Cover panel×1
  • 925200016133Not stocked
    Heatshield×1
  • 935200016134Not stocked
    Panel×1
  • 945200016135Not stocked
    Panel×1
  • 955200016135Not stocked
    Panel×1
  • 1235200025141Not stocked
    Exhaust baffle×1
  • 2035000158862
    $115.57
    LATCH-SLAM DOOR - 5000158862×8
  • 2075200014959Not stocked
    Hinge pin×2
  • 2205000168402Not stocked
    Holder-door×1
  • 2235200014960Not stocked
    Hinge×2
  • 2295200012962Not stocked
    Seal Kit×2
  • 2345200000929
    $21.62
    HOLDER-MANUAL, TUBE - 5200000929×1
  • 2355200014958Not stocked
    Hinge×2
  • 2505200017411Not stocked
    Holder-Brush Road Side, E1250×1
  • 2515200017412Not stocked
    Brush×1
  • 2525200017413Not stocked
    Holder-Brush Curb Side, E1250×1
  • 2535200017414Not stocked
    Brush×1
  • 2555200022889Not stocked
    Plug×1
  • 5005000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×23
  • 5045000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×12
  • 5065000154515
    $0.03
    SCREW M5X12-4.8 PAN HD ZP - 5000154515×8
  • 5115000160298
    $0.15
    WASHER-B8.4 FLAT,2THK,20 OD - 5000160298×18
  • 5215000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 5225000012397
    $0.10
    WASHER-LOCK B8 - 5000012397×4
  • 5275000176346
    $0.14
    RIVET .156 X .415 LG.,SST - 5000176346×8
  • 5415000192393Not stocked
    Flat washer×7
  • 5605000010882
    $0.05
    NUT M8 8,HEX - 5000010882×4
  • 5715000164067
    $0.18
    NUT-M6-HEX.FLG.HD-8-ZNC-3M.2353 - 5000164067×2
  • 5815200000928
    $0.30
    SCREW M6 X 60 HX.HD. - 5200000928×2
  • 5905000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 5985000167696Not stocked
    Rivet×29
  • 5995000012357
    $0.10
    SCREW M6 X 12 HX.HD. - 5000012357×9
  • 7115000012360
    $0.12
    SCREW M8 X 12 HX.HD. - 5000012360×6
