E 1250P Hydronic Heater, Premium, LP/NG

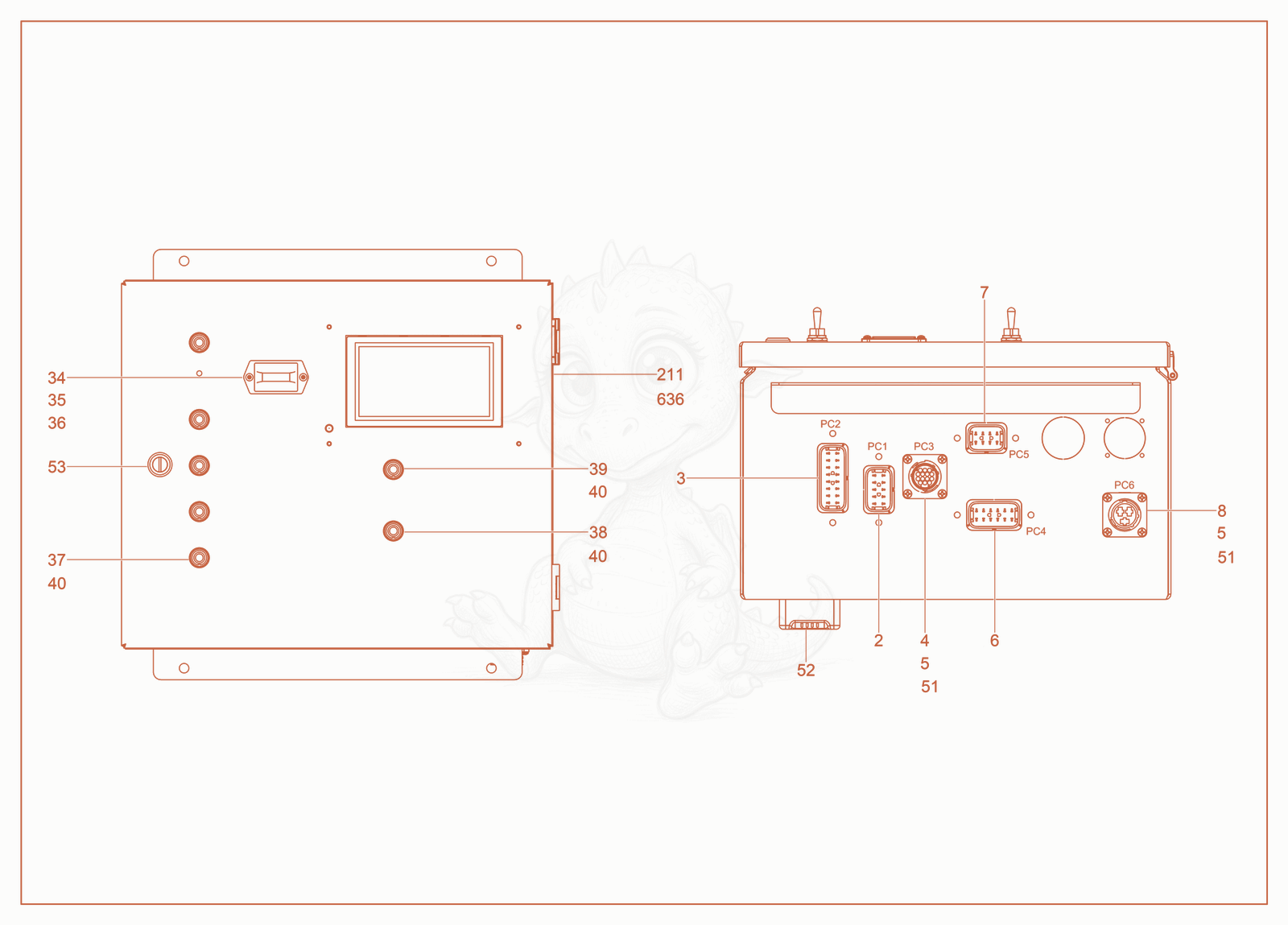

E1250P Control Panel cpl. (1) Diagram

Exploded parts diagram of the Control Panel cpl. (1) of a Wacker Neuson E1250P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25200017736Not stocked
    Plug connector×1
  • 35200017737Not stocked
    Plug connector×1
  • 45200017738Not stocked
    Receptacle connector×1
  • 55200017802Not stocked
    Connector plate×8
  • 65200017739Not stocked
    Plug connector×1
  • 75200017750Not stocked
    Plug connector×1
  • 85200017751Not stocked
    Receptacle connector×1
  • 345000173867
    $34.13
    HOURMETER,LCD 2 TERMINAL - 5000173867×1
  • 355200021851Not stocked
    Pan head screw×2
  • 365000086710
    $0.14
    NUT-LOCK M3 HEX - 5000086710×2
  • 375200017754Not stocked
    Toggle switch×5
  • 385200017755Not stocked
    Toggle switch×1
  • 395200017756Not stocked
    Toggle switch×1
  • 405200017803Not stocked
    Seal×7
  • 515200022442Not stocked
    Rail-DIN×8
  • 525200022437Not stocked
    Rail-DIN×1
  • 535200010093Not stocked
    Latch×1
  • 2115200012331Not stocked
    Control panel×1
  • 6365200012200Not stocked
    Label-control panel×1
