E 1250P Hydronic Heater, Premium, LP/NG

E1250P Motor/Pump cpl. Diagram

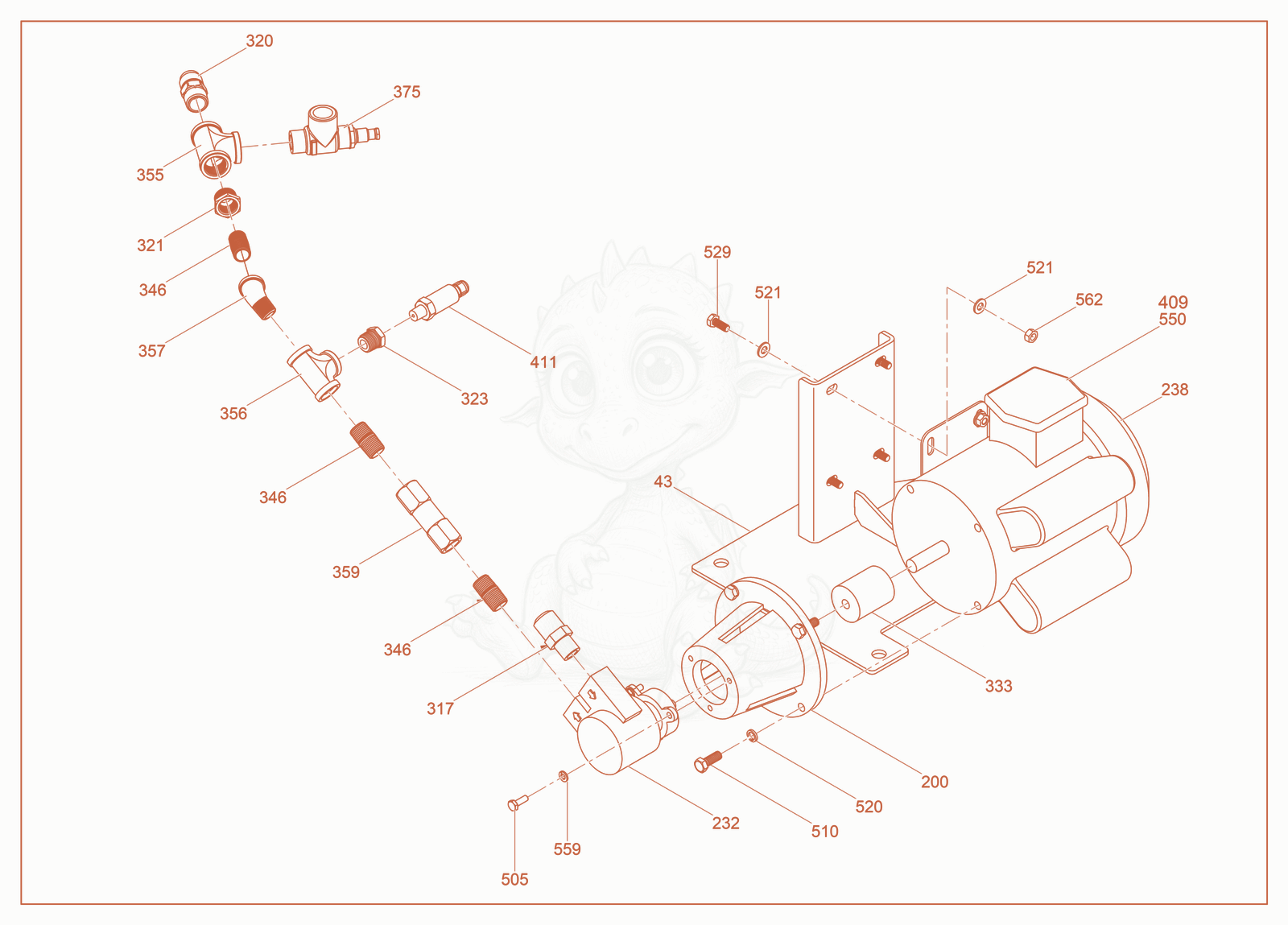

Exploded parts diagram of the Motor/Pump cpl. of a Wacker Neuson E1250P, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 435200012754Not stocked
    Bracket×1
  • 2005000168110Not stocked
    Adapter×1
  • 2325000168277Not stocked
    Pump×1
  • 2385000166544Not stocked
    Motor×1
  • 3175000168373Not stocked
    Adapter×2
  • 3205000168393Not stocked
    Adapter×1
  • 3215200019816Not stocked
    Bushing×1
  • 3235200013487Not stocked
    Bushing×14
  • 3335000168111Not stocked
    Coupling×1
  • 3465200012759Not stocked
    Nipple fitting×2
  • 3555200013485Not stocked
    T-Fitting×1
  • 3565200012760Not stocked
    T-Fitting×1
  • 3575200015121Not stocked
    Hydraulic elbow fitting×1
  • 3595000168351Not stocked
    Check valve×1
  • 3755100017814Not stocked
    Relief valve×1
  • 4095000166458Not stocked
    Cord grip×1
  • 4115200013272Not stocked
    Pressure switch×1
  • 5055000167704Not stocked
    Bolt×3
  • 5105000167705Not stocked
    Bolt×4
  • 5205000167735Not stocked
    Lock washer×4
  • 5215000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×4
  • 5295000012362
    $0.40
    SCREW M8 X 20 HX.HD. - 5000012362×4
  • 5505000166459Not stocked
    Lock nut×1
  • 5595000167733Not stocked
    Lock washer×3
  • 5625000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
