E2200 GROUND HEATER

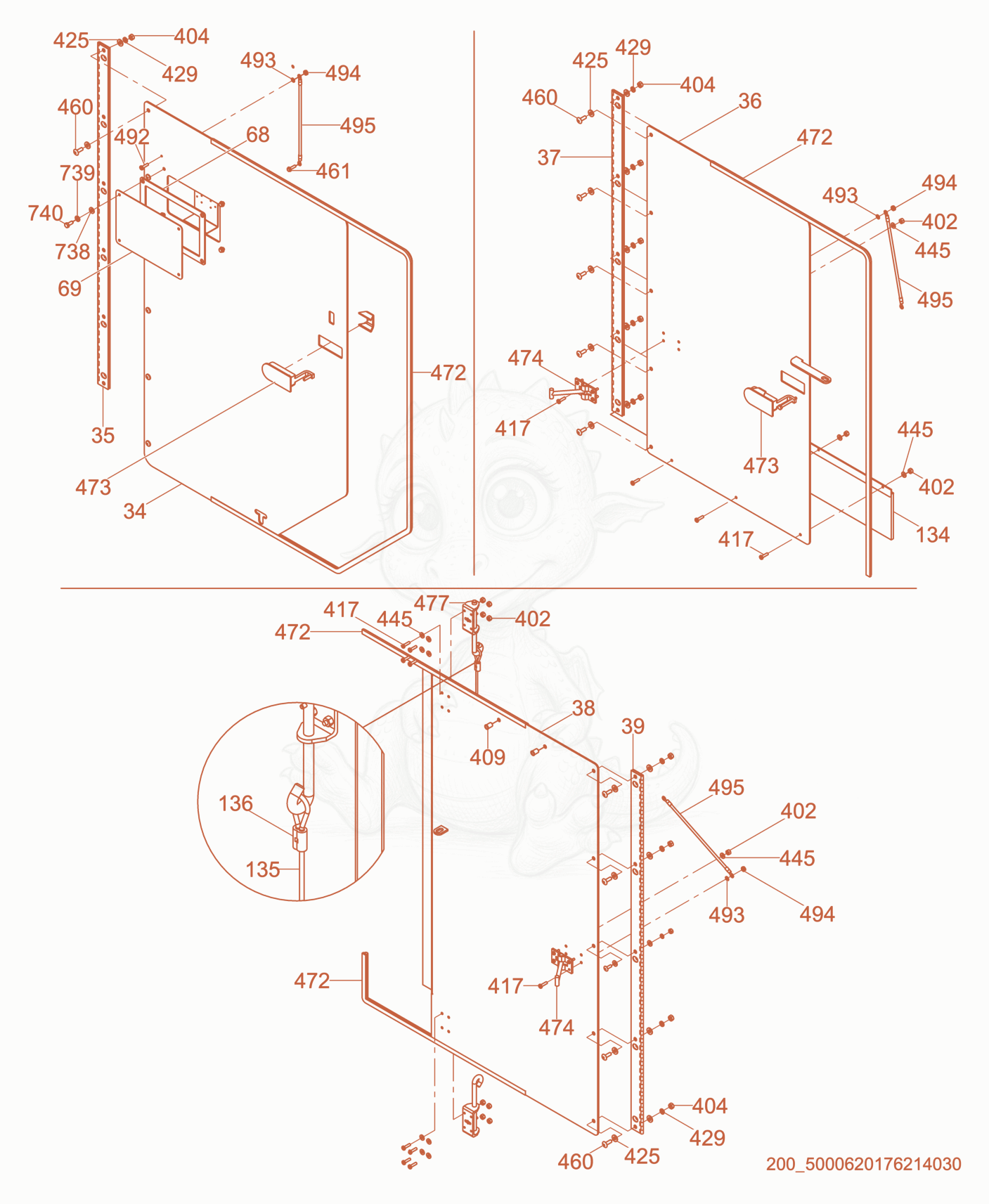

E2200 Doors cpl. Diagram
- 345100017360Not stockedLeft side door×1
- 355000167128Not stockedHinge×1
- 365000180332Not stockedRear Left Door×1
- 375000167348Not stockedHinge×1
- 385000180333Not stockedRear right door×1
- 395000167352Not stockedHinge×1
- 685200020090Not stockedSeal×1
- 695200020089Not stockedRear roof panel×1
- 1345000173128Not stockedBrush×1
- 1355200007303Not stockedWire×1
- 1365200007279Not stockedClip×1
- 1365200007279Not stockedClip×2
- 4025000167688Not stockedNut×17
- 4045000167690Not stockedNut×14
- 4095000167700Not stockedThreaded insert×2
- 4175000167709Not stockedScrew×19
- 4255000167729Not stockedFlat washer×32
- 4295000167733Not stockedLock washer×16
- 4455000167788Not stockedFlat washer×11
- 4605000167857Not stockedScrew×15
- 4615000167883Not stockedScrew×2
- 4725000168354Not stockedTrim×1
- 4735000168398Not stockedLatch×2
- 4745000168400Not stockedHolder×2
- 4775000168521Not stockedSpring×2
- 4925000167819Not stockedScrew×1
- 4935000181623Not stockedWasher×3
- 4945000181624Not stockedNut×3
- 4955000177336Not stockedGround wire×2
- 7385000192393Not stockedFlat washer×4
- 7395000173965Not stockedLock washer×4
- 7405000173985Not stockedHexagonal head cap screw×4
