E3000 Hydronic Surface Heater with Liftbail and generator

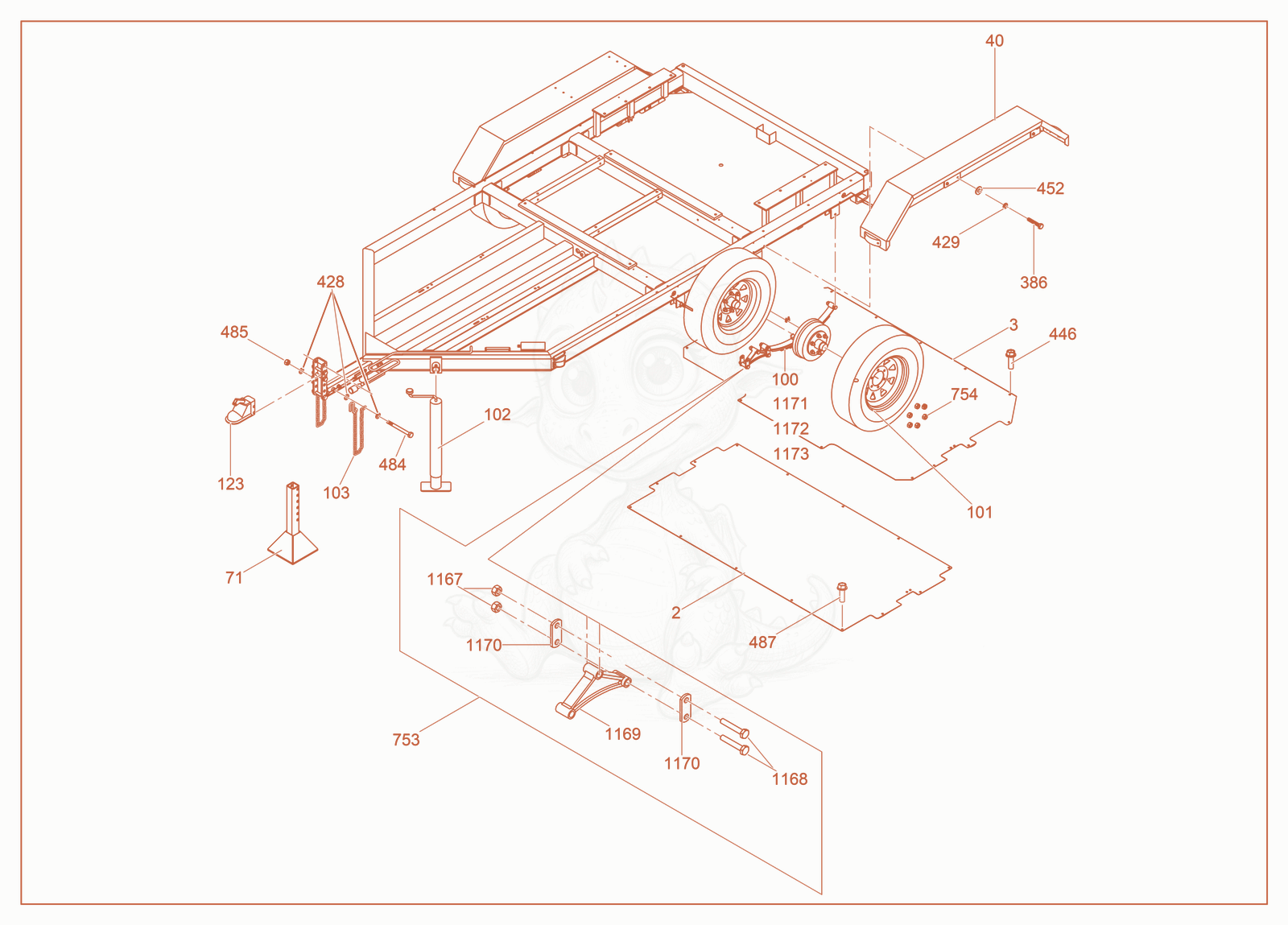

E3000 Trailer cpl. Diagram
- 25000179286Not stockedSplash pan panel×1
- 35000179287Not stockedSplash pan panel×1
- 405000179145Not stockedFender×2
- 715000170683Not stockedStand×1
- 1005000177497Not stockedTandem axle×2
- 1015000168136Not stockedWheel and tire cpl.×4
- JACK-SWIVEL,15 TRVL,2000# - 5000168508×1
- 1035000168699Not stockedSafety chain×2
- 1235000168931Not stockedHitch coupler×1
- 3865000181121Not stockedHexagonal head cap screw×16
- 3985000167806Not stockedFender washer×38
- WASHER 7/16 NOM,STEEL,FLAT - 5000025638×6
- 4295000167733Not stockedLock washer×16
- 4465000167793Not stockedScrew×5
- 4525000167833Not stockedFender washer×16
- 4845000179941Not stockedBolt×2
- 4855000180089Not stockedLock nut×2
- 4875000025434Not stockedHexagonal flange head screw×25
- 7535100028810Not stockedKit, Axle×1
- 7545000172445Not stockedNut×24
- 11675000177800Not stockedLock nut×14
- 11685000177799Not stockedBolt×14
- 11695000177798Not stockedEqualizer×2
- 11705100030364Not stockedLink×8
- 11715100030791Not stockedLeft hand brake cpl.×2
- 11725100030792Not stockedRight hand brake cpl.×2
- 11735100030793Not stockedHub Cpl.×2
