E3000 Hydronic Surface Heater with Liftbail and generator

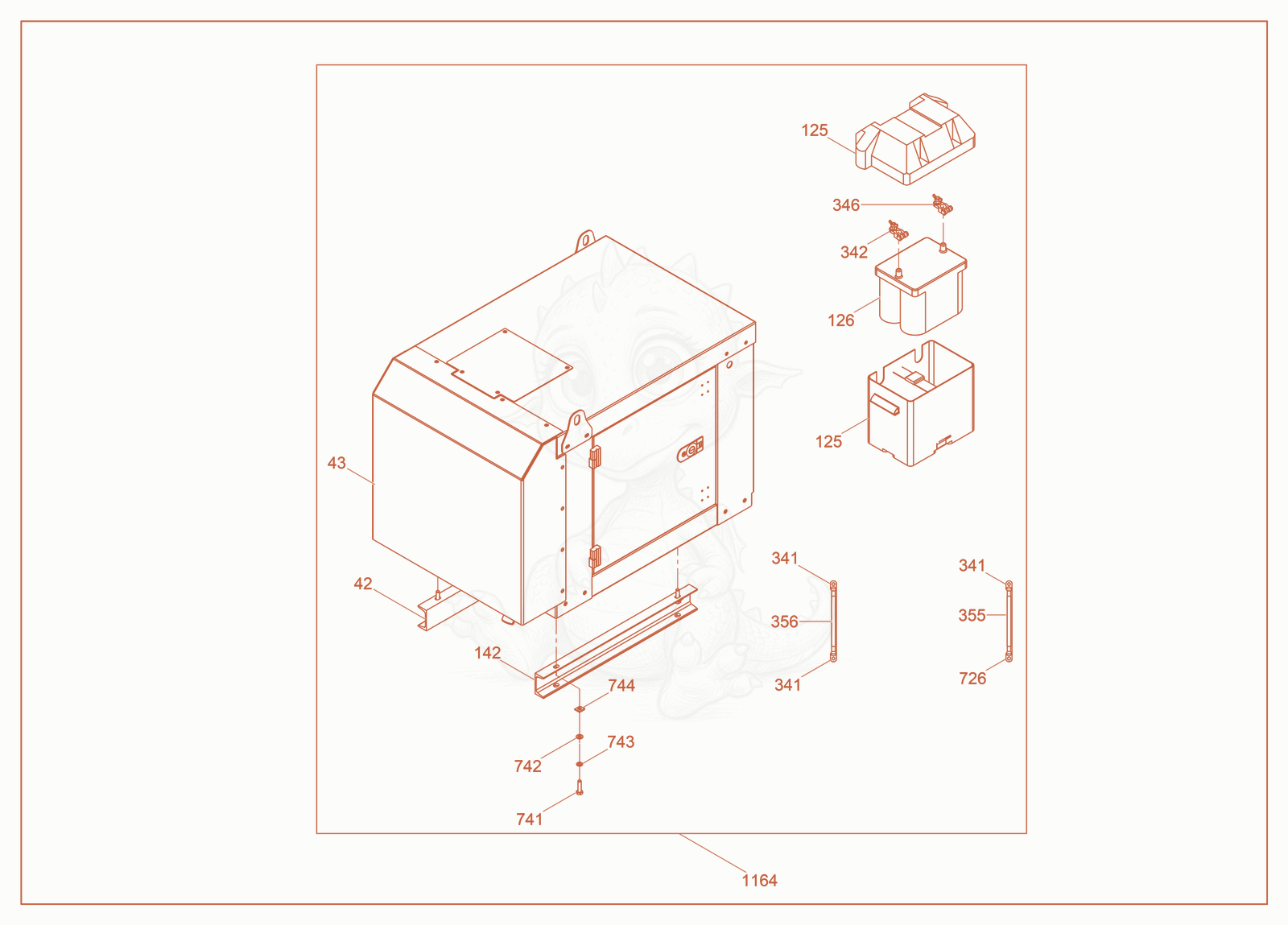

E3000 Genset kit Diagram
- 1255000168169Not stockedBattery box×1
- BATTERY-12V SEALED - 5000165552×1
- 1425100018253Not stockedSpacer×2
- 1435100017150Not stockedGenerator×1
- 3415000166649Not stockedRing terminal×3
- 3425000166650Not stockedTerminal×1
- 3465000180004Not stockedTerminal×1
- 3555000166647Not stockedPositive battery cable, red×1
- 3565000166648Not stockedNegative battery cable×1
- Eyelet-Crimp, 1/0 Ga, CU, 3/8 Hole - 5200000290×1
- 7415000164512Not stockedHexagonal head cap screw×8
- WASHER B10.5 FLAT - 5000010621×12
- WASHER-LOCK B10 - 5000010644×8
- 7445100018536Not stockedWasher×12
- 11645100018483Not stockedGenset kit×1
