E3000 ES Hydronic Surface Heater

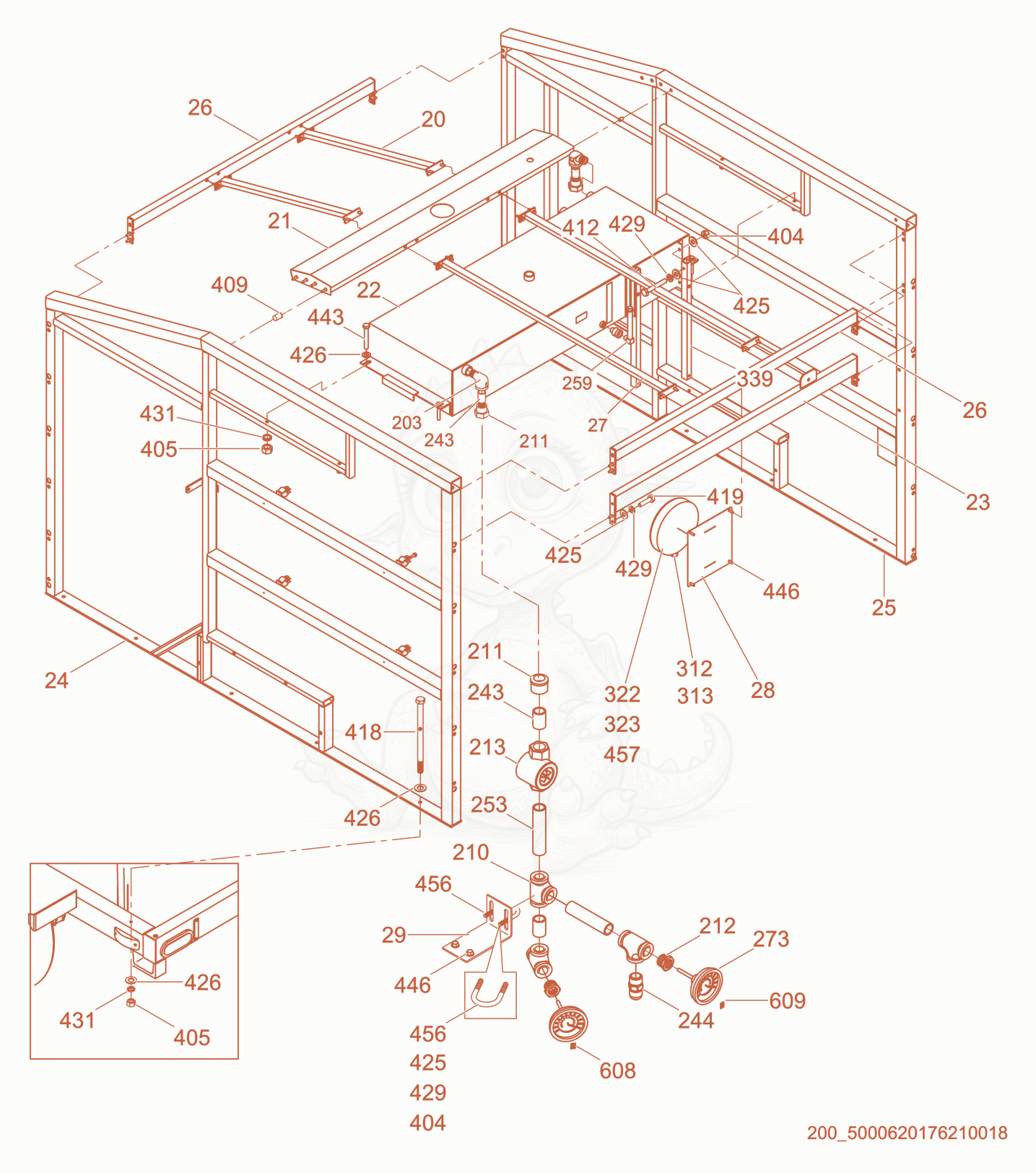

E3000ES Front Enclosure cpl. Diagram
- 205000169572Not stockedSupport×2
- 215000169568Not stockedBrace×1
- 225000169582Not stockedExpansion tank×1
- 235000169581Not stockedCross tube×1
- 245000169579Not stockedSide frame×1
- 255000169580Not stockedSide frame×1
- 265000169566Not stockedCross tube×2
- 275000169576Not stockedSupport×2
- 285000169682Not stockedLight bar bracket×1
- 295000166905Not stockedBracket×1
- 2035000168029Not stockedElbow×2
- 2105000168056Not stockedTee fitting×3
- 2115000168058Not stockedUnion×3
- 2125000168060Not stockedBushing×2
- 2135000168091Not stockedFlow indicator×1
- 2435000168390Not stockedNipple fitting×2
- 2435000168390Not stockedNipple fitting×2
- 2445000168393Not stockedAdapter×1
- 2535000168701Not stockedNipple fitting×2
- 2595000168805Not stockedSight gauge×1
- 2735000168096Not stockedThermometer×2
- 3125000166458Not stockedCord grip×1
- 3135000166459Not stockedLock nut×1
- 3225000166517Not stockedCab dome light×1
- 3235000166518Not stockedLight bulb×1
- 3395000166934Not stockedControl panel mount×2
- 4045000167690Not stockedNut×4
- 4055000167691Not stockedNut×14
- 4095000167700Not stockedThreaded insert×77
- 4125000167703Not stockedBolt×4
- 4185000167720Not stockedBolt×10
- 4195000167721Not stockedBolt×74
- 4255000167729Not stockedFlat washer×42
- 4265000167730Not stockedFlat washer×24
- 4295000167733Not stockedLock washer×40
- 4315000167735Not stockedLock washer×14
- 4335000167777Not stockedBolt×4
- 4435000167777Not stockedBolt×4
- 4465000167793Not stockedScrew×4
- 4465000167793Not stockedScrew×2
- 4535000167835Not stockedScrew×2
- 4565000167841Not stockedU-Bolt×1
- 4565000167841Not stockedU-Bolt×1
- 4575000167848Not stockedScrew×2
- 6085000168664Not stockedLabel-pump temperature gauge×1
- 6095000168663Not stockedLabel-pump temperature gauge×1
