E3000 ES Hydronic Surface Heater

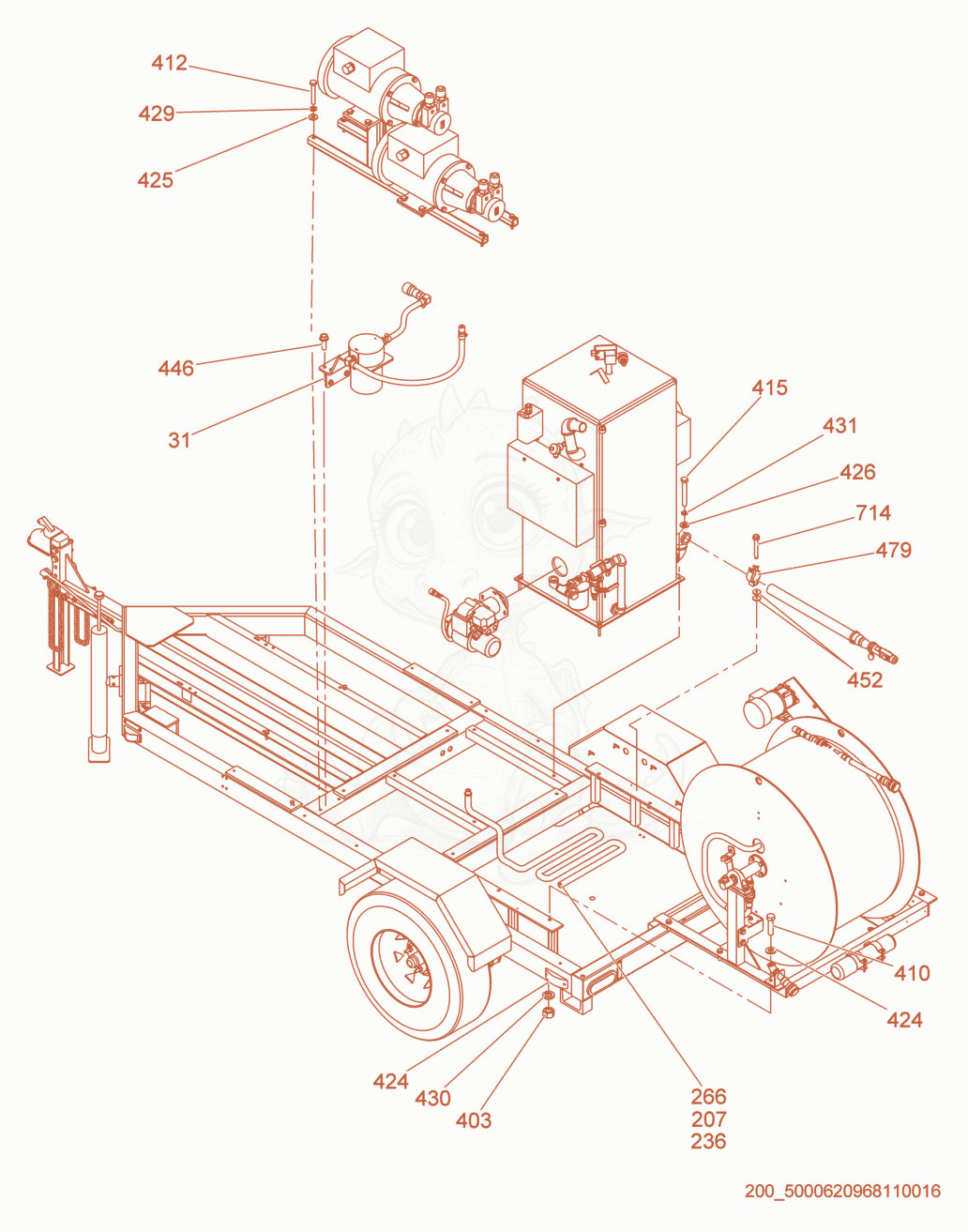

E3000ES Trailer Components Diagram
- 315000173990Not stockedFilter bracket×1
- HOSE FERRULE, 0.975 ID, BRASS - 5000168042×1
- HOSE BARB, 5/8 X5/8 SWIVEL,BRS - 5000168369×1
- 2665000169435Not stockedHose×1
- 4035000167689Not stockedNut×6
- 4105000167701Not stockedBolt×6
- 4125000167703Not stockedBolt×4
- 4155000167706Not stockedBolt×4
- 4245000167728Not stockedFlat washer×10
- 4255000167729Not stockedFlat washer×4
- 4265000167730Not stockedFlat washer×4
- 4295000167733Not stockedLock washer×4
- 4305000167734Not stockedLock washer×6
- 4315000167735Not stockedLock washer×4
- 4465000167793Not stockedScrew×4
- 4525000167833Not stockedFender washer×2
- 4795000168637Not stockedClamp×1
- 7145000167929Not stockedScrew×1
