E3000 ES Hydronic Surface Heater

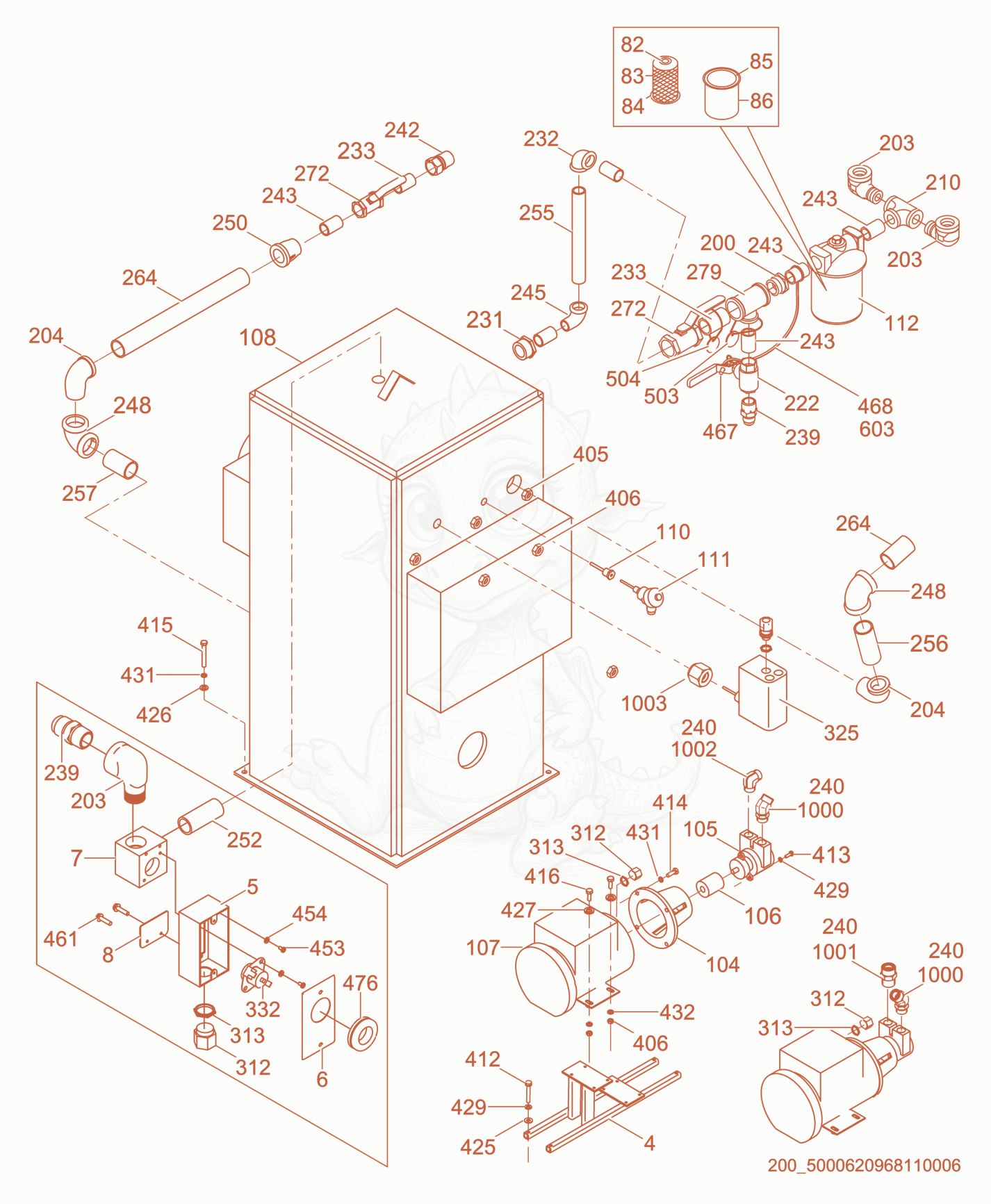

E3000ES Hydronic Piping cpl. Diagram
- 45000169571Not stockedDual pump mount×1
- 55000166931Not stockedEnclosure×1
- 65000166930Not stockedCover plate×1
- 75000165639Not stockedSnap switch cpl.×1
- 85000166927Not stockedCover plate×1
- 825000169093Not stockedGasket×1
- 835000169050Not stockedFilter×1
- 845000169094Not stockedGasket×1
- 855000169092Not stockedGasket×1
- 865000168297Not stockedStrainer×1
- 1045000168110Not stockedAdapter×2
- 1055000168277Not stockedPump×2
- 1065000168111Not stockedCoupling×2
- 1075000166544Not stockedMotor×2
- 1085000168247Not stockedBoiler×1
- 1105000166711Not stockedThermowell×1
- 1115000166712Not stockedThermocouple×1
- 1125000168297Not stockedStrainer×1
- 2005000168011Not stockedBushing×1
- 2035000168029Not stockedElbow×2
- 2045000168030Not stockedElbow×2
- 2105000168056Not stockedTee fitting×1
- 2225000168256Not stockedValve×1
- 2315000168324Not stockedBushing×1
- 2325000168328Not stockedElbow×1
- 2335000168331Not stockedNipple fitting×1
- 2395000168372Not stockedAdapter×1
- 2405000168373Not stockedAdapter×4
- 2425000168385Not stockedCoupling×1
- 2435000168390Not stockedNipple fitting×8
- 2455000168403Not stockedElbow fitting×1
- 2485000168459Not stockedElbow×2
- 2505000168634Not stockedCoupling×1
- 2525000168700Not stockedNipple fitting×1
- 2555000168704Not stockedNipple fitting×1
- 2565000168705Not stockedNipple fitting×1
- 2575000168707Not stockedNipple fitting×1
- 2645000169413Not stockedPipe×1
- 2675000168712Not stockedNipple fitting×1
- 2695000168062Not stockedNipple fitting×1
- 2725000168330Not stockedValve×2
- 2795000168406Not stockedTee-fitting×1
- 3125000166458Not stockedCord grip×5
- 3135000166459Not stockedLock nut×3
- 3255000171353Not stockedLow Level Cut-off Kit×1
- 3325000166613Not stockedLimit control×1
- 4055000167691Not stockedNut×3
- 4065000167692Not stockedNut×10
- 4125000167703Not stockedBolt×4
- 4135000167704Not stockedBolt×6
- 4145000167705Not stockedBolt×8
- 4155000167706Not stockedBolt×4
- 4165000167708Not stockedBolt×8
- 4255000167729Not stockedFlat washer×14
- 4265000167730Not stockedFlat washer×8
- 4275000167731Not stockedFlat washer×8
- 4295000167733Not stockedLock washer×6
- 4315000167735Not stockedLock washer×12
- 4325000167736Not stockedLock washer×8
- 4535000167835Not stockedScrew×2
- 4545000167838Not stockedWasher×2
- 4615000167883Not stockedScrew×2
- 4675000168257Not stockedPin×1
- 4685000168262Not stockedLanyard×1
- 4765000168477Not stockedGrommet×1
- 5035000168188Not stockedTag No. 3×1
- 5045000168187Not stockedTag No. 2×1
- 6035000168387Not stockedLabel-loss of heat transfer fluid×1
- 10005000168409Not stockedAdapter×2
- 10015000168373Not stockedAdapter×1
- 10025000168374Not stockedAdapter×1
- 10035000168036Not stockedBushing×1
