ET20

ET20 seat console Diagram

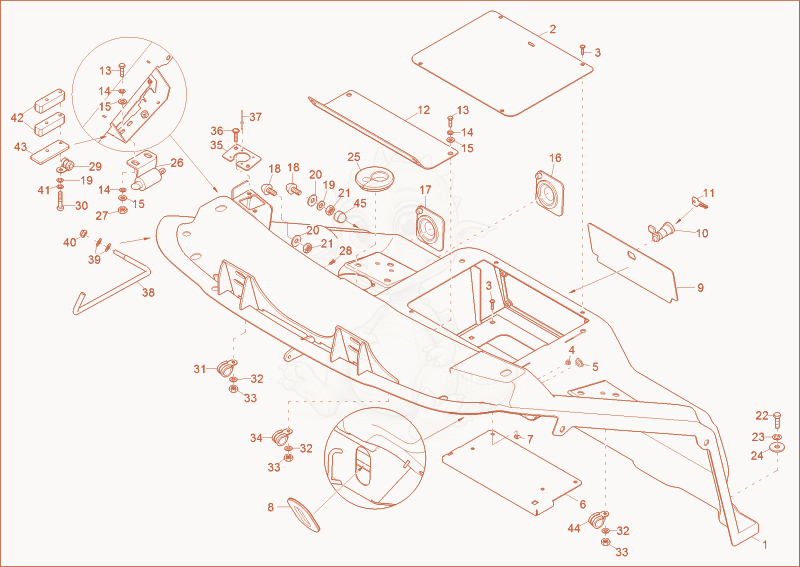

Exploded parts diagram of the seat console of a Wacker Neuson ET20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000247896
    $1,316.16
    Seatconsole 1000247896×1
  • 21000273646
    $90.01
    COVER - 1000273646×1
  • 31000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×8
  • 41000068932Not stocked
    blind plug×2
  • 51000068994Not stocked
    plug×1
  • 61000292206
    $54.55
    lock cover - 1000292206×1
  • 71000251957
    $1.19
    cage nut - 1000251957×4
  • 81000264603
    $5.42
    rubber sleeve - 1000264603×1
  • 91000263446
    $20.03
    COVER - 1000263446×1
  • 101000069463Not stocked
    cylinder lock×1
  • 111000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 121000263727
    $26.35
    Maintenance cover - 1000263727×1
  • 131000013008Not stocked
    hex screw×6
  • 141000015437Not stocked
    lock washer×8
  • 151000015431Not stocked
    washer×8
  • 161000279027
    $4.11
    rubber plug - 1000279027×1
  • 171000279026
    $3.01
    rubber plug - 1000279026×1
  • 181000274431
    $10.67
    Rubber buffer - 1000274431×2
  • 191000015430Not stocked
    u-washer×3
  • 201000013027Not stocked
    washer×2
  • 211000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 221000015381Not stocked
    hex screw×2
  • 231000082609
    $0.73
    lock washer - 1000082609×2
  • 241000082638
    $0.73
    washer 13 -DIN134 - 1000082638×2
  • 251000273916
    $9.60
    sleeve - 1000273916×2
  • 261000274467
    $83.22
    Spring lock - 1000274467×1
  • 271000013021Not stocked
    hexagon nut×2
  • 281000068993Not stocked
    plug×1
  • 291000151200
    $10.77
    pipe clamp RSGU 1.13/20 - 1000151200×1
  • 301000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×2
  • 311000068818Not stocked
    clamp×4
  • 321000095342
    $1.22
    washer X-1000092302 - 1000095342×7
  • 331000085587
    $0.03
    HEXAGON NUT - 1000085587×7
  • 341000083248
    $4.47
    hose clamp RSGU 1 23/20 - 1000083248×1
  • 351000274435
    $6.02
    plate - 1000274435×1
  • 361000165459
    $1.33
    screw M6x12 ISO7380-2 - 1000165459×2
  • 371000082698
    $0.65
    blind rivet A3x12 - 1000082698×4
  • 381000279233
    $12.10
    likage - 1000279233×1
  • 391000094961
    $1.71
    washer 4,3 DIN125 - 1000094961×2
  • 401000082547
    $0.88
    nut M4-8 A2C-DIN985 - 1000082547×1
  • 411000015436Not stocked
    lock washer×2
  • 421000280001
    $9.90
    insulating mat - 1000280001×2
  • 431000280002Not stocked
    clamp plate×1
  • 441000032218Not stocked
    pipe clamp×2
  • 451000004276Not stocked
    cover cap×1
