ET20

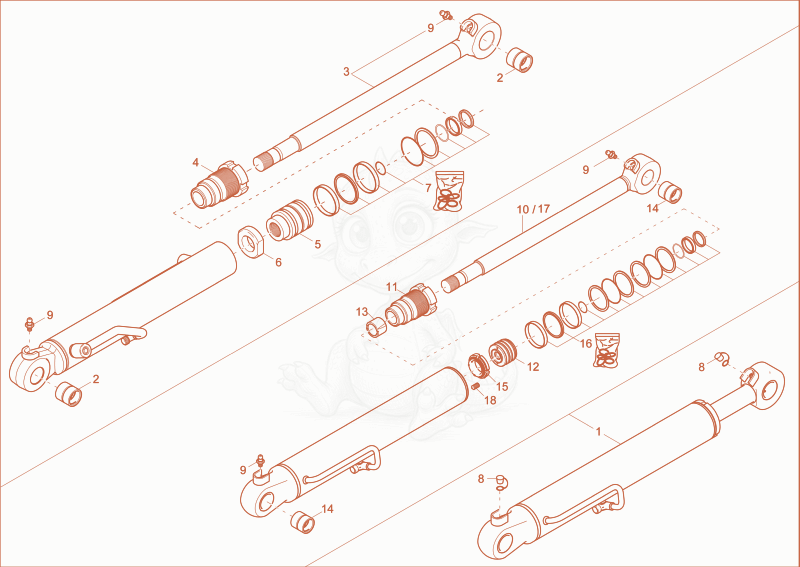

ET20 bucket cylinder Diagram

Exploded parts diagram of the bucket cylinder of a Wacker Neuson ET20, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000458235Not stocked
    bucket cylinder×1
  • 21000165323
    $41.39
    STEEL BUSHING - 1000165323×2
  • 31000276821
    $530.63
    Pistonrod 1000276821×1
  • 41000372781
    $199.17
    bushing - 1000372781×1
  • 51000276829
    $420.21
    PISTON - 1000276829×1
  • 61000276857
    $28.99
    set nut - 1000276857×1
  • 71000372945Not stocked
    cylinder seal kit×1
  • 81000015480Not stocked
    cap grease nipple×2
  • 91000015475Not stocked
    grease nipple×2
  • 101000414700Not stocked
    piston rod×1
  • 111000414708
    $126.23
    bushing - 1000414708×1
  • 121000414710
    $80.76
    piston - 1000414710×1
  • 131000403797Not stocked
    slide bearing×1
  • 141000414652
    $58.44
    bushing - 1000414652×2
  • 151000399497
    $41.98
    Nut - 1000399497×1
  • 161000414703
    $159.19
    seal kit - 1000414703×1
  • 171000490409Not stocked
    piston rod×1
  • 181000015384Not stocked
    thread pin×1
