ET58

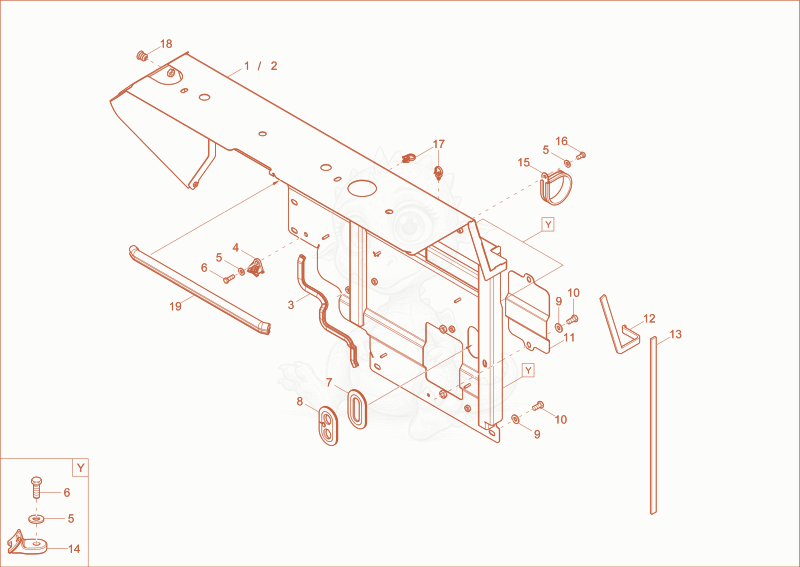

ET58 REAR WALL Diagram

Exploded parts diagram of the REAR WALL of a Wacker Neuson ET58, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000446340Not stocked
    rear plate×1
  • 21000452130Not stocked
    rear plate×1
  • 31000098163
    $5.21
    edge protection - 1000098163×0.45
  • 41000357426Not stocked
    sockets×1
  • 51000015448Not stocked
    washer×5
  • 61000013008Not stocked
    hex screw×4
  • 71000264603
    $5.42
    rubber sleeve - 1000264603×1
  • 81000264601
    $5.81
    rubber sleeve - 1000264601×1
  • 91000094974
    $0.70
    washer M10-DIN134 - 1000094974×10
  • 101000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×10
  • 111000420797Not stocked
    Maintenance cover×1
  • 121000309165Not stocked
    seal strap foam×0.4
  • 131000309165Not stocked
    seal strap foam×0.6
  • 141000378385Not stocked
    sockets×3
  • 151000408158Not stocked
    pipe clamp×1
  • 161000019136Not stocked
    hex screw×1
  • 171000375997Not stocked
    fixing bracket×2
  • 181000068993Not stocked
    plug×1
  • 191000098198
    $19.56
    RUBBER PROFILE - 1000098198×0.55
