ET58

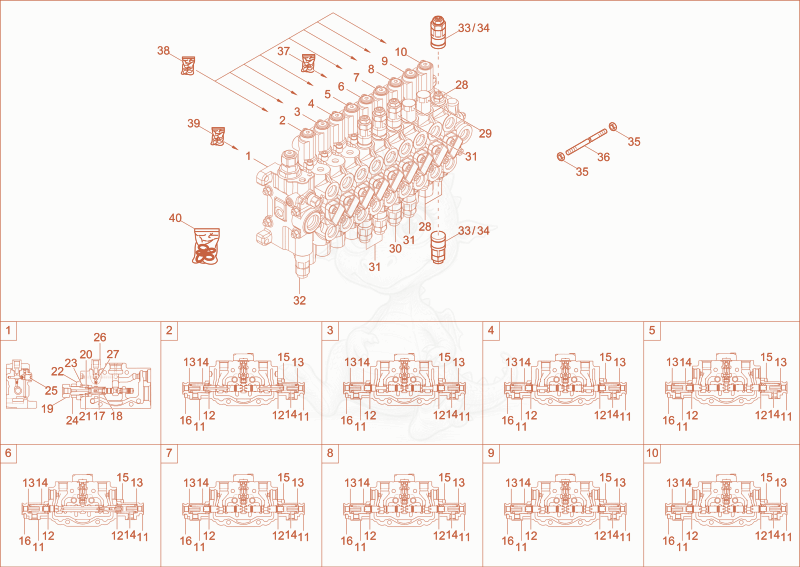

ET58 CONTROL VALVE 2 Diagram

11000459474Not stocked
input segment×1
21000470130Not stocked
rotary segment×1
31000470131Not stocked
travel segment×1
41000470132Not stocked
travel segment×1
51000470133Not stocked
lifting boom segment×1
61000470134
$778.32
SECTION - 1000470134×1
71000470135Not stocked
bucket segment×1
81000459520Not stocked
dozer blade segment×1
91000459513Not stocked
swivel segment×1
101000459470Not stocked
auxiliary segment×1
111000459567Not stocked
valve cap×18
121000459539Not stocked
BRACKET - NOZZLE SPRING×18
131000459540Not stocked
BRACKET - NOZZLE SPRING×18
141000459537
$46.68
spring - 1000459537×18
151000459568
$9.93
screw - 1000459568×18
161000155317
$6.36
SCREW - 1000155317×18
171000459642
$41.46
spring - 1000459642×1
181000459643
$9.93
washer - 1000459643×1
191000459647
$111.54
plug - 1000459647×1
201000459644
$9.93
O-ring - 1000459644×1
211000459645
$9.93
washer - 1000459645×1
221000459648
$141.56
plug - 1000459648×1
231000132370
$11.08
O-RING - 1000132370×1
241000459671
$14.92
nut - 1000459671×1
251000459649
$77.65
plug - 1000459649×1
261000459650
$111.54
plug - 1000459650×1
271000459651
$14.92
plug - 1000459651×1
281000152582
$59.06
block valve - 1000152582×3
291000069360Not stocked
non return valve×2
301000470136Not stocked
shock cartridge×1
311000459672Not stocked
shock cartridge×6
321000470137Not stocked
shock cartridge×1
331000425326Not stocked
shock cartridge×2
341000425327Not stocked
shock cartridge×2
351000125226
$7.44
NUT - 1000125226×8
361000401915Not stocked
tie rod×4
371000462978Not stocked
seal kit×1
381000462977Not stocked
seal kit×8
391000462976Not stocked
seal kit×1
401000462979Not stocked
seal kit×1
