EZ10e

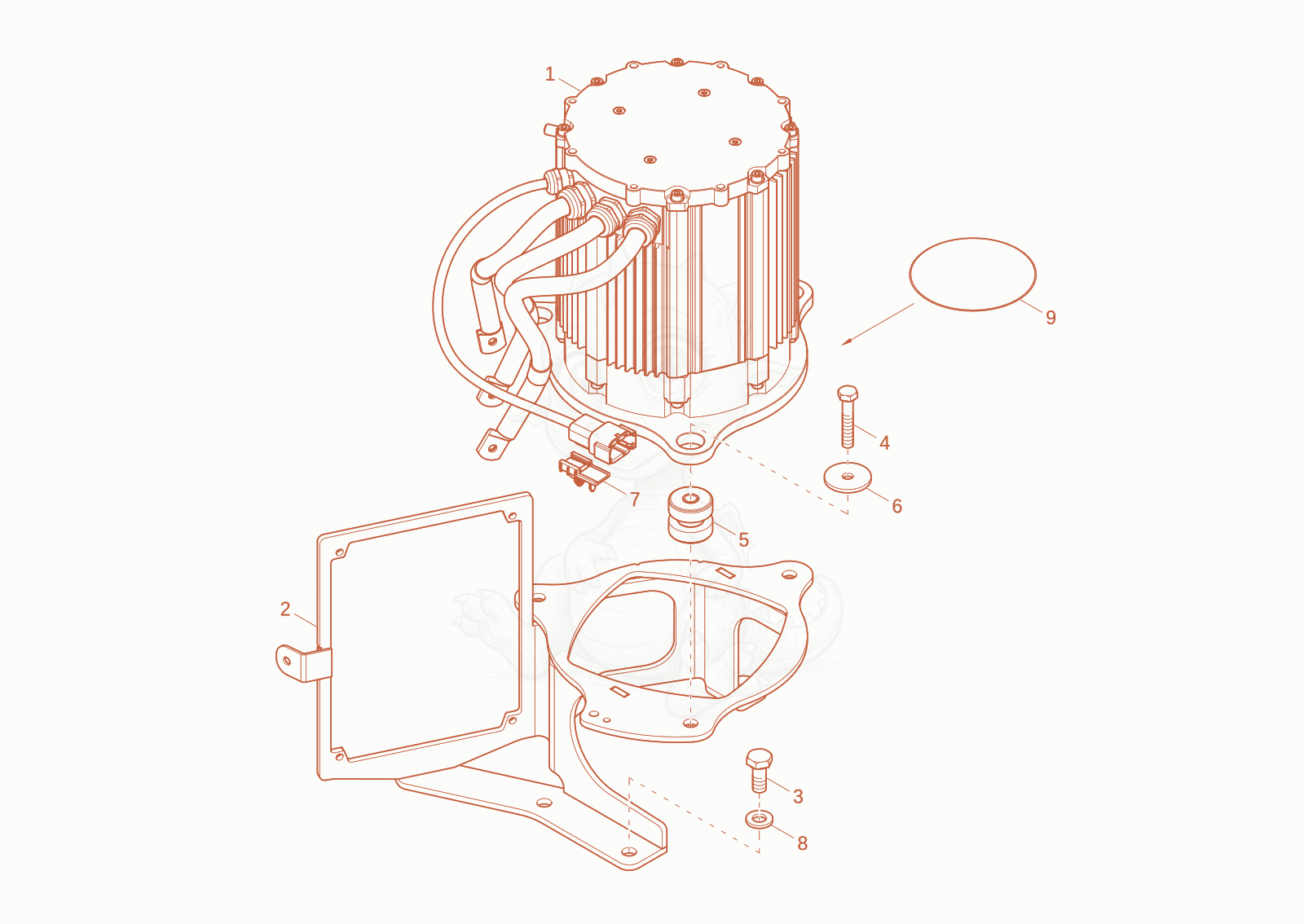

EZ10E electric motor Diagram

Exploded parts diagram of the electric motor of a Wacker Neuson EZ10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000505839Not stocked
    electric motor×1
  • 21000506246Not stocked
    Bracket×1
  • 31000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×3
  • 41000015380Not stocked
    hex screw×3
  • 51000441762Not stocked
    engine lodging×3
  • 61000351385
    $1.42
    Washer - 1000351385×3
  • 71000293439Not stocked
    clip×1
  • 81000426230Not stocked
    lock washer×3
  • 91000553138Not stocked
    o-ring×1
