EZ10e

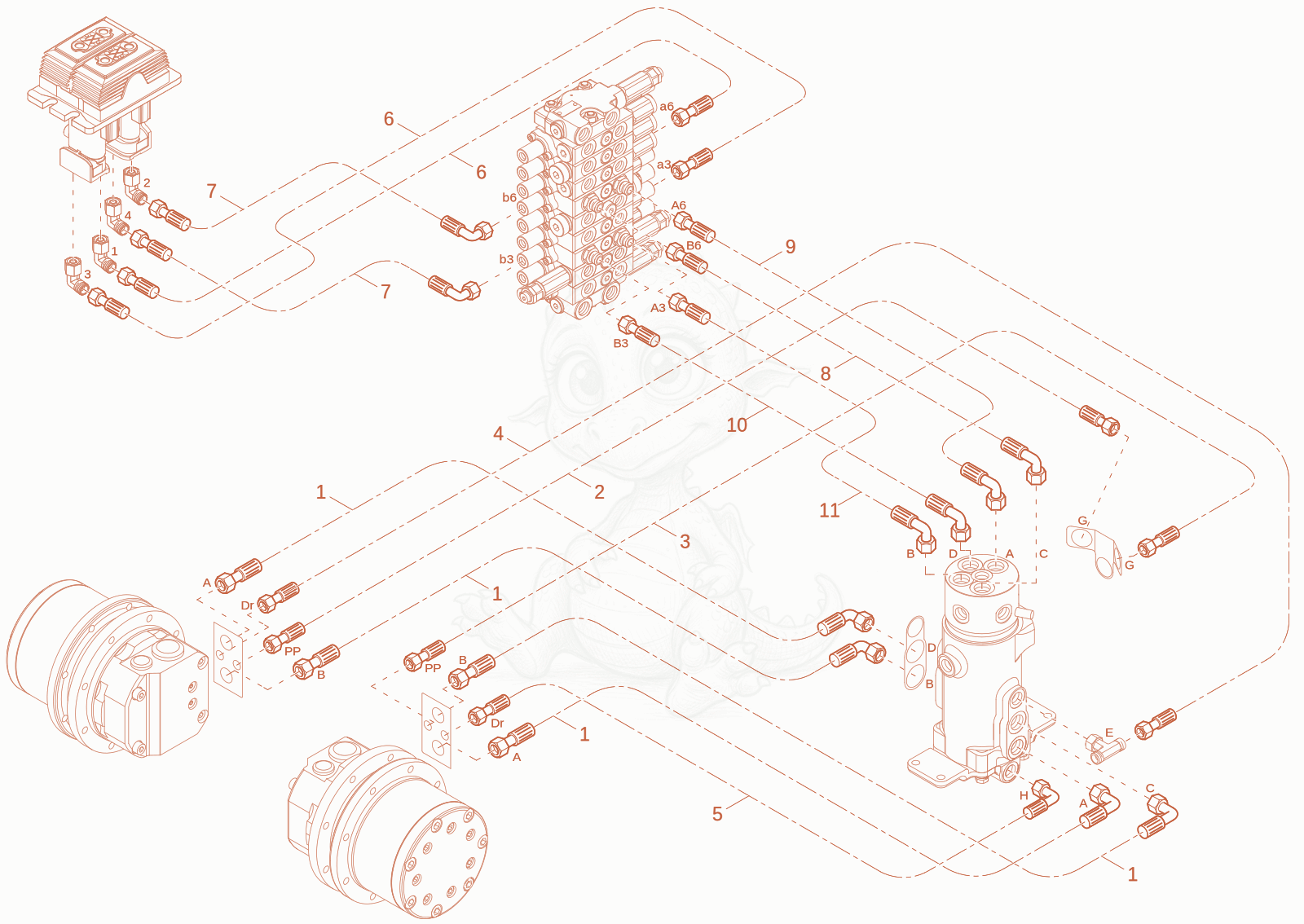

EZ10E TRAVEL MOTOR INSTALLATION Diagram

Exploded parts diagram of the TRAVEL MOTOR INSTALLATION of a Wacker Neuson EZ10E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000547587Not stocked
    Hose×4
  • 21000547596Not stocked
    Hose×1
  • 31000267255Not stocked
    Hose×1
  • 41000547599Not stocked
    Hose×1
  • 51000547598Not stocked
    Hose×1
  • 61000388026Not stocked
    Hose×2
  • 71000414115Not stocked
    Hose×2
  • 81000432549Not stocked
    Hose×1
  • 91000277539
    $24.81
    SLHYDR 2SC 8,0PN10 90 PN10 0 L400,0 0 - 1000277539×1
  • 101000076761
    $17.00
    SLHYDR 2SC 8,0PN10 90 PN10 0 L750,0 0 - 1000076761×1
  • 111000393135Not stocked
    Hose×1
