EZ17-2

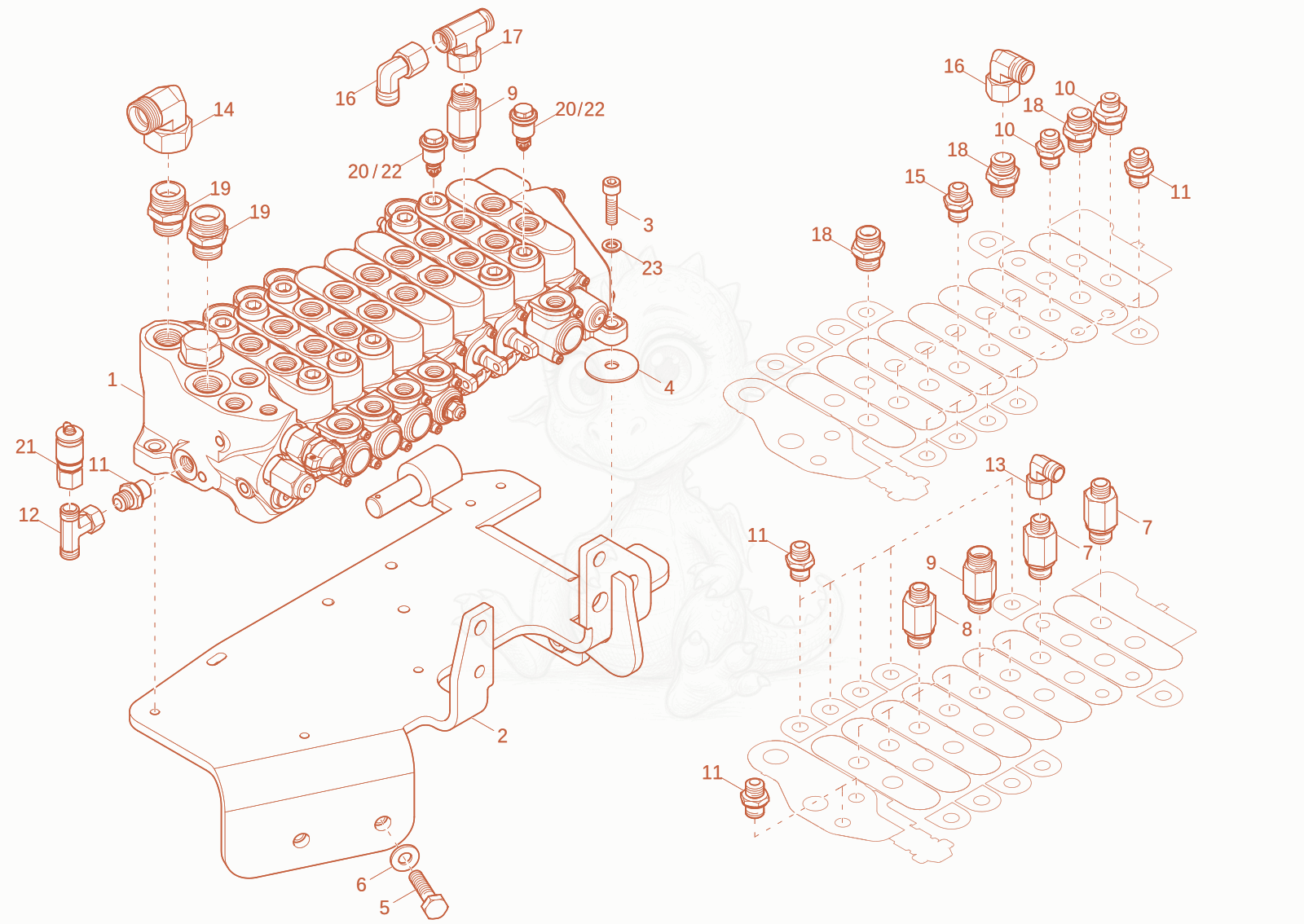

EZ17-2 CONTROL VALVE 1 Diagram

Exploded parts diagram of the CONTROL VALVE 1 of a Wacker Neuson EZ17-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000509849Not stocked
    control block×1
  • 21000281968
    $229.15
    Console 1000281968×1
  • 31000013014Not stocked
    cheese head screw×3
  • 41000156073
    $6.56
    rubber shock absorber - 1000156073×3
  • 51000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×4
  • 61000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 71000263162
    $39.16
    screw joint 8L-3/8" ED L=51 - 1000263162×2
  • 81000263161
    $69.04
    screw joint 10L-3/8" EDL=51 - 1000263161×4
  • 91000290335
    $6.55
    screw joint 12L-3/8" EDL=51 - 1000290335×3
  • 101000015489Not stocked
    screw joint×2
  • 111000015488Not stocked
    screw joint×13
  • 121000015518
    $8.71
    ET08LOMDA3C - 1000015518×1
  • 131000000542
    $11.08
    EW08LOMD - 1000000542×1
  • 141000015513Not stocked
    screw joint×1
  • 151000015491Not stocked
    screw joint×3
  • 161000000573Not stocked
    screw joint×3
  • 171000015519
    $12.63
    ET12LOMDA3C - 1000015519×1
  • 181000015492
    $2.67
    GE12LREDOMDA3C - 1000015492×4
  • 191000082979
    $6.95
    GE18LR1/2EDOMDA3C - 1000082979×2
  • 201000511829Not stocked
    valve×2
  • 211000000575Not stocked
    minimess point×1
  • 221000528164Not stocked
    pressure valve×2
  • 231000094995
    $0.93
    Nord-Lock disc NL8 - 1000094995×3
