EZ17-2

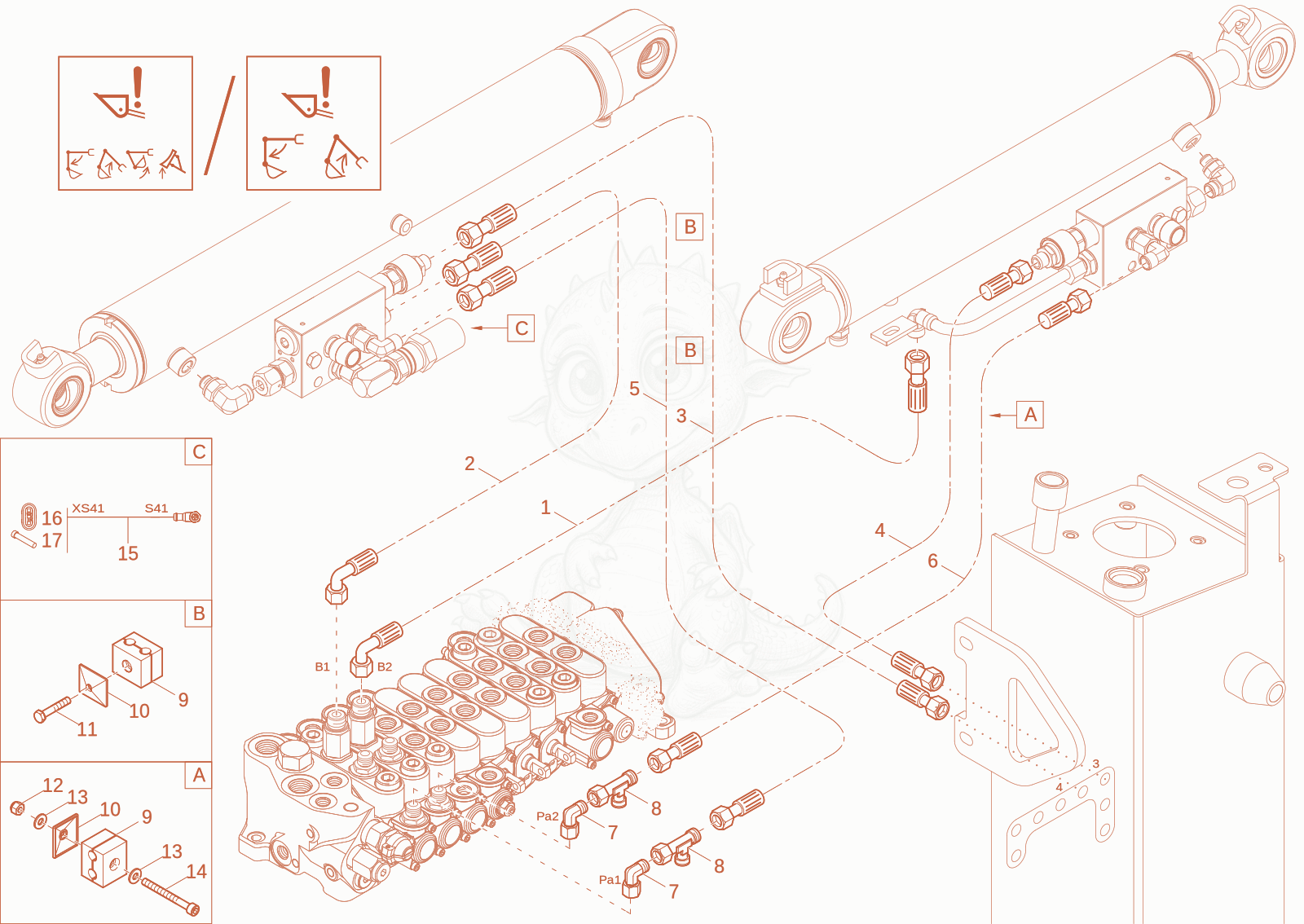

EZ17-2 OVERLAOD SYSTEM (OPTION) Diagram

Exploded parts diagram of the OVERLAOD SYSTEM (OPTION) of a Wacker Neuson EZ17-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000290962
    $77.09
    SLHYDR 2SC 8,0PN10 90 PN10 0 L2500 S0 - 1000290962×1
  • 21000290972
    $79.67
    SLHYDR 2SC 8,0PN10 90 PN10 0 L2400 S0 - 1000290972×1
  • 31000290974
    $61.18
    SLHYDR 1SCP5,0PN8 0 PN8 0 L1900 S0 - 1000290974×1
  • 41000290993
    $67.73
    SLHYDR 1SCP5,0PN8 0 PN8 0 L2350 S0 - 1000290993×1
  • 51000290995
    $59.91
    SLHYDR 1SCP5,0PN8 0 PN8 0 L2100 S0 - 1000290995×1
  • 61000293195
    $69.14
    SLHYDR 1SCP5,0PN8 0 PN8 0 L2700 S0 - 1000293195×1
  • 71000000542
    $11.08
    EW08LOMD - 1000000542×2
  • 81000015515Not stocked
    screw joint×2
  • 91000168708
    $1.99
    clamp body - 1000168708×3
  • 101000015628Not stocked
    cover plate×3
  • 111000015340Not stocked
    hex screw×2
  • 121000357533Not stocked
    hexagon nut×1
  • 131000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 141000085461
    $0.06
    cheese head screw M6x60-8.8 A2C - 1000085461×1
  • 151000283702
    $148.25
    cable overloadwarning - 1000283702×1
  • 161000265293
    $3.49
    Pin housing - 1000265293×1
  • 171000052627
    $1.00
    Plug - 1000052627×1
