EZ26E WIRE HARNESS SEAT CONSOLE Diagram

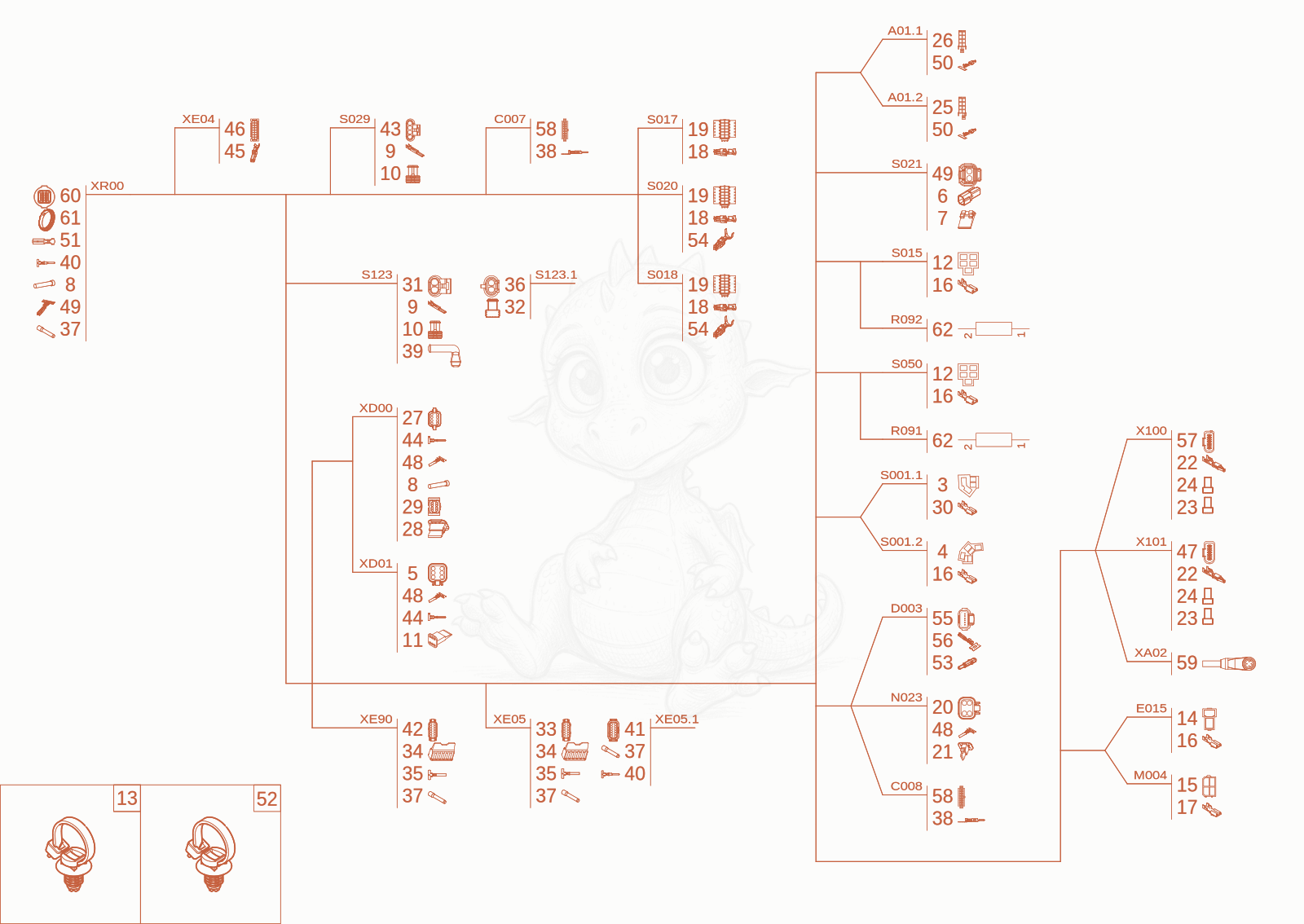

Exploded parts diagram of the WIRE HARNESS SEAT CONSOLE of a Wacker Neuson EZ26E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000544763Not stocked
    wiring harness×1
  • 21000027159
    $0.59
    TIMER CONTACT - 1000027159×2
  • 31000027368Not stocked
    central plug×1
  • 41000027386
    $6.47
    PLUG - 1000027386×1
  • 51000027431Not stocked
    bushing housing×1
  • 61000027445Not stocked
    pin housing×1
  • 71000027449Not stocked
    housing×1
  • 81000030446Not stocked
    plug×11
  • 91000051990Not stocked
    bushing contact×6
  • 101000052672Not stocked
    seal×6
  • 111000085032
    $1.15
    plug locking - 1000085032×1
  • 121000086664
    $4.92
    plug sleeve housing - 1000086664×2
  • 131000375997Not stocked
    fixing bracket×1
  • 141000095323
    $3.39
    plug sleeve housing - 1000095323×1
  • 151000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • 161000095370
    $0.66
    plug sleeve - 1000095370×16
  • 171000095371Not stocked
    plug sleeve×4
  • 181000103753
    $3.01
    Timer Contact - 1000103753×14
  • 191000103949
    $5.74
    bushing housing - 1000103949×3
  • 201000104286
    $11.39
    bushing housing - 1000104286×1
  • 211000104287
    $0.99
    wedge - 1000104287×1
  • 221000104732
    $3.06
    CONTACT - 1000104732×14
  • 231000104738
    $1.51
    seal - 1000104738×14
  • 241000104740
    $1.41
    lock plug - 1000104740×14
  • 251000104902
    $18.69
    CONTACT-HOUSING - 1000104902×1
  • 261000104903
    $4.90
    CONTACT-HOUSING - 1000104903×1
  • 271000105112
    $16.59
    bushing housing - 1000105112×1
  • 281000105114
    $1.31
    wedge - 1000105114×1
  • 291000105116
    $15.37
    Pin housing - 1000105116×1
  • 301000107750
    $5.41
    plug sleeve - 1000107750×4
  • 311000110449
    $2.46
    plug bushing - 1000110449×1
  • 321000128773
    $0.32
    Plug - 1000128773×2
  • 331000148271
    $30.88
    Pin housing - 1000148271×1
  • 341000148272
    $2.17
    Pin housing - 1000148272×2
  • 351000148274
    $1.84
    bushing contact - 1000148274×15
  • 361000155227
    $2.27
    Pin housing - 1000155227×1
  • 371000161431
    $0.66
    Plug - 1000161431×20
  • 381000166644
    $1.45
    Pin contact - 1000166644×13
  • 391000228723
    $10.08
    RUBBER CAP - 1000228723×1
  • 401000236298
    $2.30
    pin contact - 1000236298×41
  • 411000240116
    $39.91
    Pin housing - 1000240116×1
  • 421000254182
    $29.32
    bushing housing - 1000254182×1
  • 431000258052
    $3.23
    plug bushing - 1000258052×1
  • 441000309284Not stocked
    bushing contact×8
  • 451000325527Not stocked
    bushing contact×13
  • 461000325528
    $16.47
    CONTACT-HOUSING - 1000325528×1
  • 471000347542Not stocked
    housing×1
  • 481000359612Not stocked
    plug connection×10
  • 491000362407Not stocked
    pin contact×4
  • 501000362527Not stocked
    bushing contact×7
  • 511000365063Not stocked
    round socket×3
  • 521000375997Not stocked
    fixing bracket×7
  • 531000395384Not stocked
    blind plug×2
  • 541000432365Not stocked
    timer contact×3
  • 551000437205
    $4.36
    plug - 1000437205×1
  • 561000445655
    $1.00
    bushing contact - 1000445655×4
  • 571000479809Not stocked
    housing×1
  • 581000483805
    $5.40
    Connector - 1000483805×2
  • 591000505372
    $387.79
    cable - 1000505372×1
  • 601000519644Not stocked
    bushing housing×1
  • 611000519666Not stocked
    lock ring×1
  • 621000522116Not stocked
    resistor×2
