EZ26e

EZ26E UNDERCARRIAGE Diagram

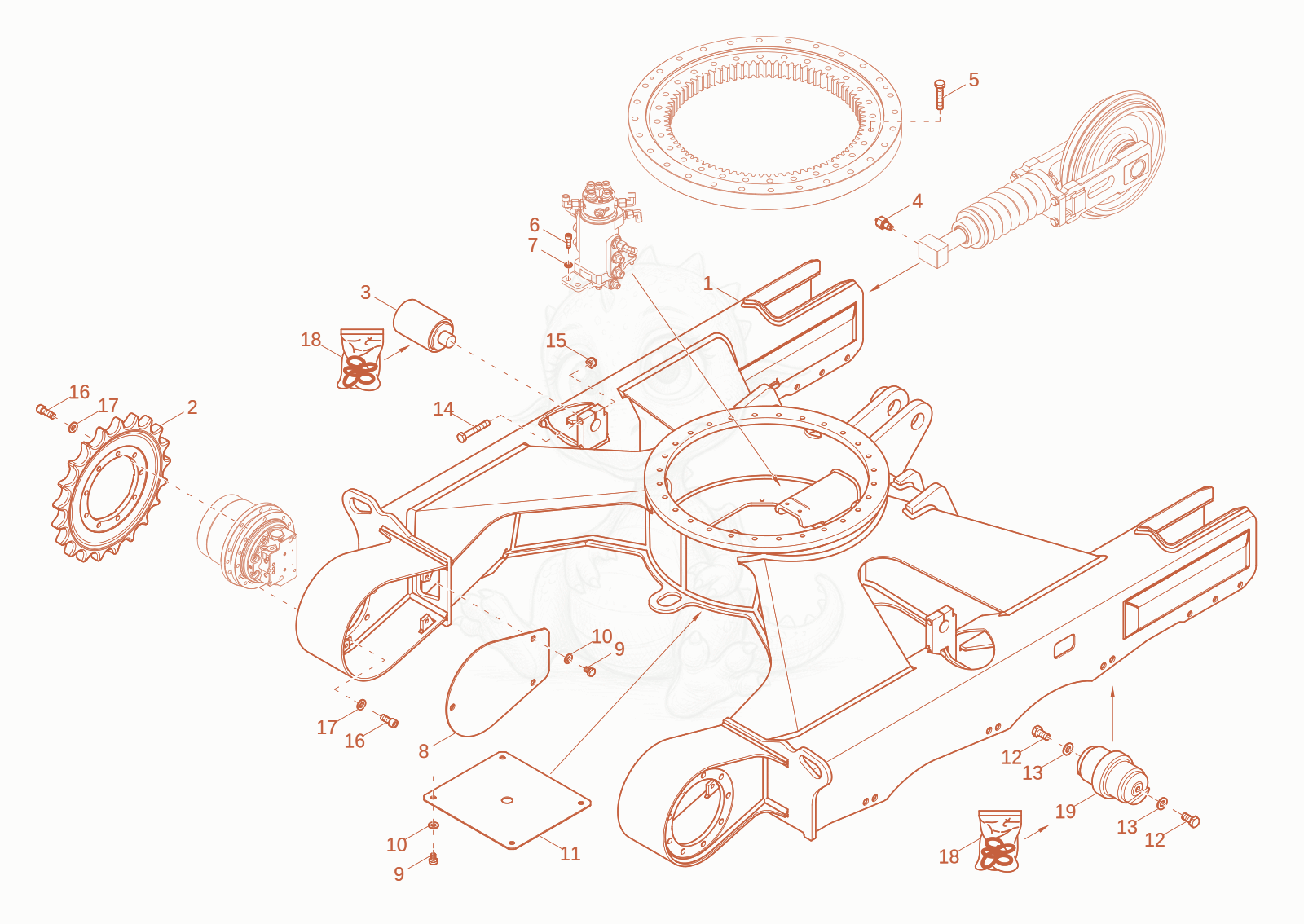

Exploded parts diagram of the UNDERCARRIAGE of a Wacker Neuson EZ26E, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000553032Not stocked
    undercarriage×1
  • 21000507206Not stocked
    drive wheel×2
  • 31000129002Not stocked
    support roller×2
  • 41000232922
    $48.39
    non return valve - 1000232922×2
  • 51000082431
    $2.18
    6-Point screw M12x60-10.9Dacro500-DIN933 - 1000082431×28
  • 61000019450Not stocked
    cheese head screw×4
  • 71000426229Not stocked
    lock washer×4
  • 81000566224Not stocked
    cover plate×2
  • 91000013009Not stocked
    hex screw×10
  • 101000094974
    $0.70
    washer M10-DIN134 - 1000094974×10
  • 111000501780
    $128.23
    COVER - 1000501780×1
  • 121000020983Not stocked
    hex screw×12
  • 131000426232Not stocked
    lock washer×12
  • 141000082353
    $2.36
    HEX SCREW - 1000082353×2
  • 151000357536Not stocked
    hexagon nut×2
  • 161000085502
    $0.88
    allen screw M10x30 Geomet 500A DIN912 - 1000085502×34
  • 171000426230Not stocked
    lock washer×34
  • 181000068854Not stocked
    seal kit×8
  • 191000374584Not stocked
    roller×6
