EZ50

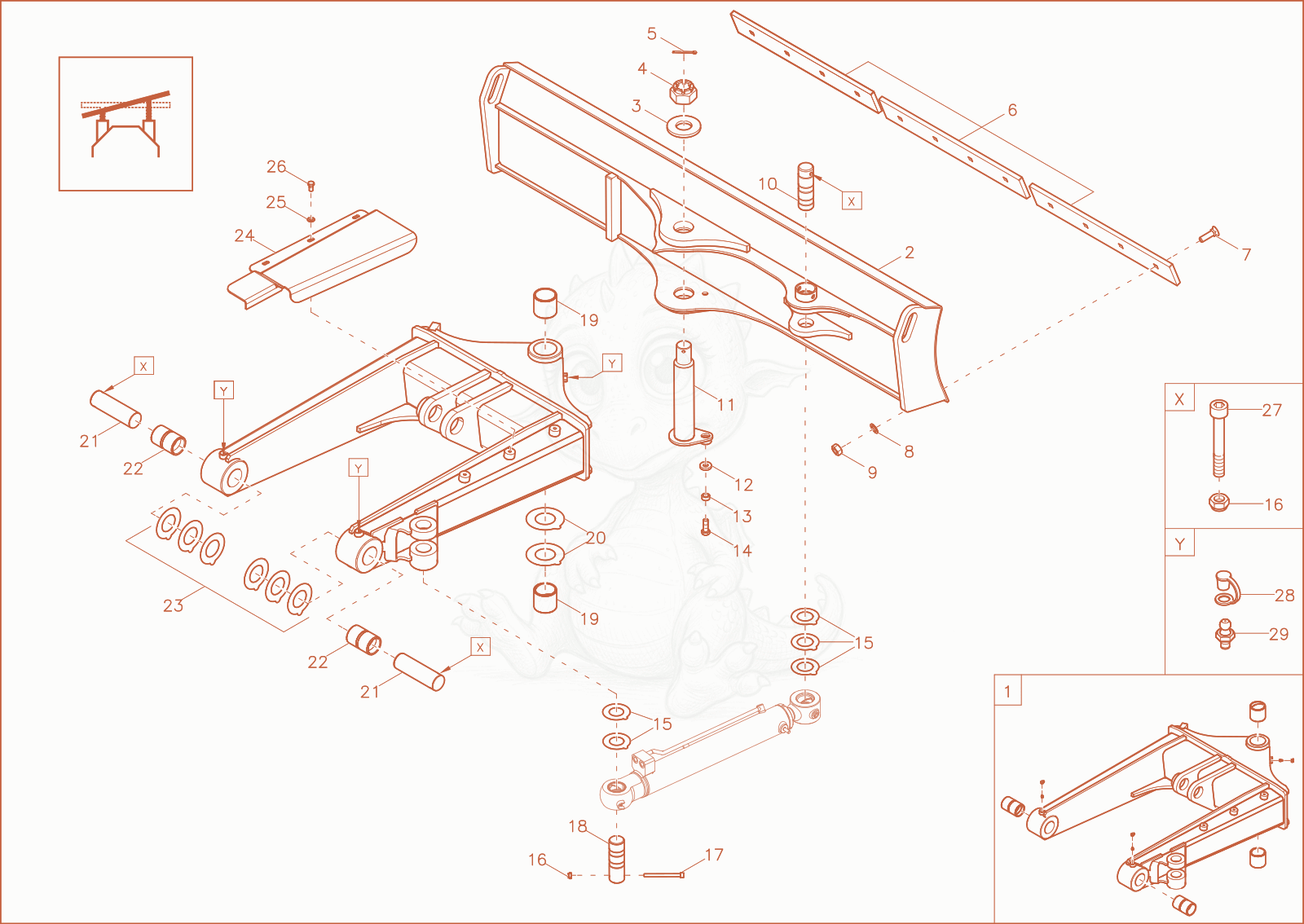

EZ50 blade cylinder (OPTION) Diagram

Exploded parts diagram of the blade cylinder (OPTION) of a Wacker Neuson EZ50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000450238Not stocked
    LINKING PREMOUNTED×1
  • 21000450294Not stocked
    dozer blade×1
  • 31000381463Not stocked
    washer×1
  • 41000015419Not stocked
    crown nut×1
  • 51000280889
    $1.91
    DINENISO1234-6,3x63-A2C - 1000280889×1
  • 61000409101
    $91.43
    Blade - 1000409101×3
  • 71000374873Not stocked
    screw×12
  • 81000015453Not stocked
    northlock disc×12
  • 91000357537Not stocked
    hexagon nut×12
  • 101000446591
    $77.02
    PIN - 1000446591×1
  • 111000446573
    $241.24
    PIN - 1000446573×1
  • 121000085610
    $0.43
    WASHER - 1000085610×1
  • 131000157155
    $4.52
    WASHER - 1000157155×1
  • 141000085404
    $0.93
    hex screw - 1000085404×1
  • 151000440744
    $5.01
    BRACKET - 1000440744×5
  • 161000357535Not stocked
    hexagon nut×3
  • 171000085471
    $1.56
    cheese head screw - 1000085471×1
  • 181000446590
    $76.49
    PIN - 1000446590×1
  • 191000083203
    $29.21
    steel bushing - 1000083203×2
  • 201000146846
    $3.64
    shim - 1000146846×2
  • 211000298687
    $104.93
    Pindm55X182 1000298687×2
  • 221000392119Not stocked
    steel bushing×2
  • 231000146845
    $4.57
    shim - 1000146845×6
  • 241000409202Not stocked
    protection plate×1
  • 251000049219Not stocked
    washer×3
  • 261000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×3
  • 271000013015Not stocked
    cheese head screw×3
  • 281000015480Not stocked
    cap grease nipple×5
  • 291000015476Not stocked
    grease nipple×5
