EZ50

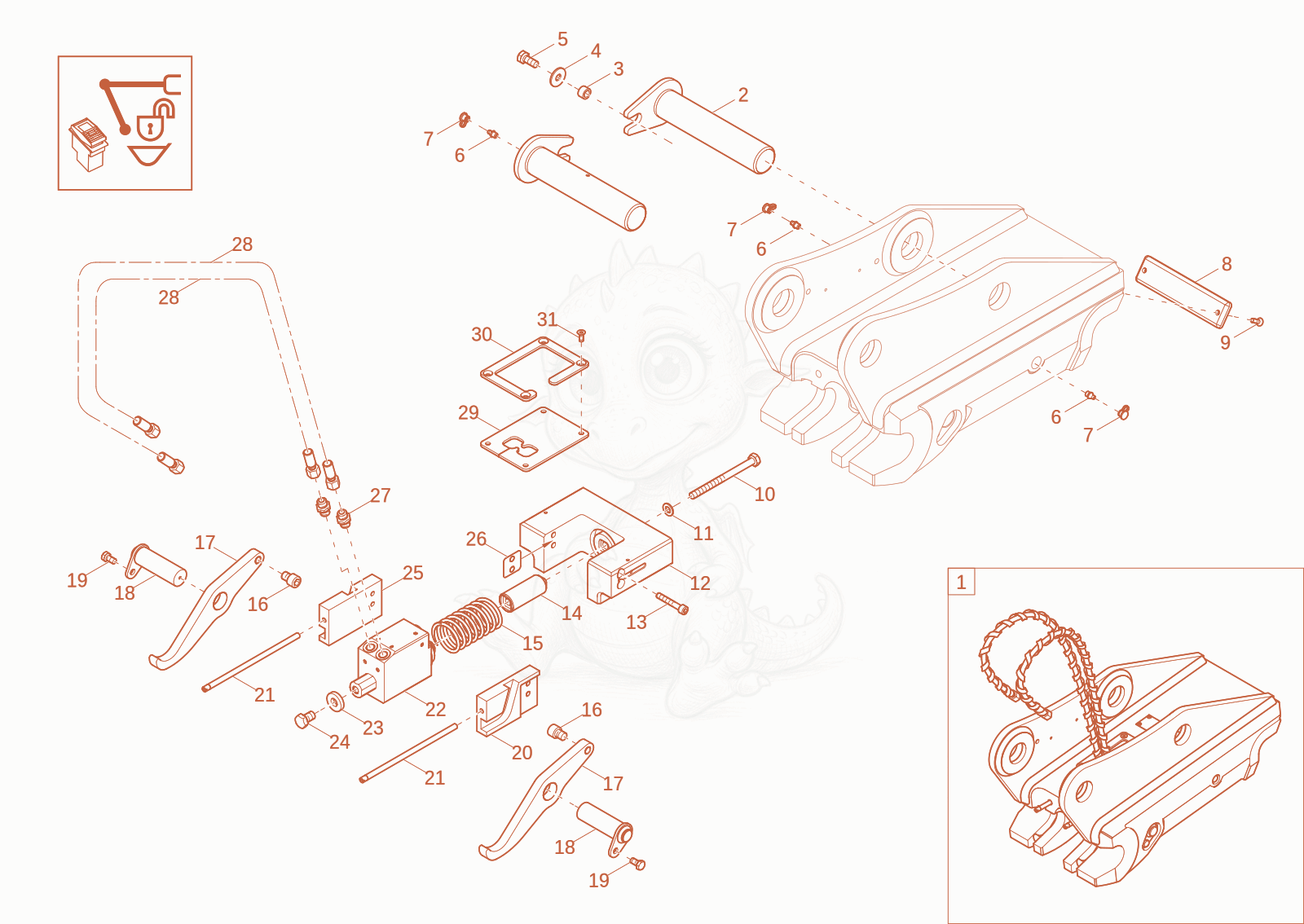

EZ50 HSWS Easy Lock (Option) Diagram

Exploded parts diagram of the HSWS Easy Lock (Option) of a Wacker Neuson EZ50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000488721Not stocked
    quick hitch×1
  • 21000412105Not stocked
    pin×2
  • 31000456812
    $5.45
    sleeve - 1000456812×2
  • 41000015454Not stocked
    washer×2
  • 51000015371Not stocked
    hex screw×2
  • 61000015476Not stocked
    grease nipple×2
  • 71000015480Not stocked
    cap grease nipple×2
  • 81000476598Not stocked
    protection plate×1
  • 91000469412
    $9.35
    screw - 1000469412×2
  • 101000484658Not stocked
    screw×1
  • 111000438116
    $1.19
    U-WASHER - 1000438116×1
  • 121000476592
    $369.61
    Snaper - 1000476592×1
  • 131000476535Not stocked
    screw×4
  • 141000476595
    $47.97
    rod - 1000476595×1
  • 151000476568Not stocked
    pressure spring×1
  • 161000449288Not stocked
    screw×2
  • 171000476594
    $149.11
    HOOK - 1000476594×2
  • 181000476597
    $47.63
    pin - 1000476597×2
  • 191000019136Not stocked
    hex screw×2
  • 201000467151
    $52.01
    insert - 1000467151×1
  • 211000476593
    $16.98
    rod - 1000476593×2
  • 221000467163
    $486.51
    cylinder - 1000467163×1
  • 231000085610
    $0.43
    WASHER - 1000085610×1
  • 241000085417
    $1.06
    hex screw - 1000085417×1
  • 251000467152
    $52.01
    insert - 1000467152×1
  • 261000501574
    $27.30
    washer - 1000501574×2
  • 271000015488Not stocked
    screw joint×2
  • 281000484942
    $83.80
    SLHYDR 20405,0PN8 0 PN8 0 L800,0K0 - 1000484942×2
  • 291000467150Not stocked
    rubber cover plate×1
  • 301000469058Not stocked
    clamping strap×1
  • 311000469411
    $1.08
    screw - 1000469411×4
