G100-GENERATOR, SKID, CUSTOM, DEERE T3

G100 Engine-Deere Diagram

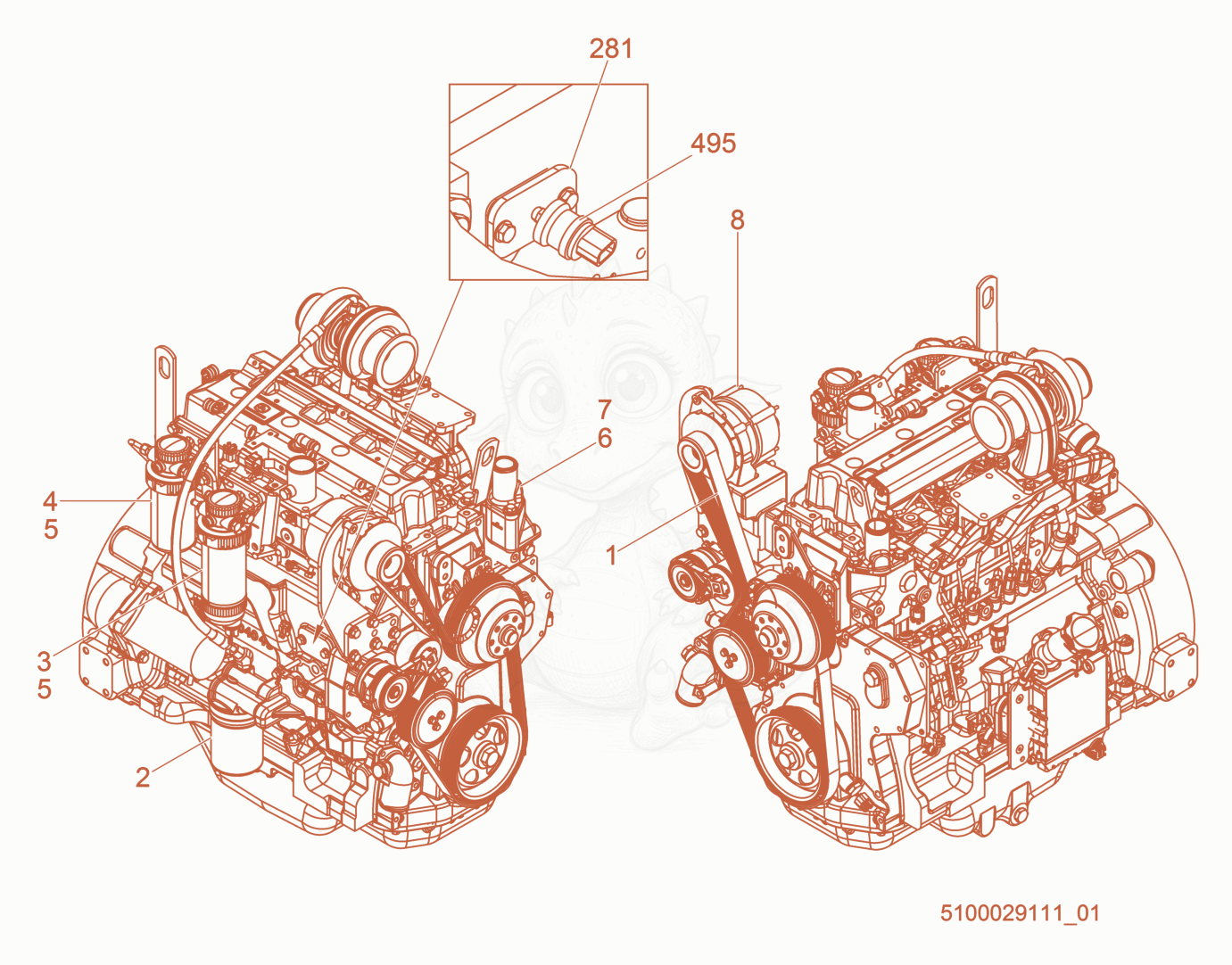

Exploded parts diagram of the Engine-Deere of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000213421
    $131.65
    BELT-FAN - 5000213421×1
  • 25000192453
    $60.94
    Oil element - 5000192453×1
  • 35200020511Not stocked
    Fuel filter×1
  • 45000213420
    $107.09
    FILTER-FUEL,SECONDARY - 5000213420×1
  • 55000163130
    $12.71
    Seal - 5000163130×2
  • 65000217830
    $86.86
    Thermostat - 5000217830×1
  • 75000217831
    $14.40
    GASKET,THERMOSTAT - 5000217831×1
  • 85000152172
    $1,183.45
    Alternator - 5000152172×1
  • 2815200010864Not stocked
    Plate×1
  • 4955100015144Not stocked
    Pressure switch×1
