G100-GENERATOR, SKID, CUSTOM, DEERE T3

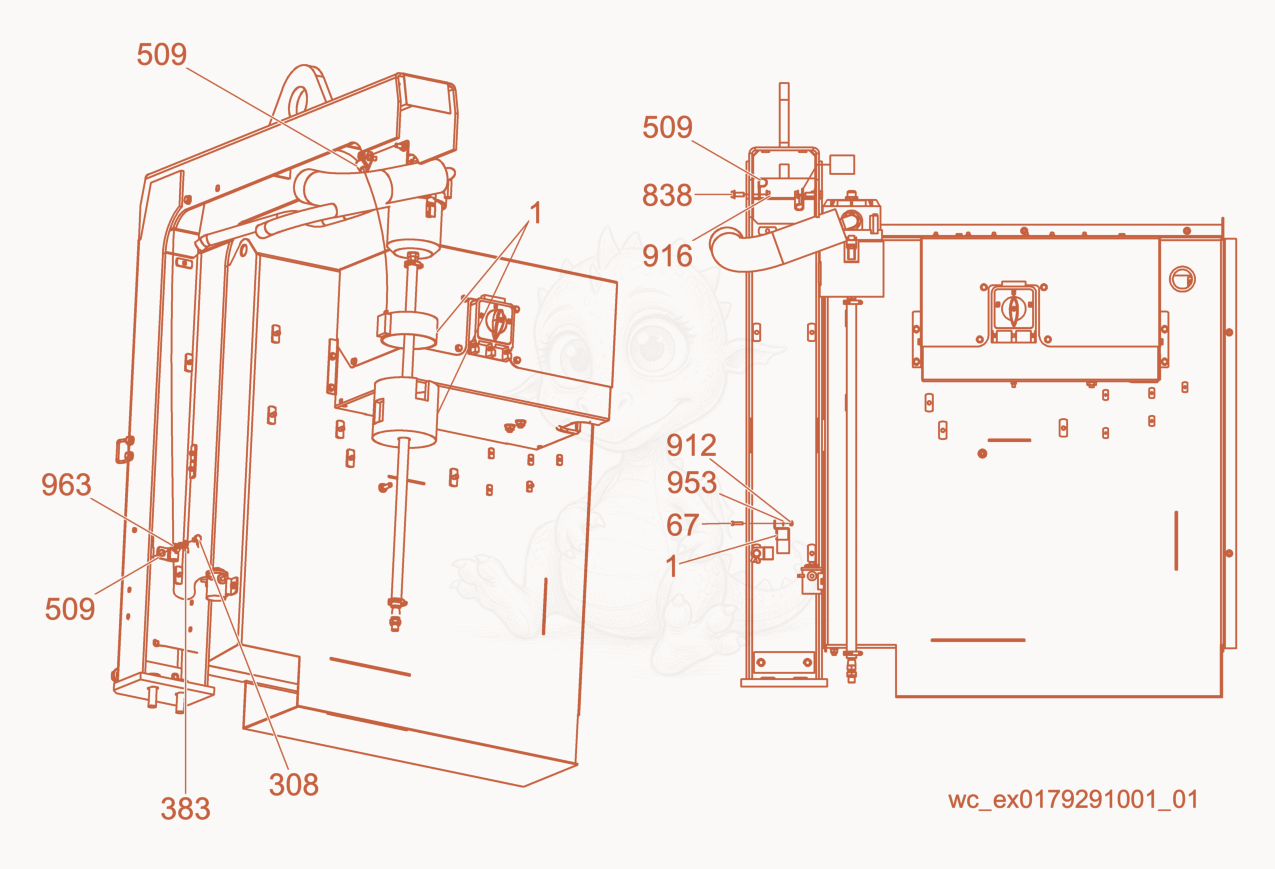

G100 Option-Racor Heater Diagram

Exploded parts diagram of the Option-Racor Heater of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000179255
    $494.43
    Heater-Racor - 5000179255×1
  • 675000011475
    $0.06
    SCREW M5 X 20 HX.HD. - 5000011475×1
  • 3085000012360
    $0.12
    SCREW M8 X 12 HX.HD. - 5000012360×1
  • 3835000077989
    $0.62
    TERMINAL-RING 16-14 5/16 ID - 5000077989×3
  • 5095000157071
    $1.94
    CLAMP-TUBE CLIP - 5000157071×3
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×1
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×1
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×1
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×1
