G100

G100 Generator/Engine Diagram

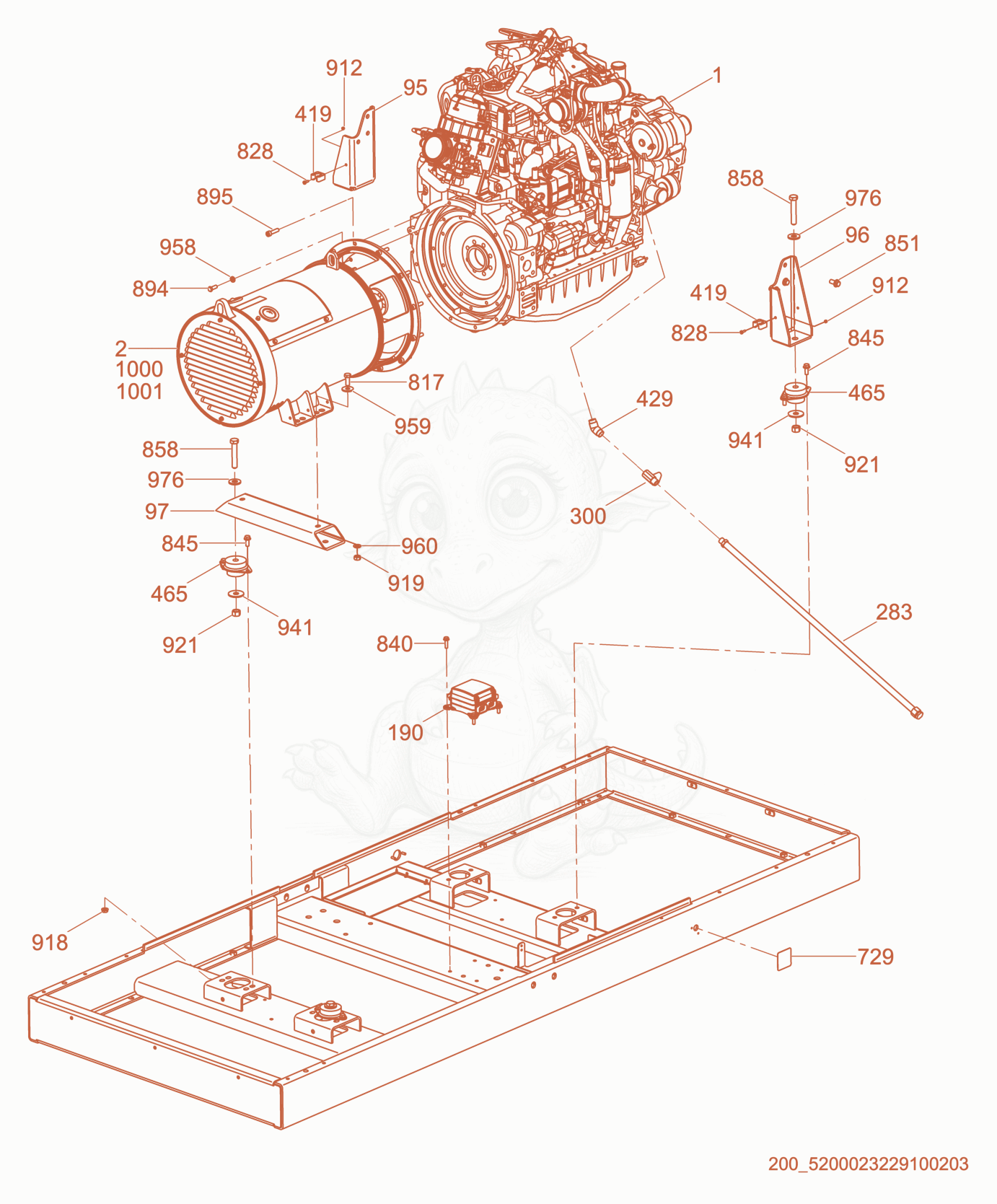

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100033302
    $46,044.09
    ENGINE-CUMMINS QSB5-G11,169HP,T4F,G100 - 5100033302×1
  • 25100034293
    $12,400.70
    G100 T4F Generator Complete - 5100034293×1
  • 955200003596Not stocked
    Mount-engine×1
  • 965200003714Not stocked
    Mount-engine×1
  • 1905200016619Not stocked
    Module×1
  • 2835000176217
    $39.37
    HOSE-ASSY,DRAIN - 5000176217×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 4195000153747
    $4.20
    CLIP-SPRING HOLDER - 5000153747×2
  • 4295000154306
    $10.27
    FITTING 1/2 STREET 45 - 5000154306×1
  • 4655000153065
    $53.87
    SHOCKMOUNT-RUBBER,690LBS - 5000153065×4
  • 7295200022821Not stocked
    Label×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
  • 8405000085957
    $1.51
    SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×4
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×8
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
  • 8585000011382
    $2.18
    SCREW M16 X 90 HX.HD. - 5000011382×4
  • 8945000025573Not stocked
    Hexagonal head cap screw×8
  • 8955000171561
    $3.45
    SCREW M10 X 50 HX HD,10.9 PLN - 5000171561×12
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×2
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×4
  • 9215000155244
    $0.68
    NUT M16-8.8 HX HD ZP - 5000155244×4
  • 9415000153067
    $44.42
    WASHER-SNUBBER - 5000153067×4
  • 9585000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×10
  • 9765000153532
    $3.16
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×4
