G100

G100 Main Breaker Diagram

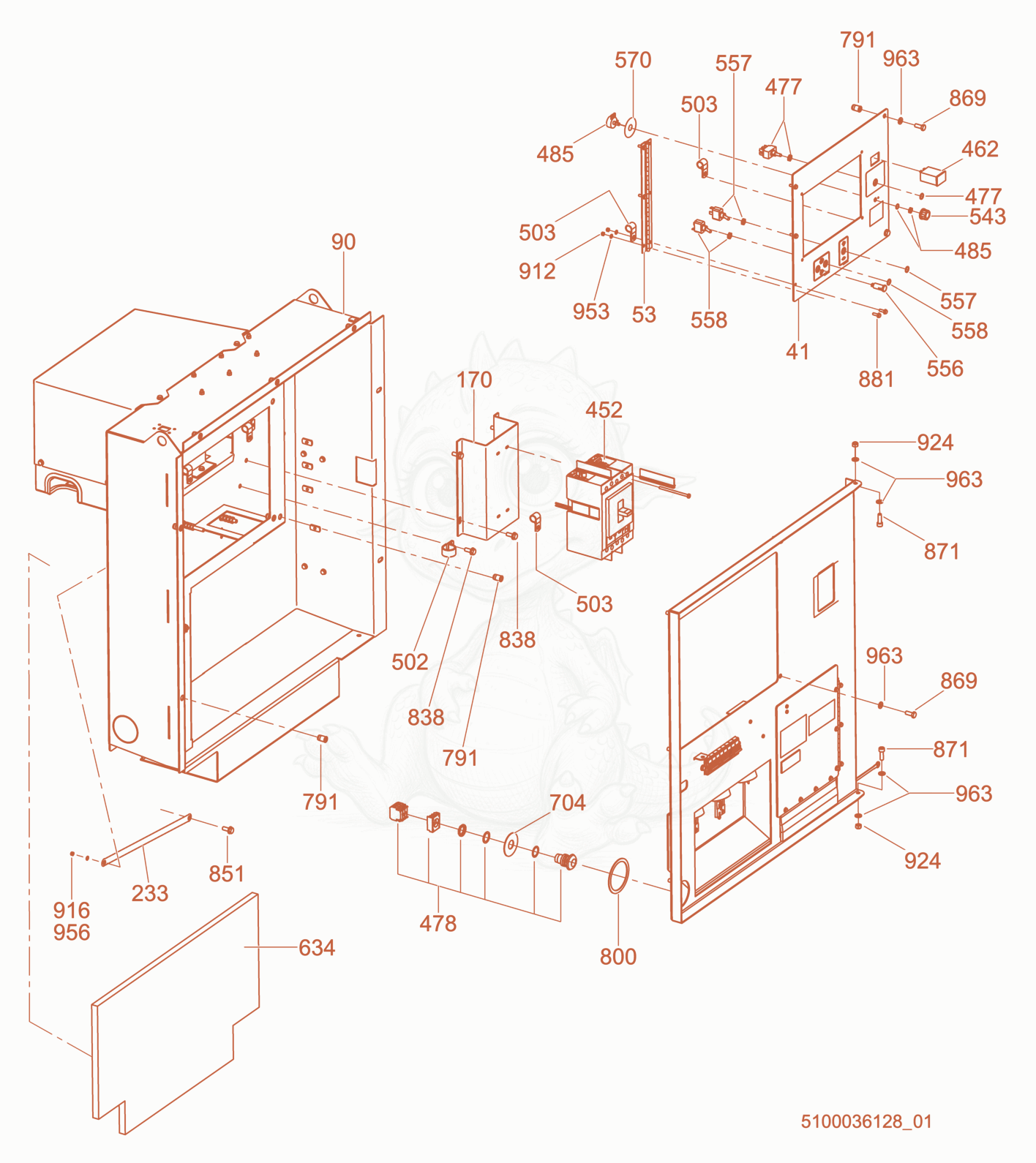

Exploded parts diagram of the Main Breaker of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 415200023891Not stocked
    Controller door×1
  • 535000174572
    $37.55
    HINGE-CONTRILLER DOOR,ML - 5000174572×1
  • 905000173699
    $1,038.92
    BOX-CTRL,WELDMENT,ML P-5000176420 - 5000173699×1
  • 1705200024185Not stocked
    Bracket×1
  • 2335000174543
    $30.68
    STRAP-GROUND,1/2 STUD,18 - 5000174543×1
  • 4525100042450
    $3,271.95
    BREAKER-SCHNEIDER JDF36250U31X,250A 24V - 5100042450×1
  • 4625000174668
    $104.75
    HOURMETER,MECHANICAL - 5000174668×1
  • 4785000165439
    $139.33
    SWITCH-E STOP ASSM,2P-NC,1P-NO - 5000165439×1
  • 4855100015085
    $119.22
    Wiring Harness-Voltage Adj,10k Ohm POT - 5100015085×1
  • 5025000183449
    $1.47
    CLAMP-TUBE CLIP 1 W/OUT VNYL - 5000183449×1
  • 5035000153746
    $1.14
    CLAMP-TUBING .625 - 5000153746×3
  • 5435000183016
    $4.96
    KNOB-VOLTAGE ADJUST - 5000183016×1
  • 5565200004727
    $18.18
    Light-indicator,amber - 5200004727×1
  • 5575200004728
    $28.58
    Switch-toggle,SPST, ON/OFF - 5200004728×2
  • 5585200004729
    $28.05
    Switch-toggle,SPST, (ON)/OFF - 5200004729×1
  • 5705000153523
    $8.44
    GUARD-POTENTIOMETER - 5000153523×1
  • 6345100017410
    $46.90
    INSULATOR-CONTROL BOX, ML - 5100017410×1
  • 7045000155460
    $148.82
    LABEL-EMERGENCY STOP - 5000155460×1
  • 7915000085454
    $0.85
    INSERT M8,THREADED - 5000085454×12
  • 8005000171541
    $5.91
    SEAL-EMERGENCY STOP - 5000171541×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×5
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×1
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×4
  • 8715000051543
    $1.03
    SCREW M8 X 25 ST,SOC.HD - 5000051543×5
  • 8815000159811
    $0.95
    SCREW M5X16 HX HD SERR FLG ZP - 5000159811×3
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×6
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×1
  • 9265000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×6
  • 9565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×1
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×9
