G100 Generator, Cold Weather T4i

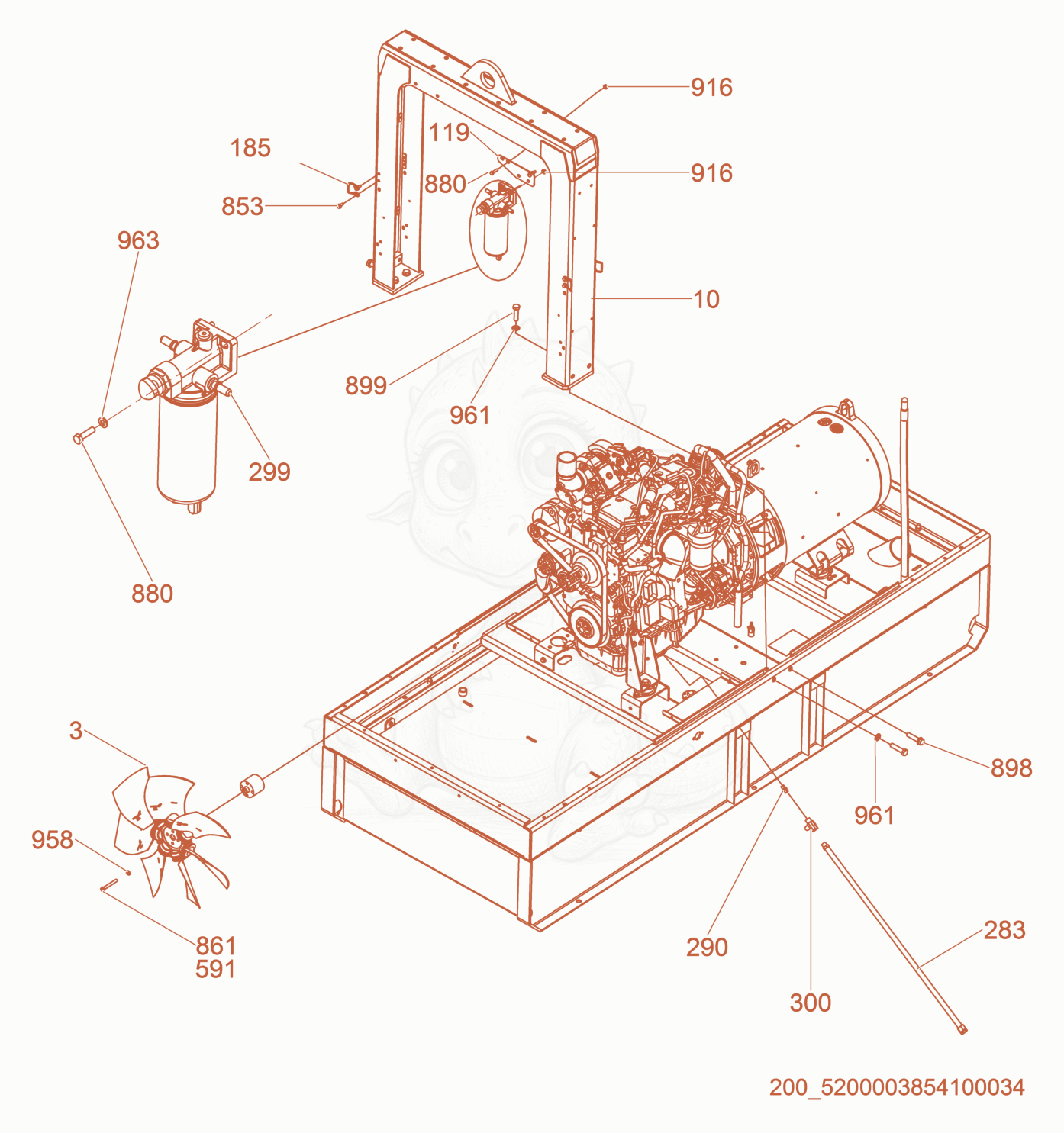

G100 Generator/Engine Diagram

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35200005450
    $430.74
    FAN-26" SICKLE,20°,G100 - 5200005450×1
  • 105200003581
    $2,833.48
    FRAME-LIFT STRUCT,ML T4i, P- 5000112007 - 5200003581×1
  • 1195200007556
    $49.74
    BRACKET-FUEL WATR SEPARATOR P-5000176420 - 5200007556×1
  • 1855000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×4
  • 2835000176217
    $39.37
    HOSE-ASSY,DRAIN - 5000176217×1
  • 2905000153962
    $40.66
    FITTING M22 X 1/2 NPT - 5000153962×1
  • 2995000183085
    $10.99
    FITTING-M14-1.5 X 3/8 BARB - 5000183085×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
  • 8615000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×4
  • 8805000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×4
  • 8985000011378
    $4.98
    SCREW M16 X 70 HX.HD. - 5000011378×4
  • 8995000011517
    $4.94
    SCREW M16 X 60 HX.HD. - 5000011517×4
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 9585000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×4
  • 9615000010618
    $0.28
    WASHER B17 FLAT - 5000010618×8
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×2
