G100 Generator, Cold Weather T4i

G100 Option-Radiator Shutter Diagram

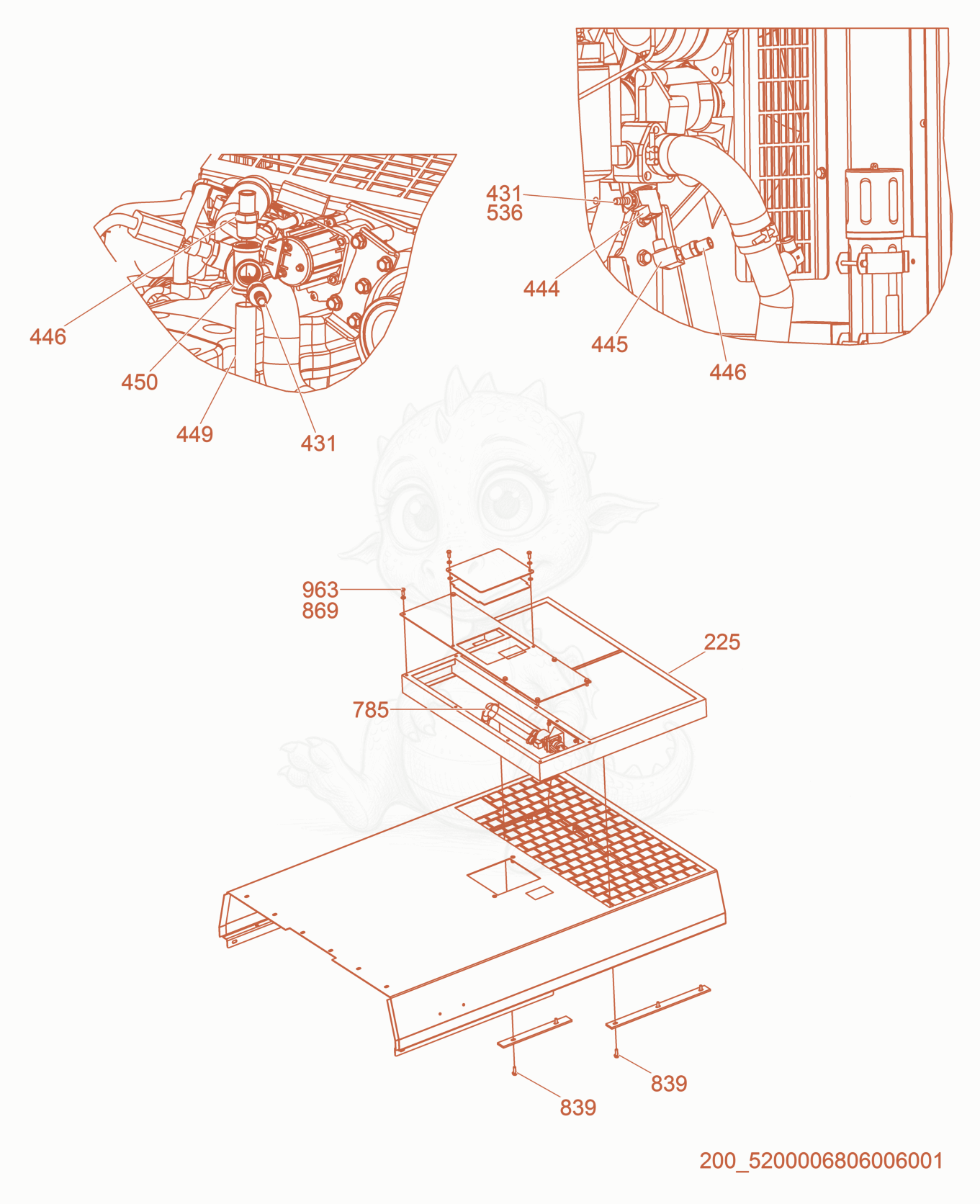

Exploded parts diagram of the Option-Radiator Shutter of a Wacker Neuson G100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 2255200006827
    $3,751.12
    Baffle-Rad Shutter,ML T4i - 5200006827×1
  • 4315200018521Not stocked
    Fitting×2
  • 4445000162825
    $31.09
    FITTING-STREET TEE,1/2 NPT - 5000162825×1
  • 4455000159388
    $12.00
    FITTING-90 DEG.1/2 STREET ELBW - 5000159388×1
  • 4465000159865
    $5.92
    FITTING 5/8 ID HOSE X 1/2 PIPE - 5000159865×1
  • 4495200006463
    $19.27
    Fitting-nipple 1/2 NPT X 5, brass - 5200006463×1
  • 4505200018523Not stocked
    Fitting×1
  • 5365000180084
    $0.96
    CLAMP-WORM,9/16X1-1/16 ,SST - 5000180084×1
  • 6145000161461
    $9.12
    GASKET-RUBBER 1/8 TX3/4 WX6'L - 5000161461×3
  • 7855000047388
    $0.18
    CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×4
  • 8395000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×5
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×6
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×6
