G120 Generator,Hertz,Cold Weather

G120 Fuel Fill Corner Diagram

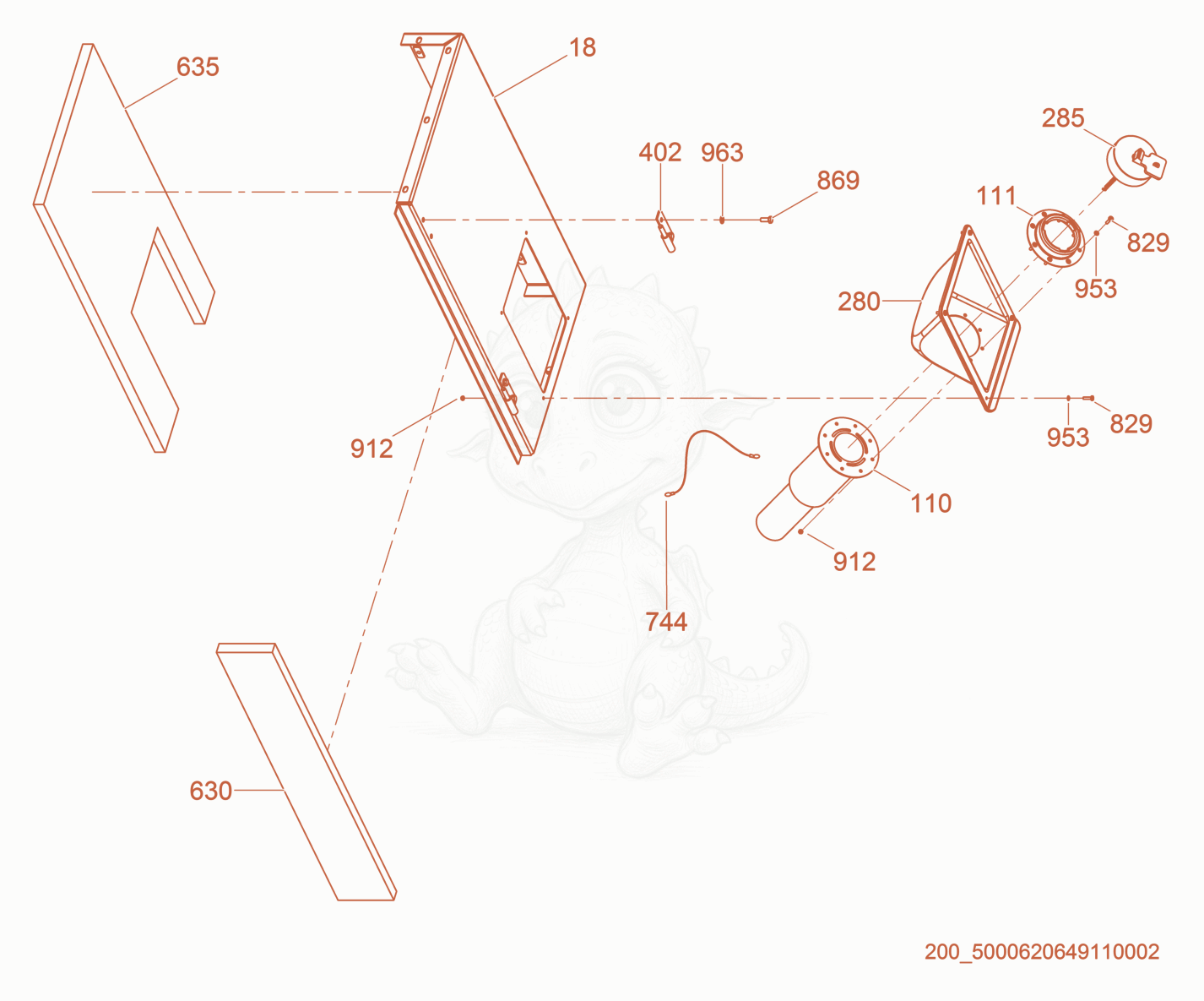

Exploded parts diagram of the Fuel Fill Corner of a Wacker Neuson G120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 185200001426
    $266.57
    PANEL-LR SIDE,ML,YELLOW P-5000112006 - 5200001426×1
  • 1105000171488
    $194.99
    TUBE-FILLER WELDMENT P- 5000112007 - 5000171488×1
  • 1115000171487
    $217.22
    TUBE-FUEL CAP ADAPTOR P- 5000112007 - 5000171487×1
  • 2805000171136
    $29.36
    PORT-FUEL FILL - 5000171136×1
  • 2855000171137
    $181.75
    CAP-FUEL FILL - 5000171137×1
  • 4025000164972
    $25.15
    HINGE-R.H.,PIN LEAF - 5000164972×2
  • 6305000174503
    $24.21
    INSULATOR-REAR SIDE,ML - 5000174503×1
  • 6355000174504
    $106.89
    INSULATOR-CORNER,LR,ML - 5000174504×1
  • 7445200013415Not stocked
    Wire-ground×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×12
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×4
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×12
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×12
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×4
