G120 Generator,Hertz,Cold Weather

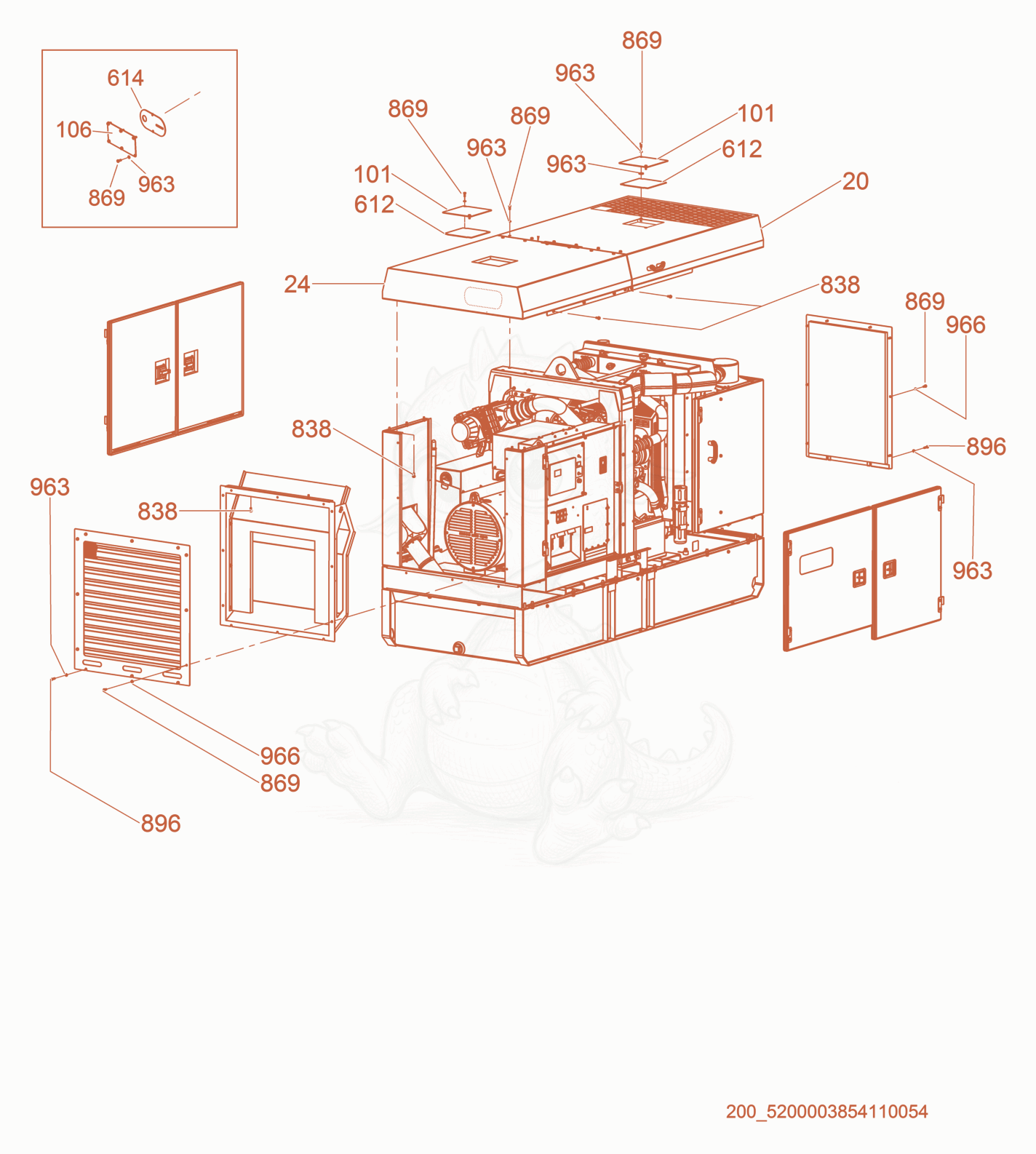

G120 Sheet Metal Assembly Diagram

Exploded parts diagram of the Sheet Metal Assembly of a Wacker Neuson G120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205200003712
    $2,152.87
    PANEL-ROOF,FRNT,ML T4i, YEL P-500011200 - 5200003712×1
  • 245200023251Not stocked
    Roof panel×1
  • 1015200001418
    $22.07
    PANEL-RADIATOR COVER,YELLW P-5000112006 - 5200001418×2
  • 1065100015375
    $19.53
    PANEL-TELEMATICS ACCESS P-5000112006 - 5100015375×1
  • 6125000179156
    $14.12
    GASKET-RADIATOR COVER - 5000179156×2
  • 6145100015120
    $3.82
    GASKET- TELEMATICS PORT - 5100015120×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×24
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×39
  • 8965000173783
    $0.37
    SCREW M8 X 35 HX HD,A2 304 - 5000173783×5
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×31
  • 9665000160626
    $0.06
    WASHER-LOCK M8 INT.STAR SST - 5000160626×17
