G120 Generator,Hertz,Cold Weather

G120 Radiator Hoses Diagram

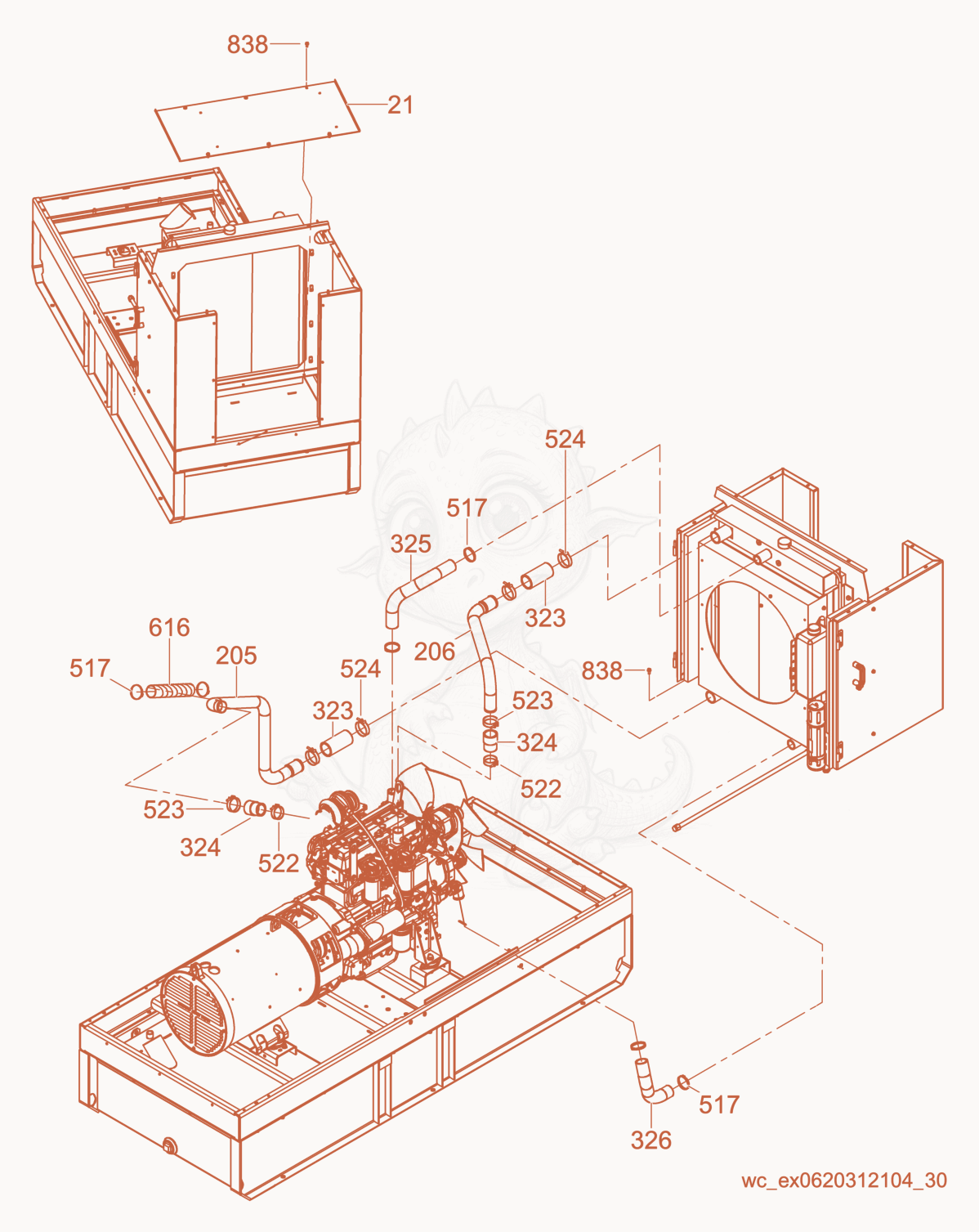

Exploded parts diagram of the Radiator Hoses of a Wacker Neuson G120, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 215000173722
    $173.66
    PANEL-SPLASH,ML P-5000176420 - 5000173722×1
  • 2055000170690
    $119.45
    PIPE-CAC TURBO,G120 - 5000170690×1
  • 2065000170696
    $135.88
    PIPE-CAC INTAKE,G120 - 5000170696×1
  • 3235000156299
    $135.54
    HOSE-CAC,2.5 - 5000156299×2
  • 3245000156300
    $54.64
    HOSE-CAC,2 X 2.25 REDUCER - 5000156300×2
  • 3255000156241
    $85.53
    HOSE-RADIATOR,TOP,G160 - 5000156241×1
  • 3265000170698
    $33.10
    HOSE-RADIATOR,2.0 ID X 17.0 L - 5000170698×1
  • 5175000154344
    $2.64
    CLAMP-WORM DRIVE 2.06 -3 - 5000154344×6
  • 5225000028698Not stocked
    T-bolt clamp×2
  • 5235000156290
    $7.24
    CLAMP-2 5/8 NOM,T-BOLT - 5000156290×2
  • 5245000174640
    $7.72
    CLAMP-2 3/4 NOM,T-BOLT - 5000174640×2
  • 6165000179810
    $87.45
    INSULATOR-EXH SOCK 1.3 FT - 5000179810×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×12
