G125-GENERATOR,SKID BASE

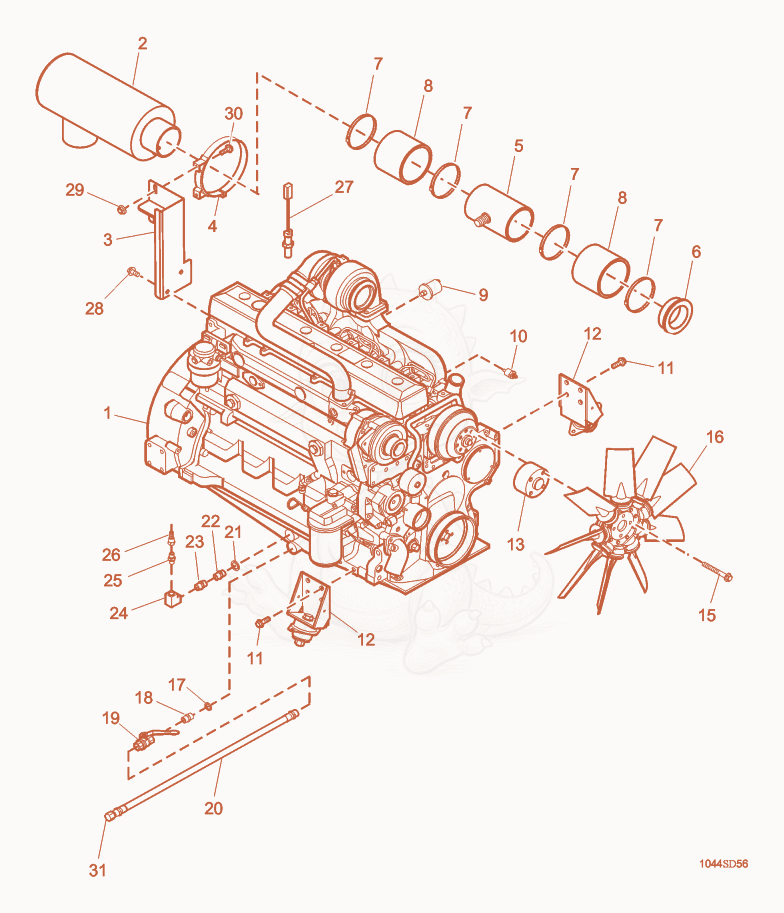

G125 Engine cpl. Diagram

Exploded parts diagram of the Engine cpl. of a Wacker Neuson G125, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000152044
    $48,012.46
    Engine - 5000152044×1
  • 25000152045Not stocked
    Filter×1
  • 35000152046Not stocked
    Air filter bracket×1
  • 45000152047Not stocked
    Clamp×1
  • 55000152048Not stocked
    Hose×1
  • 65000152049Not stocked
    Insert×1
  • 75000152050Not stocked
    Clamp×4
  • 85000152051Not stocked
    Hose×2
  • 95000115163Not stocked
    Oil sensor×1
  • 105000115164Not stocked
    Sensor×1
  • 115000115638Not stocked
    Screw×6
  • 125000152052
    $716.45
    MOUNT-ENGINE - 5000152052×2
  • 135000152053
    $317.43
    FAN-SPACER - 5000152053×1
  • 155000152054Not stocked
    Screw×4
  • 165000152055Not stocked
    Fan×1
  • 175000152056
    $18.35
    SEAL-M18 - 5000152056×1
  • 185000115809Not stocked
    Fitting×1
  • 195000115813Not stocked
    Valve×1
  • 205000115811Not stocked
    Oil drain×1
  • 215000152057
    $25.60
    SEAL-M22 - 5000152057×1
  • 225000115810Not stocked
    Adapter×1
  • 235000152058Not stocked
    Reducing fitting×1
  • 245000152059Not stocked
    Elbow×1
  • 255000115325Not stocked
    Drain×1
  • 265000115360Not stocked
    Fitting×1
  • 275000115162Not stocked
    Sensor×1
  • 285000115613Not stocked
    Screw×2
  • 295000152032Not stocked
    Lock washer×2
  • 305000115609Not stocked
    Screw×2
  • 315000115812Not stocked
    Oil tank cap×1
