G125-GENERATOR,SKID BASE

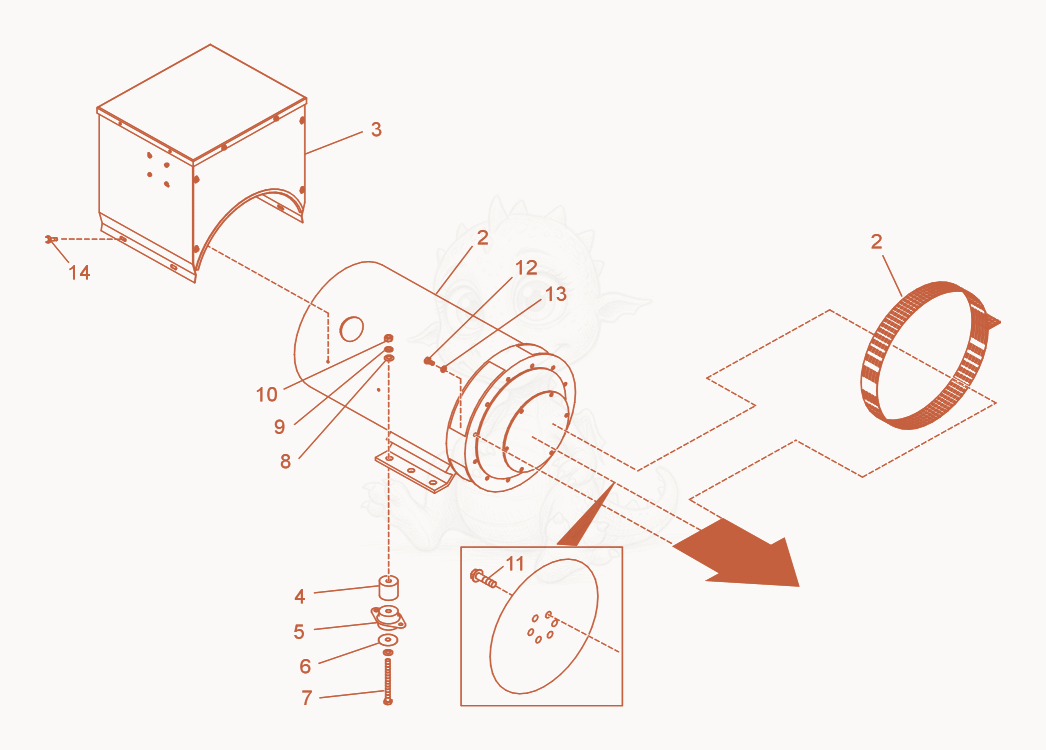

G125 Engine/Generator cpl. Diagram

Exploded parts diagram of the Engine/Generator cpl. of a Wacker Neuson G125, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000152042
    $52,906.29
    ENGINE-ASSY. - 5000152042×1
  • 25000152068Not stocked
    Generator×1
  • 35000152069Not stocked
    Generator box×1
  • 45000152070
    $95.89
    SPACER-GENERATOR - 5000152070×2
  • 55000152071Not stocked
    Shockmount×2
  • 65000152072Not stocked
    Washer×2
  • 75000152073Not stocked
    Screw×2
  • 85000152094Not stocked
    Washer×2
  • 95000152075Not stocked
    Lock washer×2
  • 105000152076Not stocked
    Nut×2
  • 115000115736Not stocked
    Screw×12
  • 125000152077Not stocked
    Screw×8
  • 135000152078Not stocked
    Washer×8
  • 145000115968Not stocked
    Screw×4
