G14 Generator, Standard T4

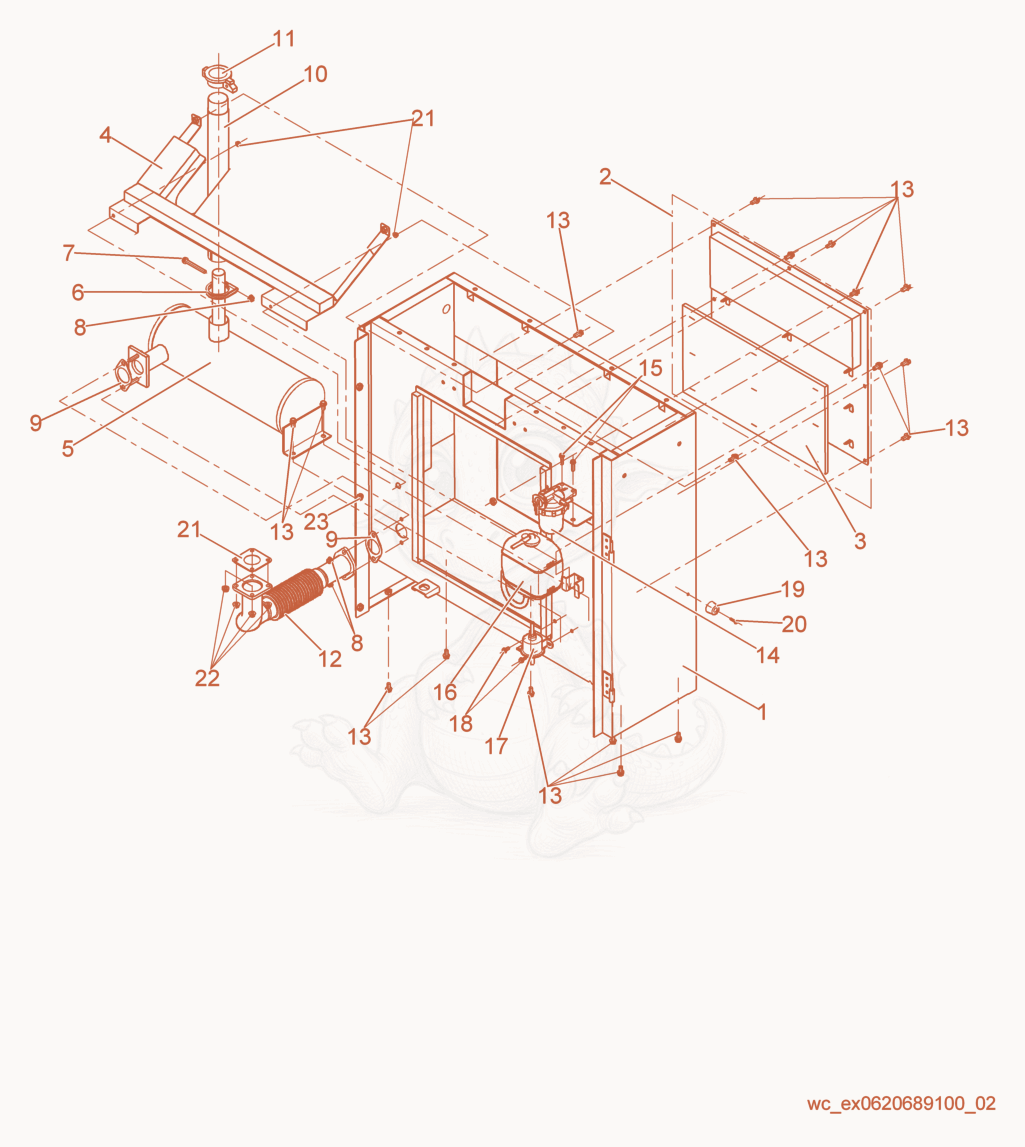

G14 Rear Enclosure w/Fuel Filter/Muffler Diagram
- FRAME-REAR - 5000179459×1
- PANEL CPL.-REAR - 5000179463×1
- Insulator - 5000179580×1
- BRACKET-MUFFLER - 5000179462×1
- Muffler - 5000179517×1
- NLA CLAMP-PIPE CPL. - 5000179489×1
- Bolt - 5000179433×1
- NUT-FLANGE - 5000179590×3
- GASKET-MUFFLER - 5000179491×2
- PIPE-EXHAUST - 5000179520×1
- CAP-RAIN,EXHAUST - 5000179521×1
- Tube cpl. - 5000179559×1
- BOLT M8 X 16 - 5000171855×18
- FILTER CPL.-FUEL - 5000179490×1
- SCREW-CAP,HEX HD - 5000171724×2
- Tank cpl. - 5000179667×1
- PUMP CPL.-FUEL - 5000179726×1
- BOLT-FLANGE M6 X 14 - 5000179581×2
- Grommet - 5000179573×1
- SCREW M4 X 20 - 5000179707×1
- Seal - 5000179500×1
- Nut - 5000179497×4
- NUT-FLANGE - 5000179589×2
