G14 Generator, Standard T4

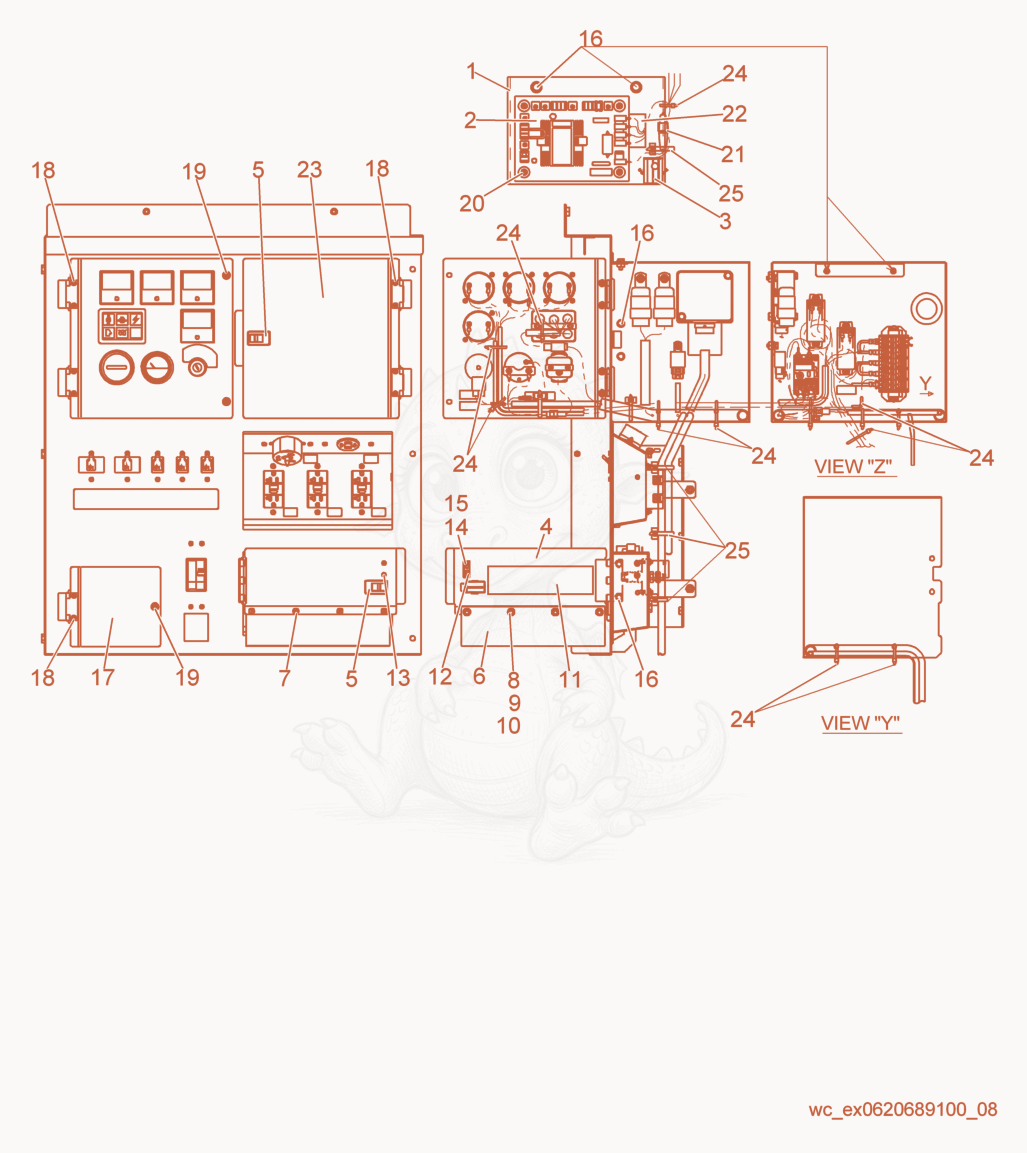

G14 Control Panel cpl. (1) Diagram
- Support - 5200000232×1
- Voltage regulator - 5200000235×1
- Wiring Harness - 5000179504×1
- Terminal cover cpl. - 5000179551×1
- LATCH-FLUSH MOUNT - 5000179698×2
- Pad - 5000179574×1
- SCREW M5 X 16 - 5000179709×4
- Collar - 5000179529×4
- Washer - 5000179593×4
- Nut - 5000179588×4
- Pad - 5000179571×1
- Key - 5000179692×1
- SCREW M4 X 10,BLACK - 5000170914×2
- WASHER-SPRING - 5000179719×2
- Nut - 5000179715×2
- BOLT-FLANGE M6 X 14 - 5000179581×6
- Cover - 5000179556×1
- SCREW M4 X 10 - 5000170913×10
- BOLT M6 X 15 - 5000179714×3
- SCREW M5 X 30 - 5000179711×4
- Label - 5000179596×1
- Voltage regulator - 5200000235×1
- Cover - 5000179555×1
- Cable tie - 5000179697×10
- Cable tie - 5000179696×4
