G40 Generator 50Hz, LATAM, Premium

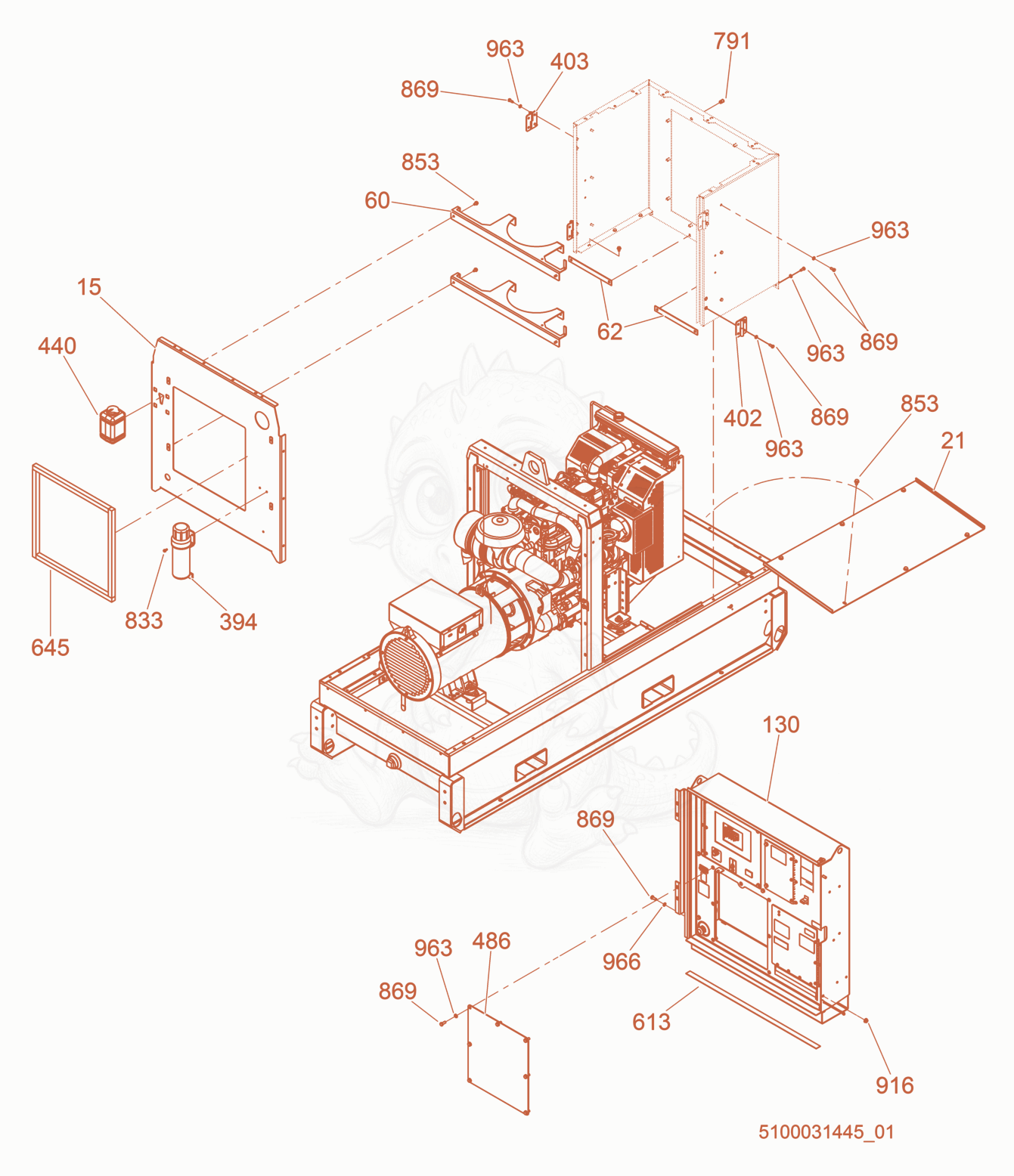

G40 Front Enclosure cpl. Diagram

Exploded parts diagram of the Front Enclosure cpl. of a Wacker Neuson G40, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 155200013720Not stocked
    Bulkhead panel×1
  • 605000160642
    $137.10
    BRACKET-MUFFLER MOUNT,MED. P-5000176420 - 5000160642×2
  • 625100022593
    $19.23
    SPACER-ENCL FRONT PANEL,SML P-5000112007 - 5100022593×2
  • 1305100029697Not stocked
    Control box cpl.×1
  • 3945200008089
    $15.03
    Holder-Manual,3.25 w/Molded Feet - 5200008089×1
  • 4025200014957Not stocked
    Hinge pin×2
  • 4035200014959Not stocked
    Hinge pin×2
  • 4405000165143
    $25.80
    BOTTLE-OVERFLOW - 5000165143×1
  • 4865100022062
    $76.81
    Cover-Receptacle Pnl,Blank P-5100021100 - 5100022062×1
  • 6135200011386Not stocked
    Gasket×1
  • 6275100033054Not stocked
    Insulator×2
  • 6455200011316Not stocked
    Insulator×4
  • 7915000085454
    $0.85
    INSERT M8,THREADED - 5000085454×6
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×3
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×10
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×19
  • 9205000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×25
  • 9665000160626
    $0.06
    WASHER-LOCK M8 INT.STAR SST - 5000160626×2
