G40 Generator 50Hz, LATAM, Premium

G40 Fuse Block / Relay Diagram

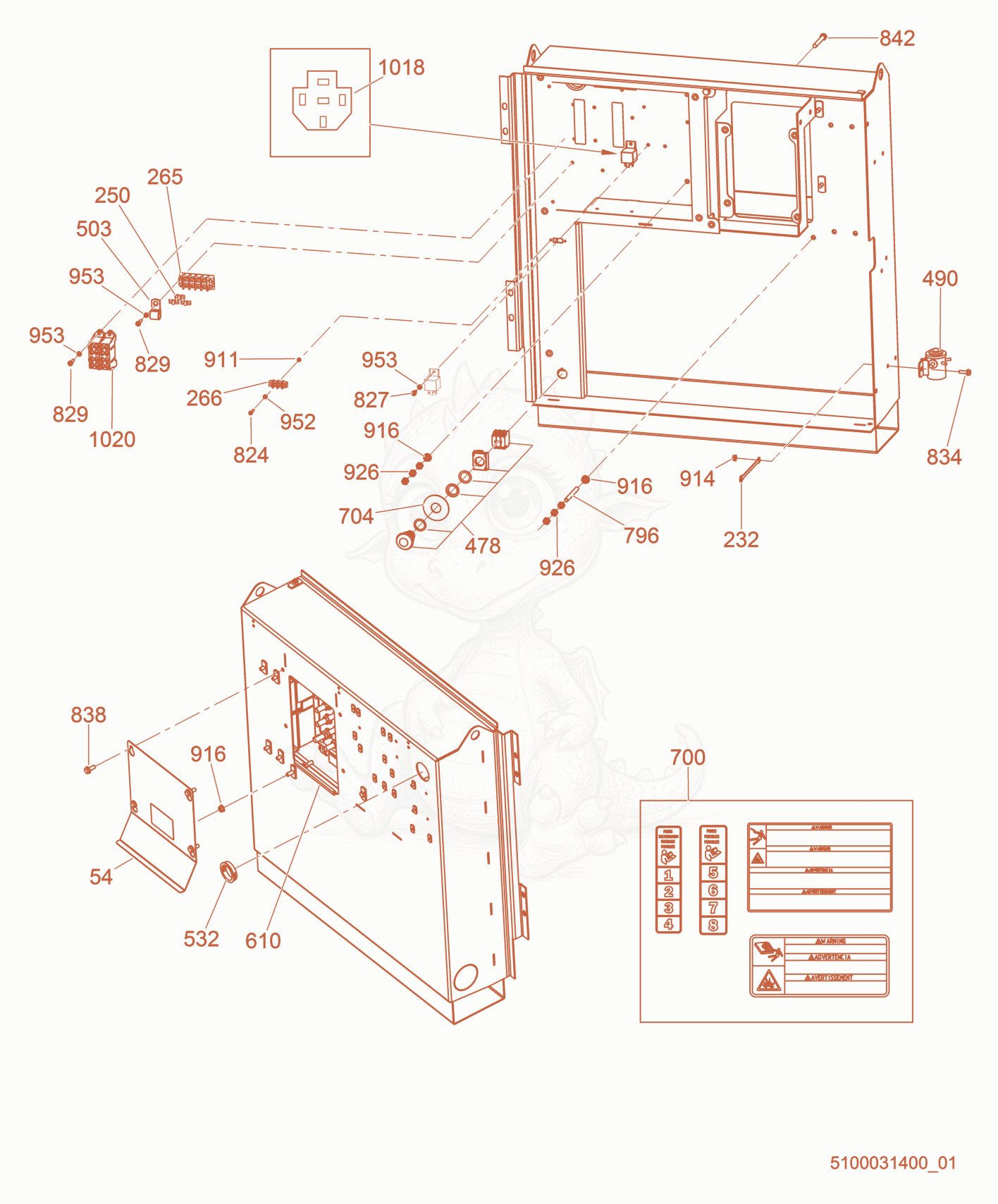

Exploded parts diagram of the Fuse Block / Relay of a Wacker Neuson G40, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 545200011288Not stocked
    Cover×1
  • 2325000160587
    $5.43
    WIRE-GROUND - 5000160587×1
  • 2505000158843
    $1.73
    TERMINAL-JUMPER - 5000158843×3
  • 2655000158844
    $7.32
    TERMINAL BLOCK 4 POS - 5000158844×1
  • 2665000159130
    $12.94
    BLOCK-TERMINAL,2 POSITION - 5000159130×1
  • 4785000165439
    $139.33
    SWITCH-E STOP ASSM,2P-NC,1P-NO - 5000165439×1
  • 4905000153226
    $76.73
    RELAY-65 AMP,12 VOLT - 5000153226×1
  • 5035000153746
    $1.14
    CLAMP-TUBING .625 - 5000153746×2
  • 5325000153092
    $0.73
    BUSHING 1-5/8 IN. I.D. - 5000153092×1
  • 6105100026373Not stocked
    Seal×1
  • 7005100014180
    $60.25
    Label-control panel - 5100014180×1
  • 7045000155460
    $148.82
    LABEL-EMERGENCY STOP - 5000155460×1
  • 8245000110951
    $0.03
    SCREW M4 X 20 PHIL HD - 5000110951×2
  • 8275000154515
    $0.03
    SCREW M5X12-4.8 PAN HD ZP - 5000154515×2
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×4
  • 8345000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×2
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×8
  • 8425000011450
    $0.32
    SCREW M8 X 60,HX.HD. - 5000011450×1
  • 9115000010370
    $0.03
    NUT-LOCK M4 HEX. - 5000010370×10
  • 9145000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×1
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×12
  • 9265000010882
    $0.05
    NUT M8 8,HEX - 5000010882×17
  • 9525000010628
    $0.02
    WASHER A4.3 FLAT - 5000010628×8
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×18
  • 10185200012171Not stocked
    Relay×2
  • 10205200019334Not stocked
    Fuse block×2
