G70-GENERATOR,CUSTOM

G70 Front Enclosure cpl. Diagram

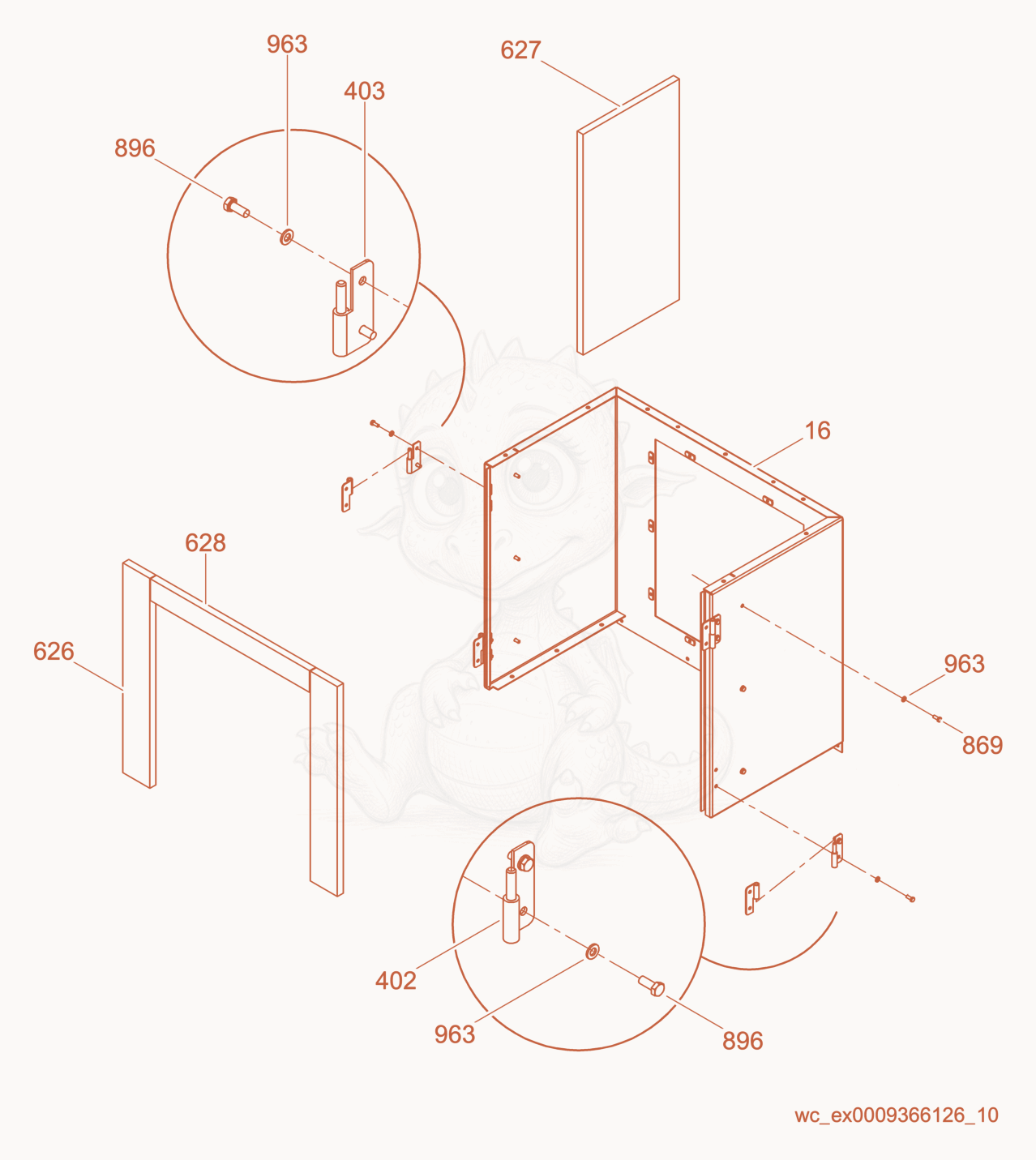

Exploded parts diagram of the Front Enclosure cpl. of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 165000159868
    $1,010.66
    PANEL-ENCL FRONT WLDMT,MED, P-500017767 - 5000159868×1
  • 4025000158848
    $31.55
    HINGE-DOOR,RIGHT SIDE - 5000158848×2
  • 4035000158847
    $50.05
    HINGE-DOOR,LEFT SIDE - 5000158847×2
  • 6265000164235
    $22.66
    INSULATOR-EXH.COMP,SIDE FRONT - 5000164235×2
  • 6275000164236
    $53.75
    INSULATOR-EXH.COMP,SIDE - 5000164236×2
  • 6285000164237
    $22.90
    INSULATOR-EXH.COMP,ABOVE DOOR - 5000164237×1
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×6
  • 8965000173783
    $0.37
    SCREW M8 X 35 HX HD,A2 304 - 5000173783×8
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×14
