G70-GENERATOR,CUSTOM

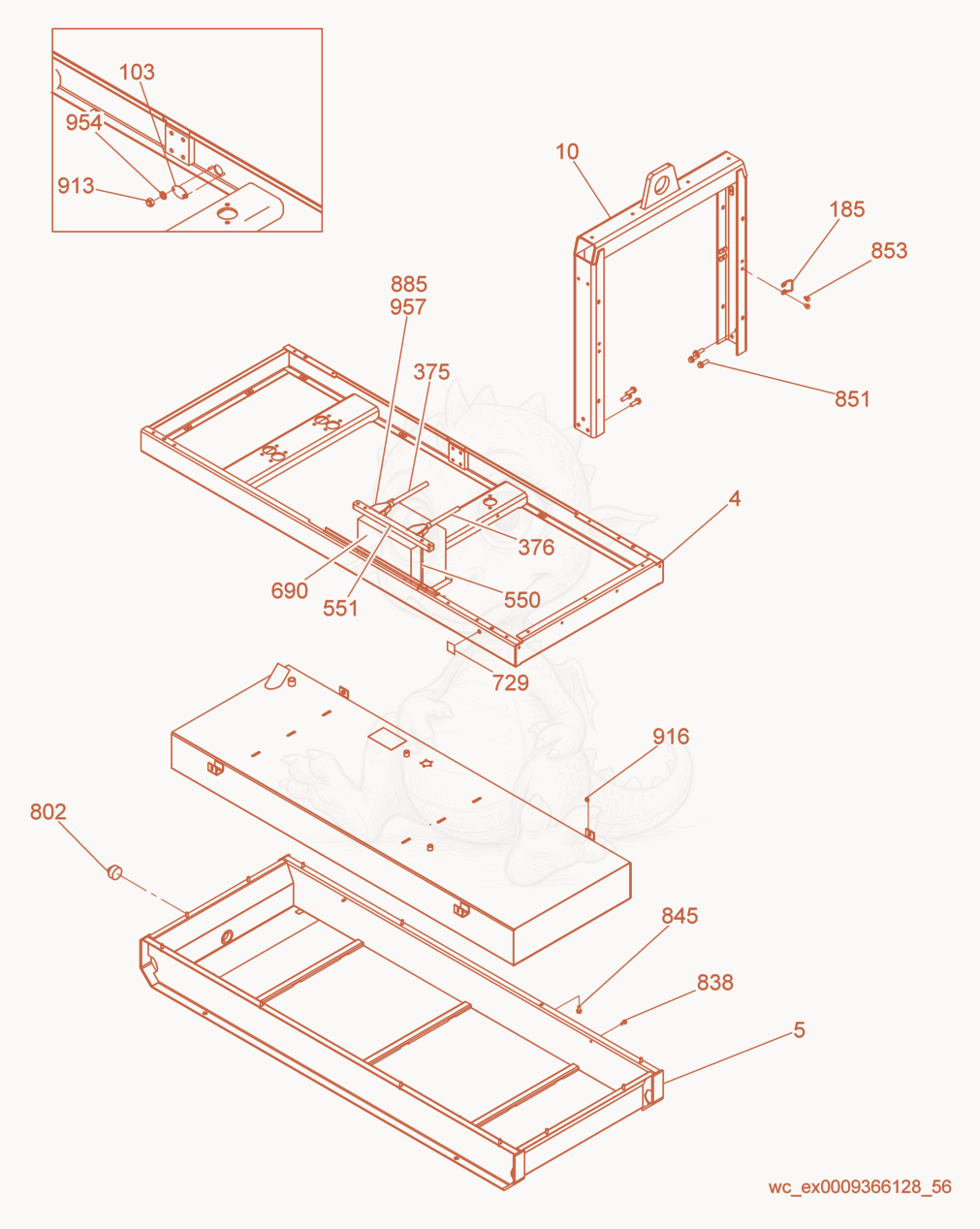

G70 Battery Diagram

Exploded parts diagram of the Battery of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000159054
    $2,659.33
    FRAME-SKID WELDMENT UPPER - 5000159054×1
  • 55000159041
    $1,086.10
    FRAME-SKID WLDMT LWR,MED P-5000176420 - 5000159041×1
  • 105000159812
    $1,529.37
    FRAME-LIFT STRUCT. WLD,MED P-5000176420 - 5000159812×1
  • 1035000158900
    $29.81
    PANEL-OIL DRAIN COVER,SKID P-5000176420 - 5000158900×1
  • 1855000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×4
  • 3755000176161
    $118.97
    CABLE-BATTERY,POSITIVE,38 - 5000176161×1
  • 3765000173088
    $59.75
    CABLE-BATTERY,NEGATIVE,38 - 5000173088×1
  • 5505000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×1
  • 5515000159046
    $45.69
    BRACKET-BATTERY HOLD DOWN - 5000159046×1
  • 6905000159808
    $312.09
    BATTERY-WET,GR31 - 5000159808×1
  • 7295000173396
    $19.23
    LABEL-GRAY - 5000173396×1
  • 8025000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×12
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×8
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
  • 8855000011318
    $0.45
    SCREW M10 X 40 HX.HD. - 5000011318×1
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 9575000010621
    $0.13
    WASHER B10.5 FLAT - 5000010621×1
